配置事件通知服务

在使用火山引擎机器学习平台(MLPlatform, MLP)进行 AI 开发过程中,常因以下原因导致任务异常:

  • 机器硬件故障
  • 任务长时间无响应
  • 资源碎片导致资源不足

用户无法实时感知任务失败、异常或排队等情况,事件无法及时处理。现支持通过集成 veFaaS(函数服务)与 SNS(消息通知服务),实现将 MLP 工作负载状态变化实时推送,解决告警滞后问题。

相关产品

除了 MLP 产品外,实现事件通知还需要下面组件/产品:

  • SNS:订阅 MLP 事件并触发 veFaaS 函数
  • veFaaS:处理 MLP 事件并格式化消息

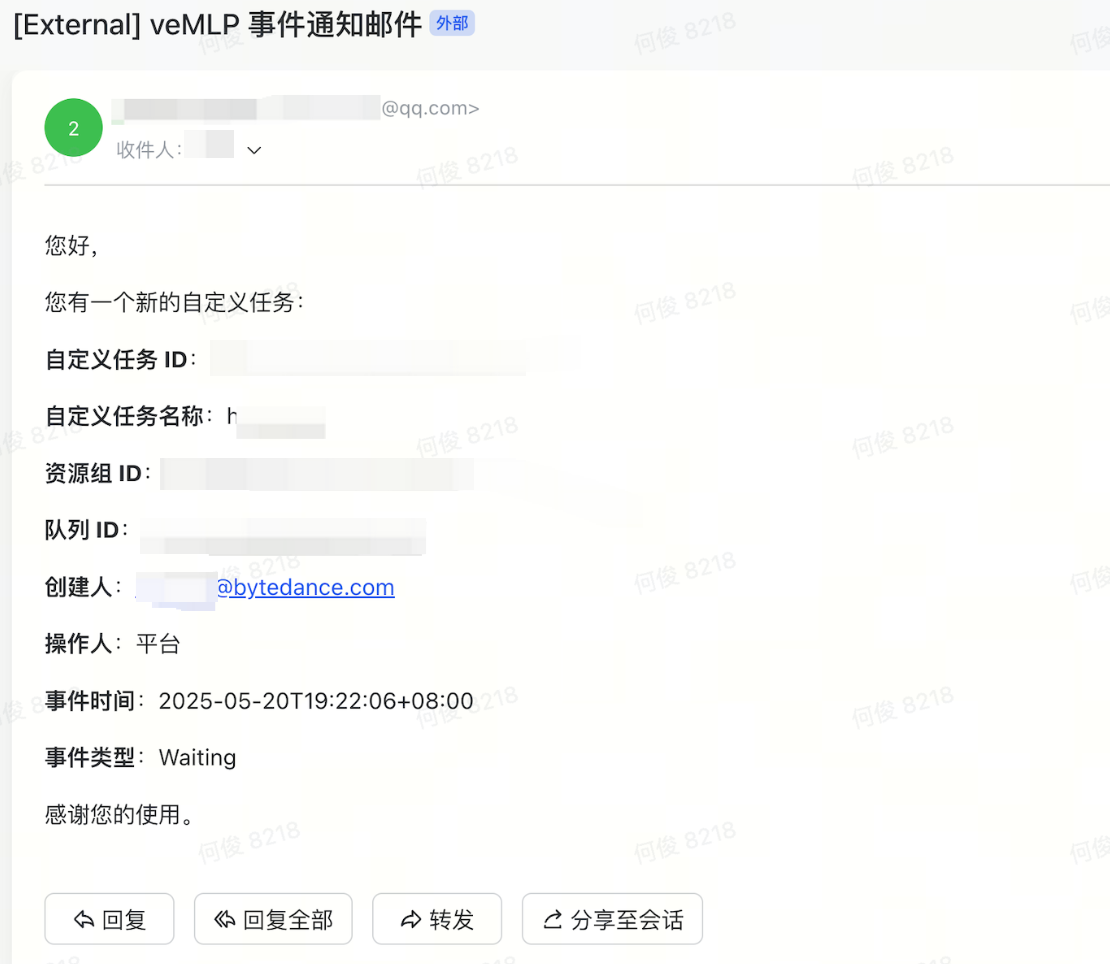

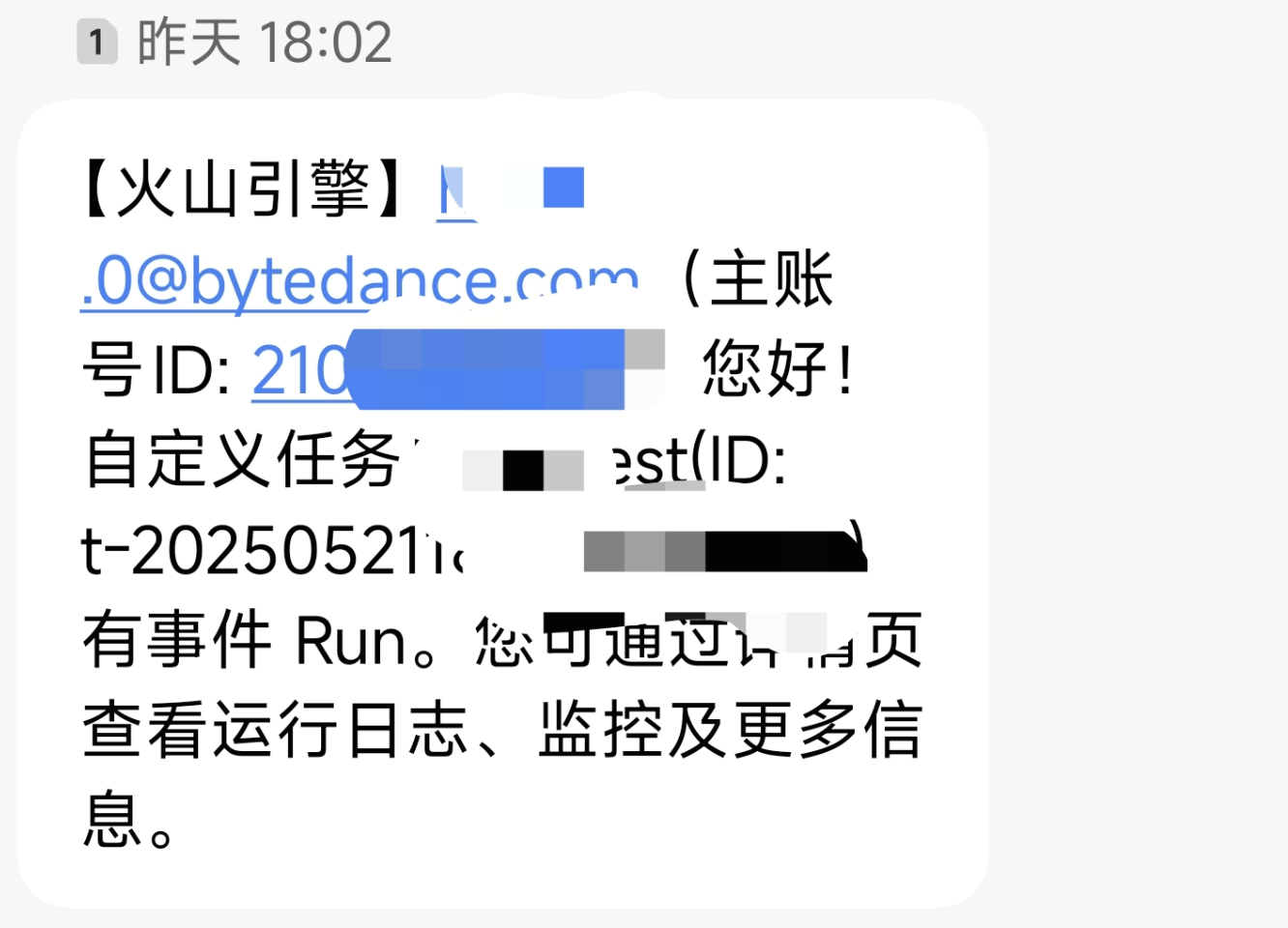

  • 飞书自定义机器人、短信、邮件等:接收并展示告警消息

veFaaS 配置

创建事件处理函数,便于后续 SNS 中配置。

创建事件函数

  1. 登录 veFaaS 控制台
  2. 在函数列表页点击 "创建函数"
  3. 选择 "事件函数" 类型
  4. 配置项说明:
    • 网络:启用私有网络(需配置可用子网)
    • 公网访问:启用函数访问公网
    • 日志功能:启用日志收集
    • 其他项:使用默认配置

配置函数代码

  1. 进入函数详情页,切换到 "代码" 标签页
  2. 新增 requirements.txt 文件,内容为:
volcengine-python-sdk
volcengine
  1. 点击 "安装依赖",等待依赖安装完成
  2. 覆盖 index.py 文件内容。
  3. 点击 "发布函数",完成代码部署。

开发机示例代码

参考文档获取飞书机器人 webhook 地址,格式如下,替换到代码中。
https://open.feishu.cn/open-apis/bot/v2/hook/xxxxxxxxxxxxxxxxx

import json
import requests
from typing import Dict
import volcenginesdkiam
import volcenginesdkcore

from volcengine.ApiInfo import ApiInfo
from volcengine.Credentials import Credentials
from volcengine.base.Service import Service
from volcengine.ServiceInfo import ServiceInfo

# --------------------------- 用户需要自行修改的部分 ---------------------------
AK = "您的AccessKey"               # 火山引擎API密钥
SK = "您的SecretKey"               # 火山引擎SecretKey
Region = "cn-beijing"               # 区域
RobotWebhook = "飞书机器人Webhook地址"  # 飞书机器人配置中获取的Webhook
# --------------------------- 用户需要自行修改的部分 ---------------------------

configuration = volcenginesdkcore.Configuration()
configuration.ak = AK
configuration.sk = SK
configuration.region = Region
configuration.client_side_validation = True
# set default configuration
volcenginesdkcore.Configuration.set_default(configuration)

# use global default configuration
api_instance = volcenginesdkiam.IAMApi()

type_color = {
    "Start": "blue",
    "Run": "blue",
    "Success": "green",
    "Fail": "red",
    "Stop": "yellow",
    "SuccessHolding": "green",
    "FailedHolding": "red",
}

event_name_map = {
    "CreateDevInstanceEvent": "创建开发机",
    "StartDevInstanceEvent": "启动开发机",
    "StopDevInstanceEvent": "停止开发机",
    "ForceShutdownEvent": "强制关机",
    "TriggerIdleDevInstanceEvent": "触发闲时关机",
    "DeleteDevInstanceEvent": "删除开发机",
    "RebootDevInstanceEvent": "重启开发机",
    "DevInstanceMachineFailureEvent": "节点故障",
    "DevInstanceMachineSuspiciousEvent": "节点疑似故障",
    "DevInstanceMachineRedeployEvent": "节点待下线",
    "DevInstanceUvmSpinLoopEvent": "节点 UVM 自旋循环",
    "CreateDevInstanceWorkerEvent": "创建开发机Worker",
    "FinishDevInstanceWorkerEvent": "完成开发机Worker",
    "DeleteDevInstanceWorkerEvent": "删除开发机Worker",
}

def get_card(
    sid,
    name,
    resource_group_id,
    resource_queue_id,
    creator_trn,
    event_time,
    message_event,
    event_category,
):
    return {
        "config": {"update_multi": True},
        "i18n_elements": {
            "zh_cn": [
                {
                    "tag": "column_set",
                    "horizontal_spacing": "8px",
                    "horizontal_align": "left",
                    "columns": [
                        {
                            "tag": "column",
                            "width": "weighted",
                            "elements": [
                                {
                                    "tag": "markdown",
                                    "content": f"**开发机**: {name}(ID: {sid})",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "card_outlined",
                                        "color": "grey",
                                    },
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**开发机所属资源组ID:**{resource_group_id}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "hot_outlined",
                                        "color": "grey",
                                    },
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**开发机所属队列ID:**{resource_queue_id}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "hot_outlined",
                                        "color": "grey",
                                    },
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**创建人TRN:**{creator_trn}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "member_outlined",
                                        "color": "grey",
                                    },
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**事件时间:** {event_time}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "time_outlined",
                                        "color": "grey",
                                    },
                                },
                            ],
                            "vertical_align": "top",
                            "vertical_spacing": "8px",
                            "weight": 2,
                        }
                    ],
                },
                {"tag": "hr"},
                {
                    "tag": "action",
                    "actions": [
                        {
                            "tag": "button",
                            "text": {"tag": "plain_text", "content": "查看详情"},
                            "url": f"https://console.volcengine.com/ml-platform/region:ml-platform+cn-beijing/devinstance/detail?InstanceId={sid}",
                            "type": "default",
                            "width": "default",
                            "size": "medium",
                            "icon": {
                                "tag": "standard_icon",
                                "token": "details_outlined",
                            },
                        }
                    ],
                },
                {"tag": "hr"},
            ]
        },
        "i18n_header": {
            "zh_cn": {
                "title": {
                    "tag": "plain_text",
                    "content": f"【火山引擎-机器学习平台】【{Region}】开发机 {sid} {event_name_map[message_event]}",
                },
                "subtitle": {"tag": "plain_text", "content": ""},
                "template": f"{event_category}",
            }
        },
    }

def handler(event, context):
    print(f"received new request, event content: {event}")

    records = event.get("data", {}).get("Records", [])
    for record in records:
        print(f"get record: {record}")
        message = json.loads(record.get("Sns", "{}").get("Message", "{}"))
        print(f"get message: {message}")
        if message.get("EventResourceType") == "DevInstance":
            event_resource_id = message.get("EventResourceID")
            message_event = message.get("EventType", "")
            event_time = message.get("EventTime")
            devinstance_detail = get_devinstance_detail(event_resource_id)
            creator_trn = devinstance_detail.creator_trn

            card = {
                "msg_type": "interactive",
                "card": get_card(
                    devinstance_detail.id,
                    devinstance_detail.name,
                    devinstance_detail.resource_group_id,
                    devinstance_detail.resource_queue_id,
                    creator_trn,
                    event_time,
                    message_event,
                    type_color.get(message_event, "gray"),
                ),
            }
            print(f"get card: {card}")
            res = requests.post(RobotWebhook, json=card)
            print(res)

    result = {"statusCode": 200, "headers": {"Content-Type": "application/json"}}
    return result

# ==================== MLP Client ====================

SERVICE_VERSION_V2 = "2024-07-01"

SERVICE_NAME = "ml_platform_stg"

service_info = ServiceInfo(
    "open.volcengineapi.com",
    {"Accept": "application/json"},
    Credentials(AK, SK, SERVICE_NAME, Region),
    60 * 5,
    60 * 5,
    "https",
)

api_info_v2 = {
    "GetDevInstance": ApiInfo(
        "POST",
        "/",
        {"Action": "GetDevInstance", "Version": SERVICE_VERSION_V2},
        {},
        {},
    ),
    "GetResourceQueue": ApiInfo(
        "POST",
        "/",
        {"Action": "GetResourceQueue", "Version": SERVICE_VERSION_V2},
        {},
        {},
    ),
}

class MLPClient(Service):
    def __init__(self) -> None:
        super(MLPClient, self).__init__(
            MLPClient.get_service_info(), MLPClient.get_api_info()
        )

    @staticmethod
    def get_service_info() -> ServiceInfo:
        return service_info

    @staticmethod
    def get_api_info() -> Dict[str, ApiInfo]:
        return api_info_v2

    def get_devinstance(self, instance_id: str) -> dict:
        res_str = self.json("GetDevInstance", [], json.dumps({"Id": instance_id}))
        res = json.loads(res_str)
        if not res.get("Result"):
            raise Exception(f"GetDevInstance failed, res: {res}")
        return res.get("Result")

    def get_resource_queue(self, resource_queue_id: str) -> dict:
        res_str = self.json(
            "GetResourceQueue", [], json.dumps({"Id": resource_queue_id})
        )
        res = json.loads(res_str)
        if not res.get("Result"):
            raise Exception(f"GetResourceQueue failed, res: {res}")
        return res.get("Result")

class DevInstanceDetail:
    id: str
    name: str
    resource_group_id: str
    resource_queue_id: str
    creator_trn: str

def get_devinstance_detail(eventResourceId: str) -> DevInstanceDetail:
    return get_devinstance_detail_by_devinstance_id(eventResourceId)

def get_devinstance_detail_by_devinstance_id(devinstance_id: str) -> DevInstanceDetail:
    client = MLPClient()
    res = client.get_devinstance(devinstance_id)
    detail = DevInstanceDetail()
    detail.id = devinstance_id
    detail.name = res.get("Name")
    detail.resource_queue_id = res.get("ResourceQueueId")
    detail.resource_group_id = client.get_resource_queue(detail.resource_queue_id).get(
        "ResourceGroupId"
    )
    detail.creator_trn = res.get("CreatorTrn")
    return detail

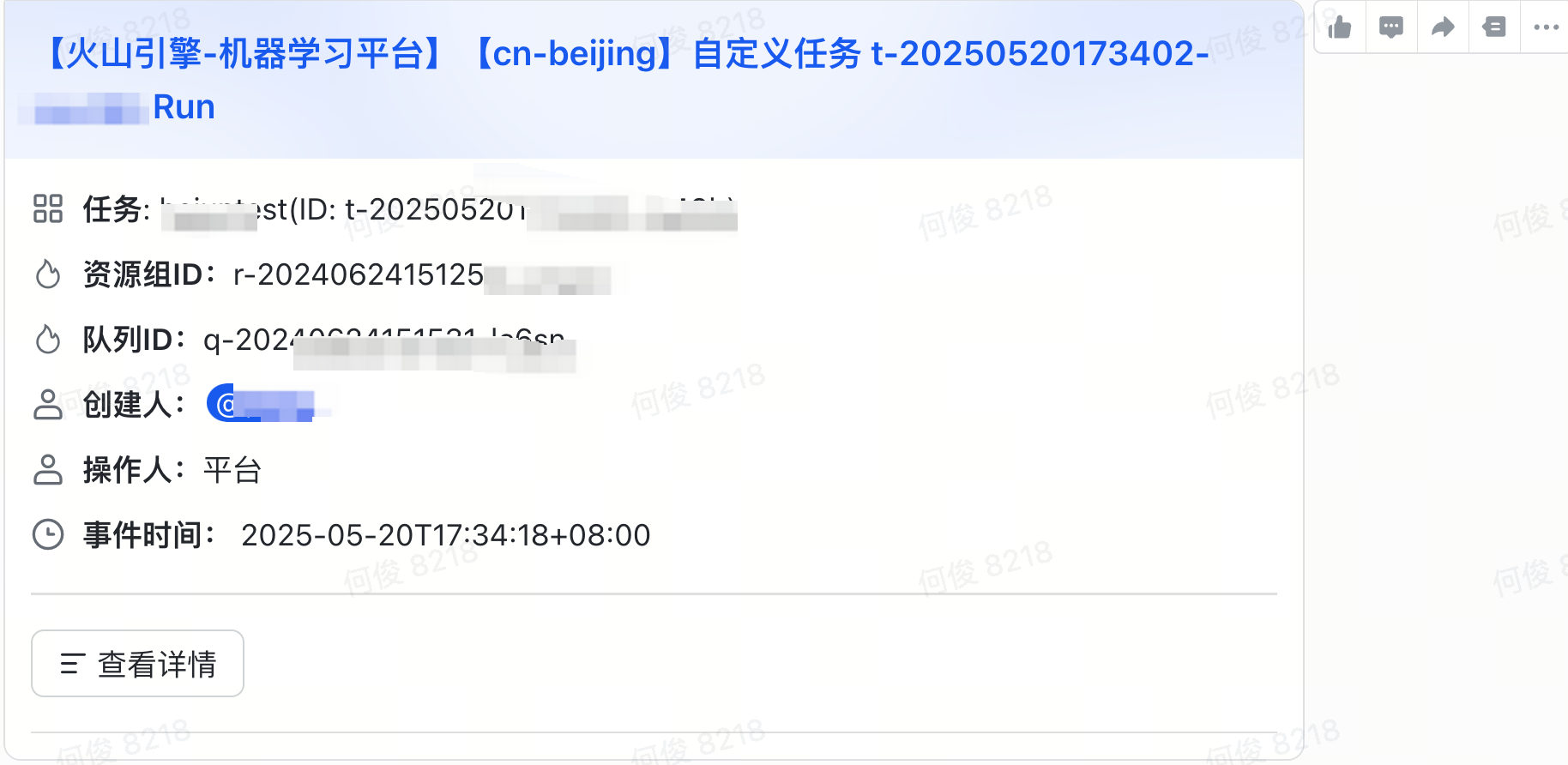

目前效果如图:

自定义任务示例代码

参考文档获取飞书机器人 webhook 地址,格式如下,替换到代码中。
https://open.feishu.cn/open-apis/bot/v2/hook/xxxxxxxxxxxxxxxxx

import json
import requests
import hashlib
import base64
import hmac
import time
import re
import volcenginesdkiam
import volcenginesdkcore

from volcenginesdkiam import GetUserResponse
from volcenginesdkcore.rest import ApiException

# --------------------------- 用户需要自行修改的部分 ---------------------------
AK = "您的AccessKey"               # 火山引擎API密钥
SK = "您的SecretKey"               # 火山引擎SecretKey
Region = "cn-beijing"               # 区域
RobotWebhook = "飞书机器人Webhook地址"  # 飞书机器人配置中获取的Webhook
# --------------------------- 用户需要自行修改的部分 ---------------------------

configuration = volcenginesdkcore.Configuration()
configuration.ak = AK
configuration.sk = SK
configuration.region = Region
configuration.client_side_validation = True
volcenginesdkcore.Configuration.set_default(configuration)

api_instance = volcenginesdkiam.IAMApi()

def is_email(email):
    """验证字符串是否为邮箱格式"""
    pattern = r'^[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+.[a-zA-Z]{2,}$'
    return bool(re.match(pattern, email))

def get_user_email(user_id: str):
    """根据用户ID获取邮箱地址"""
    if user_id is None or user_id == 0:
        return "主账号"
    try:
        resp = api_instance.get_user(volcenginesdkiam.GetUserRequest(id=user_id))
        email = _get_user_email(resp)
        return email if email else user_id
    except ApiException as e:
        print(f"获取用户邮箱失败: {e}")
        return user_id

def _get_user_email(resp: GetUserResponse):
    """从IAM响应中提取用户邮箱"""
    if is_email(resp.user.user_name):
        return resp.user.user_name
    if is_email(resp.user.user_email):
        return resp.user.user_email
    return None

# 事件类型对应的飞书卡片颜色
type_color = {
    "Start": "blue",
    "Run": "blue",
    "Success": "green",
    "Fail": "red",
    "Stop": "yellow",
    "SuccessHolding": "green",
    "FailedHolding": "red",
}

def get_card(
    custom_task_id,
    custom_task_name,
    resource_group_id,
    resource_queue_id,
    creator,
    operator,
    event_time,
    message_event,
    event_categray
):
    """生成飞书交互卡片内容"""
    return {
        "config": {"update_multi": True},
        "i18n_elements": {
            "zh_cn": [
                {
                    "tag": "column_set",
                    "horizontal_spacing": "8px",
                    "horizontal_align": "left",
                    "columns": [
                        {
                            "tag": "column",
                            "width": "weighted",
                            "elements": [
                                {
                                    "tag": "markdown",
                                    "content": f"**任务**: {custom_task_name}(ID: {custom_task_id})",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {"tag": "standard_icon", "token": "card_outlined", "color": "grey"}
                                },
                                {"tag": "markdown", "content": f"**资源组ID:**{resource_group_id}", "icon": {"token": "hot_outlined", "color": "grey"}},
                                {"tag": "markdown", "content": f"**队列ID:**{resource_queue_id}", "icon": {"token": "hot_outlined", "color": "grey"}},
                                {"tag": "markdown", "content": f"**创建人:**{creator}", "icon": {"token": "member_outlined", "color": "grey"}},
                                {"tag": "markdown", "content": f"**操作人:**{operator}", "icon": {"token": "member_outlined", "color": "grey"}},
                                {"tag": "markdown", "content": f"**事件时间:** {event_time}", "icon": {"token": "time_outlined", "color": "grey"}}
                            ],
                            "vertical_align": "top",
                            "vertical_spacing": "8px",
                            "weight": 2
                        }
                    ]
                },
                {"tag": "hr"},
                {
                    "tag": "action",
                    "actions": [
                        {
                            "tag": "button",
                            "text": {"tag": "plain_text", "content": "查看详情"},
                            "url": f"https://console.volcengine.com/ml-platform/region:ml-platform+cn-beijing/customTask/detail?Id={custom_task_id}",
                            "type": "default",
                            "icon": {"tag": "standard_icon", "token": "details_outlined"}
                        }
                    ]
                },
                {"tag": "hr"}
            ]
        },
        "i18n_header": {
            "zh_cn": {
                "title": {"tag": "plain_text", "content": f"【火山引擎-机器学习平台】【{Region}】自定义任务 {custom_task_id} {message_event}"},
                "subtitle": {"tag": "plain_text", "content": ""},
                "template": f"{event_categray}"
            }
        }
    }

def handler(event, context):
    """函数入口处理MLP事件"""
    print(f"收到新请求,事件内容: {event}")

    records = event.get('data', {}).get('Records', [])
    for record in records:
        print(f"处理记录: {record}")
        message = json.loads(record.get('Sns', '{}').get('Message', '{}'))
        print(f"解析消息: {message}")

        if message.get('EventResourceType') == 'CustomTask':
            custom_task_id = message.get('EventResourceID')
            message_event = message.get('EventType', '')[10:]  # 提取事件类型
            event_time = message.get('EventTime')

            # 提取任务详情
            custom_task = message.get('Detail', {}).get('New') or message.get('Detail', {}).get('Old')
            custom_task_name = custom_task.get('Name', '未知任务')
            resource_group_id = custom_task.get('ResourceGroupId', '未设置')
            resource_queue_id = custom_task.get('ResourceQueueId', '未设置')

            # 处理创建者信息
            creator_email = get_user_email(custom_task.get('CreatorUserId'))
            creator = f'<at email="{creator_email}"></at>' if is_email(creator_email) else creator_email

            # 处理操作人信息
            if message.get('EventTigerByUser'):
                operator_email = get_user_email(message.get('UserID'))
                operator = f'<at email="{operator_email}"></at>' if is_email(operator_email) else operator_email
            else:
                operator = "平台"

            # 生成飞书卡片
            card = {
                "msg_type": "interactive",
                "card": get_card(
                    custom_task_id,
                    custom_task_name,
                    resource_group_id,
                    resource_queue_id,
                    creator,
                    operator,
                    event_time,
                    message_event,
                    type_color.get(message_event, "grey")
                )
            }
            print(f"生成卡片: {card}")

            # 发送消息到飞书
            res = requests.post(RobotWebhook, json=card)
            print(f"发送结果: {res.status_code}, {res.text}")

    return {
        'statusCode': 200,
        'headers': {'Content-Type': 'application/json'}
    }

目前效果如图:

tip

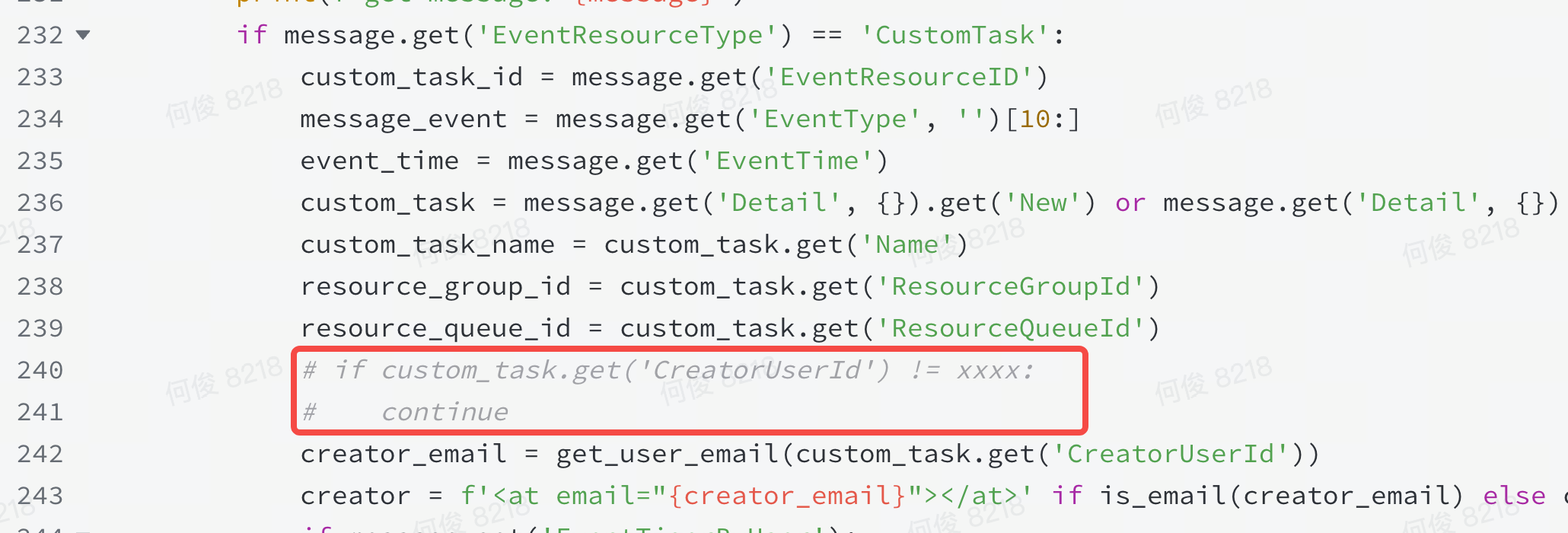

如果只关心自己创建的训练任务,以上代码可以稍作修改,例如取消红框里的两行注释,只处理自己的 ID 相关的训练任务,

在线服务示例代码

参考文档获取飞书机器人 webhook 地址,格式如下,替换到代码中。
https://open.feishu.cn/open-apis/bot/v2/hook/xxxxxxxxxxxxxxxxx

import json
import requests
import hashlib
import base64
import hmac
import time
import re
from typing import Dict
import volcenginesdkiam
import volcenginesdkcore

from volcenginesdkiam import GetUserResponse
from volcenginesdkcore.rest import ApiException

from volcengine.ApiInfo import ApiInfo
from volcengine.Credentials import Credentials
from volcengine.base.Service import Service
from volcengine.ServiceInfo import ServiceInfo

# --------------------------- 用户需要自行修改的部分 ---------------------------
AK = "您的AccessKey"               # 火山引擎API密钥
SK = "您的SecretKey"               # 火山引擎SecretKey
Region = "cn-beijing"               # 区域
RobotWebhook = "飞书机器人Webhook地址"  # 飞书机器人配置中获取的Webhook
# --------------------------- 用户需要自行修改的部分 ---------------------------

configuration = volcenginesdkcore.Configuration()
configuration.ak = AK
configuration.sk = SK
configuration.region = Region
configuration.client_side_validation = True
# set default configuration
volcenginesdkcore.Configuration.set_default(configuration)

type_color = {
    "Start" : "blue",
    "Run" : "blue",
    "Success" : "green",
    "Fail" : "red",
    "Stop" : "yellow",
    "SuccessHolding" : "green",
    "FailedHolding" : "red",
}

def get_card(
    id,
    service_id,
    service_name,
    resource_group_id,
    resource_queue_id,
    event_time,
    message_event,
    event_categray
):
    return {
        "config": {
            "update_multi": True
        },
        "i18n_elements": {
            "zh_cn": [
                {
                    "tag": "column_set",
                    "horizontal_spacing": "8px",
                    "horizontal_align": "left",
                    "columns": [
                        {
                            "tag": "column",
                            "width": "weighted",
                            "elements": [
                                {
                                    "tag": "markdown",
                                    "content": f"**服务**: {service_name}(ID: {service_id})",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "card_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**部署所属资源组ID:**{resource_group_id}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "hot_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**部署所属队列ID:**{resource_queue_id}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "hot_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**事件时间:** {event_time}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "time_outlined",
                                        "color": "grey"
                                    }
                                }
                            ],
                            "vertical_align": "top",
                            "vertical_spacing": "8px",
                            "weight": 2
                        }
                    ]
                },
                {
                    "tag": "hr"
                },
                {
                    "tag": "action",
                    "actions": [
                        {
                            "tag": "button",
                            "text": {
                                "tag": "plain_text",
                                "content": "查看详情"
                            },
                            "url": f"https://console.volcengine.com/ml-platform/region:ml-platform+cn-beijing/serviceNew/detail?id={service_id}",
                            "type": "default",
                            "width": "default",
                            "size": "medium",
                            "icon": {
                                "tag": "standard_icon",
                                "token": "details_outlined"
                            }
                        }
                    ]

                },
                {
                    "tag": "hr"
                }
            ]
        },
        "i18n_header": {
            "zh_cn": {
                "title": {
                    "tag": "plain_text",
                    "content": f"【火山引擎-机器学习平台】【{Region}】在线服务 {id} {message_event}"
                },
                "subtitle": {
                    "tag": "plain_text",
                    "content": ""
                },
                "template": f"{event_categray}"
            }
        }
    }

def handler(event, context):
    # Log incoming request.
    #
    # NOTE: the log here is only for debug purpose. It's recommended to delete those debug/info
    # logs and only print log where error occurs after your business logic is verified and ready to
    # go production, nor the log amount may be too huge.
    print(f"received new request, event content: {event}")

    records = event.get('data', {}).get('Records', [])
    for record in records:
        print(f"get record: {record}")
        message = json.loads(record.get('Sns', '{}').get('Message', '{}'))
        print(f"get message: {message}")
        if message.get('EventResourceType') == 'ServiceEvent':
            event_resource_id = message.get('EventResourceID')
            message_event = message.get('EventType', '')
            event_time = message.get('EventTime')
            inferenceDetail = get_inference_detail(message_event, event_resource_id)

        card = {
            "msg_type": "interactive",
            "card": get_card(
                inferenceDetail.id,
                inferenceDetail.service_id,
                inferenceDetail.service_name,
                inferenceDetail.resource_group_id,
                inferenceDetail.resource_queue_id,
                event_time,
                message_event,
                type_color.get(message_event, "gray")
            )
        }
        print(f"get card: {card}")
        res = requests.post(RobotWebhook, json=card)
        print(res)

    result = {
        'statusCode': 200,
        'headers': {
            'Content-Type': 'application/json'
        }
    }
    return result

SERVICE_VERSION_V1 = '2021-10-01'
SERVICE_VERSION_V2 = '2024-07-01'

service_info = ServiceInfo(
    'open.volcengineapi.com',
    {'Accept': 'application/json'},
    Credentials(AK, SK, 'ml_platform_stg', Region),
    60 * 5,
    60 * 5,
    "https"
)

api_info_v1 = {
    'GetDeployment': ApiInfo('POST', '/',{
        "Action": "GetDeployment", "Version": SERVICE_VERSION_V1}, {}, {}),
    'GetService': ApiInfo('POST', '/',{
        "Action": "GetService", "Version": SERVICE_VERSION_V1}, {}, {}),
}

api_info_v2 = {
    'GetDeployment': ApiInfo('POST', '/',{
        "Action": "GetDeployment", "Version": SERVICE_VERSION_V2}, {}, {}),
    'GetService': ApiInfo('POST', '/',{
        "Action": "GetService", "Version": SERVICE_VERSION_V2}, {}, {}),
    'GetResourceQueue': ApiInfo('POST', '/',{
        "Action": "GetResourceQueue", "Version": SERVICE_VERSION_V2}, {}, {}),
}

class MLPClientV1(Service):
    def __init__(self) -> None:
        super(MLPClientV1, self).__init__(MLPClientV1.get_service_info(), MLPClientV1.get_api_info())

    @staticmethod
    def get_service_info() -> ServiceInfo:
        return service_info

    @staticmethod
    def get_api_info() -> Dict[str, ApiInfo]:
        return api_info_v1

    def get_deployment(self, service_id: str, deployment_id: str) -> dict:
        res_str = self.json('GetDeployment', [],json.dumps({
            "DeploymentId": deployment_id,
            "ServiceId": service_id
        }))
        res = json.loads(res_str)
        if not res.get('Result'):
            raise Exception(f'GetDeployment failed, res: {res}')
        return res.get('Result')

    def get_service(self, service_id: str) -> dict:
        res_str = self.json('GetService', [],json.dumps({
            "ServiceID": service_id
        }))
        res = json.loads(res_str)
        if not res.get('Result'):
            raise Exception(f'GetService failed, res: {res}')
        return res.get('Result')


class MLPClientV2(Service):
    def __init__(self) -> None:
        super(MLPClientV2, self).__init__(MLPClientV2.get_service_info(), MLPClientV2.get_api_info())

    @staticmethod
    def get_service_info() -> ServiceInfo:
        return service_info

    @staticmethod
    def get_api_info() -> Dict[str, ApiInfo]:
        return api_info_v2

    def get_deployment(self, deployment_id: str) -> dict:
        res_str = self.json('GetDeployment', [],json.dumps({
            "Id": deployment_id
        }))
        res = json.loads(res_str)
        if not res.get('Result'):
            raise Exception(f'GetDeployment failed, res: {res}')
        return res.get('Result')

    def get_service(self, service_id: str) -> dict:
        res_str = self.json('GetService',[], json.dumps({
            "Id": service_id
        }))
        res = json.loads(res_str)

        if not res.get('Result'):
            raise Exception(f'GetService failed, res: {res}')
        return res.get('Result')

    def get_resource_queue(self, resource_queue_id: str) -> dict:
        res_str = self.json('GetResourceQueue', [], json.dumps({
            "Id": resource_queue_id
        }))
        res = json.loads(res_str)
        if not res.get('Result'):
            raise Exception(f'GetResourceQueue failed, res: {res}')
        return res.get('Result')

class InferenceDetail():
    id: str
    name: str
    resource_group_id: str
    resource_queue_id: str
    service_id: str
    service_name: str

def get_inference_detail(eventType: str, eventResourceId: str) -> InferenceDetail:
    if eventType.startswith('Deployment'):
        return get_inference_detail_by_deployment_id(eventResourceId)
    elif eventType.startswith('Service'):
        return get_inference_detail_by_service_id(eventResourceId)
    elif eventType.startswith('Instance'):
        return get_inference_detail_by_instance_id(eventResourceId)
    else:
        return None

def get_inference_detail_by_service_id(service_id: str) -> InferenceDetail:
    detail = InferenceDetail()
    detail.id = service_id
    if UseMultiRole:
        client = MLPClientV2()
        res = client.get_service(service_id)
        detail.name = res.get('Name')
        detail.service_id = service_id
        detail.service_name = res.get('Name')
    else:
        client = MLPClientV1()
        res = client.get_service(service_id)
        detail.name = res.get('ServiceName')
        detail.service_id = service_id
        detail.service_name = res.get('Name')
    return detail

def get_inference_detail_by_deployment_id(deployment_id: str) -> InferenceDetail:
    detail = InferenceDetail()
    detail.id = deployment_id
    detail.resource_type = 'Deployment'
    if UseMultiRole:
        clientv2 = MLPClientV2()
        res = clientv2.get_deployment(deployment_id)
        detail.name = res.get('Name')
        detail.resource_queue_id = res.get('ResourceQueueId')
        resource_group_id = clientv2.get_resource_queue(detail.resource_queue_id).get('ResourceGroupId')
        detail.resource_group_id = resource_group_id
        service_id = deployment_id[:22]
        service = clientv2.get_service(service_id)
        detail.service_id = service_id
        detail.service_name = service.get('Name')
    else:
        clientv1 = MLPClientV1()
        clientv2 = MLPClientV2()
        service_id = deployment_id[:22]
        res = clientv1.get_deployment(service_id, deployment_id)
        detail.name = res.get('Name')
        detail.resource_queue_id = res.get('ResourceQueueId')
        resource_group_id = clientv2.get_resource_queue(detail.resource_queue_id).get('ResourceGroupId')
        detail.resource_group_id = resource_group_id
        detail.service_id = service_id
        service_info = clientv1.get_service(service_id)
        detail.service_name = service_info.get('ServiceName')
    return detail

def get_inference_detail_by_instance_id(instance_id: str) -> InferenceDetail:
    detail = InferenceDetail()
    detail.id = instance_id
    detail.resource_type = 'Instance'
    if UseMultiRole:
        clientv2 = MLPClientV2()
        deployment_id = instance_id[:31]
        res = clientv2.get_deployment(deployment_id)
        detail.resource_queue_id = res.get('ResourceQueueId')
        resource_group_id = clientv2.get_resource_queue(detail.resource_queue_id).get('ResourceGroupId')
        detail.resource_group_id = resource_group_id
        service_id = deployment_id[:22]
        service = clientv2.get_service(service_id)
        detail.service_id = service_id
        detail.service_name = service.get('Name')
    else:
        clientv1 = MLPClientV1()
        clientv2 = MLPClientV2()
        service_id = instance_id[:22]
        deployment_id = instance_id[:28]
        res = clientv1.get_deployment(service_id, deployment_id)
        detail.resource_queue_id = res.get('ResourceQueueId')
        resource_group_id = clientv2.get_resource_queue(detail.resource_queue_id).get('ResourceGroupId')
        detail.resource_group_id = resource_group_id
        detail.service_id = service_id
        service_info = clientv1.get_service(service_id)
        detail.service_name = service_info.get('ServiceName')
    return detail

工作流示例代码

参考文档获取飞书机器人 webhook 地址,格式如下,替换到代码中。
https://open.feishu.cn/open-apis/bot/v2/hook/xxxxxxxxxxxxxxxxx

import os
import re
import json
import requests
import volcenginesdkiam
import volcenginesdkcore

from volcenginesdkiam import GetUserResponse
from volcenginesdkcore.rest import ApiException

# --------------------------- 用户需要自行修改的部分 ---------------------------
AK = "您的AccessKey"               # 火山引擎API密钥
SK = "您的SecretKey"               # 火山引擎SecretKey
Region = "cn-beijing"               # 区域
RobotWebhook = "飞书机器人Webhook地址"  # 飞书机器人配置中获取的Webhook
# --------------------------- 用户需要自行修改的部分 ---------------------------


# --- Dictionaries for Card Formatting (Unchanged) ---
type_color = {
    "CreatePipelineEvent": "green",
    "UpdatePipelineEvent": "green",
    "DeletePipelineEvent": "yellow",
    "PipelineInstanceInitializedEvent": "blue",
    "PipelineInstanceRunningEvent": "green",
    "PipelineInstanceSuccessEvent": "green",
    "PipelineInstanceFailedEvent": "red",
    "PipelineInstanceKillingEvent": "green",
    "PipelineInstanceKilledEvent": "yellow",
}

status_hint= {
    "CreatePipelineEvent": "创建成功",
    "UpdatePipelineEvent": "更新成功",
    "DeletePipelineEvent": "删除成功",
    "PipelineInstanceInitializedEvent": "初始化中",
    "PipelineInstanceRunningEvent": "运行中",
    "PipelineInstanceSuccessEvent": "运行成功",
    "PipelineInstanceFailedEvent": "运行失败",
    "PipelineInstanceKillingEvent": "停止中",
    "PipelineInstanceKilledEvent": "已停止"
}

# --- Helper Functions for User Info and Card Generation (Unchanged) ---
def is_email(email):
    # Defines the regular expression for an email
    pattern = r'^[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+.[a-zA-Z]{2,}$'
    # Match using the regular expression
    if re.match(pattern, str(email)):
        return True
    else:
        return False

def _get_user_email(resp: GetUserResponse):
    if is_email(resp.user.user_name):
        return resp.user.user_name
    if is_email(resp.user.user_email):
        return resp.user.user_email
    return None

def get_pipeline_card(
    region,
    pipeline_id,
    pipeline_name,
    creator,
    operator,
    event_time,
    event_type,
    event_service,
    event_template
):
    return {
        "config": {
            "update_multi": True
        },
        "i18n_elements": {
            "zh_cn": [
                {
                    "tag": "column_set",
                    "horizontal_spacing": "8px",
                    "horizontal_align": "left",
                    "columns": [
                        {
                            "tag": "column",
                            "width": "weighted",
                            "elements": [
                                {
                                    "tag": "markdown",
                                    "content": f"**工作流**: {pipeline_name}(ID: {pipeline_id})",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "card_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**创建人:**{creator}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "member_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**操作人:**{operator}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "member_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**事件时间:** {event_time}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "time_outlined",
                                        "color": "grey"
                                    }
                                }
                            ],
                            "vertical_align": "top",
                            "vertical_spacing": "8px",
                            "weight": 2
                        }
                    ]
                },
                {
                    "tag": "hr"
                },
                {
                    "tag": "action",
                    "actions": [
                        {
                            "tag": "button",
                            "text": {
                                "tag": "plain_text",
                                "content": "查看详情"
                            },
                            "url": f"https://console.volcengine.com/{event_service.replace('_', '-')}/region:{event_service.replace('_', '-')}+{region}/pipeline/detail/{pipeline_id}",
                            "type": "default",
                            "width": "default",
                            "size": "medium",
                            "icon": {
                                "tag": "standard_icon",
                                "token": "details_outlined"
                            }
                        }
                    ]

                },
                {
                    "tag": "hr"
                }
            ]
        },
        "i18n_header": {
            "zh_cn": {
                "title": {
                    "tag": "plain_text",
                    "content": f"【火山引擎-机器学习平台】【{region}】 工作流 {pipeline_id} {status_hint.get(event_type)}"
                },
                "subtitle": {
                    "tag": "plain_text",
                    "content": ""
                },
                "template": f"{event_template}"
            }
        }
    }

def get_pipeline_instance_card(
        region,
        pipeline_instance_id,
        pipeline_instance_name,
        pipeline_id,
        parent_pipeline_instance_id,
        creator,
        operator,
        event_time,
        event_type,
        event_service,
        event_template
):
    return {
        "config": {
            "update_multi": True
        },
        "i18n_elements": {
            "zh_cn": [
                {
                    "tag": "column_set",
                    "horizontal_spacing": "8px",
                    "horizontal_align": "left",
                    "columns": [
                        {
                            "tag": "column",
                            "width": "weighted",
                            "elements": [
                                {
                                    "tag": "markdown",
                                    "content": f"**工作流**: {pipeline_id}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "card_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**工作流实例**: {pipeline_instance_name}(ID: {pipeline_instance_id})",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "card_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**是否重试**: {'是' if parent_pipeline_instance_id is not None else '否'}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "card_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**创建人:**{creator}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "member_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**操作人:**{operator}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "member_outlined",
                                        "color": "grey"
                                    }
                                },
                                {
                                    "tag": "markdown",
                                    "content": f"**事件时间:** {event_time}",
                                    "text_align": "left",
                                    "text_size": "normal",
                                    "icon": {
                                        "tag": "standard_icon",
                                        "token": "time_outlined",
                                        "color": "grey"
                                    }
                                }
                            ],
                            "vertical_align": "top",
                            "vertical_spacing": "8px",
                            "weight": 2
                        }
                    ]
                },
                {
                    "tag": "hr"
                },
                {
                    "tag": "action",
                    "actions": [
                        {
                            "tag": "button",
                            "text": {
                                "tag": "plain_text",
                                "content": "查看详情"
                            },
                            "url": f"https://console.volcengine.com/{event_service.replace('_', '-')}/region:{event_service.replace('_', '-')}+{region}/pipeline/detail/{pipeline_id}?activeBar=operationRecord&selectedId={pipeline_instance_id}",
                            "type": "default",
                            "width": "default",
                            "size": "medium",
                            "icon": {
                                "tag": "standard_icon",
                                "token": "details_outlined"
                            }
                        }
                    ]

                }
            ]
        },
        "i18n_header": {
            "zh_cn": {
                "title": {
                    "tag": "plain_text",
                    "content": f"【火山引擎-机器学习平台】【{region}】 工作流实例 {pipeline_instance_id} {status_hint.get(event_type)}"
                },
                "subtitle": {
                    "tag": "plain_text",
                    "content": ""
                },
                "template": f"{event_template}"
            }
        }
    }

# --- Simplified Class for Lark (Feishu) Notifications Only ---
class PipelineEvent:
    def __init__(self, region, webhook):
        self.region = region
        self.webhook = webhook

        # Configure and initialize the IAM client to get user details
        configuration = volcenginesdkcore.Configuration()
        configuration.ak = AK
        configuration.sk = SK
        configuration.region = region
        configuration.client_side_validation = True
        volcenginesdkcore.Configuration.set_default(configuration)
        self.iam_client = volcenginesdkiam.IAMApi()

    def get_user_email(self, user_id: str):
        if user_id is None:
            return user_id
        # In Volcengine, UserID 0 represents the root account
        if user_id == '0' or user_id == 0:
            return "主账号"
        try:
            resp = self.iam_client.get_user(
                volcenginesdkiam.GetUserRequest(
                    # The SDK might expect the ID as a string
                    user_name=str(user_id),
                ))
            email = _get_user_email(resp)
            return email if email else str(user_id)
        except ApiException as e:
            print(f"Exception when calling IAMApi->get_user for UserID '{user_id}': {e}
")
            return str(user_id)

    def send_webhook(self, card):
        try:
            print(f"Sending card to Lark: {json.dumps(card, indent=2)}")
            result = requests.post(self.webhook, json=card)
            result.raise_for_status() # Raise an exception for bad status codes (4xx or 5xx)
            print(f"Lark API response: {result.status_code} {result.text}")
        except Exception as e:
            print(f"Failed to send webhook: {str(e)}")

    def handle(self, msg: dict):
        resource_id = msg.get('EventResourceID') # pipeline id or pipeline instance id
        event_type = msg.get('EventType')
        event_time = msg.get('EventTime')
        event_service = msg.get('EventService')
        resource_type = msg.get('EventResourceType')

        operator = "平台"
        operator_email = None
        if msg.get('EventTigerByUser'):
            operator_email = self.get_user_email(msg.get('UserID'))
            # Format for Lark @mention if it's a valid email
            operator = f'<at email="{operator_email}"></at>' if is_email(operator_email) else operator_email

        extra_info = json.loads(msg.get('Detail', {}).get('Message', '{}'))
        creator_email = self.get_user_email(extra_info.get('OwnerId'))
        # Format for Lark @mention if it's a valid email
        creator = f'<at email="{creator_email}"></at>' if is_email(creator_email) else creator_email

        card = {}
        if resource_type == 'Pipeline':
            pipeline_name = extra_info.get('PipelineName')
            card = {
                "msg_type": "interactive",
                "card": get_pipeline_card(
                    self.region,
                    resource_id,
                    pipeline_name,
                    creator,
                    operator,
                    event_time,
                    event_type,
                    event_service,
                    type_color.get(event_type, "grey")
                )
            }

        elif resource_type == 'PipelineInstance':
            pipeline_instance_name = extra_info.get('PipelineInstanceName')
            pipeline_id = extra_info.get('PipelineId')
            parent_pipeline_instance_id = extra_info.get("ParentPipelineInstanceId")
            card = {
                "msg_type": "interactive",
                "card": get_pipeline_instance_card(
                    self.region,
                    resource_id,
                    pipeline_instance_name,
                    pipeline_id,
                    parent_pipeline_instance_id,
                    creator,
                    operator,
                    event_time,
                    event_type,
                    event_service,
                    type_color.get(event_type, "grey")
                )
            }

        else:
            print(f"Unsupported resource type: {resource_type}. Skipping.")
            return

        # Only send the webhook now
        self.send_webhook(card)

# --- Instantiation and Handler Function ---

# Initialize the event handler with only the region and webhook URL
pipeline_event = PipelineEvent(
    region=Region,
    webhook=RobotWebhook
)

def handler(event, context):
    print(f"received new request, event content: {event}")

    records = event.get('data', {}).get('Records', [])
    for record in records:
        print(f"get record: {record}")
        try:
            message = json.loads(record.get('Sns', {}).get('Message', '{}'))
            if not message: # Skip if message is empty
                print("Skipping empty message.")
                continue
            print(f"get message: {message}")
            pipeline_event.handle(message)
        except json.JSONDecodeError as e:
            print(f"Error decoding message JSON: {e}")
        except Exception as e:
            print(f"An unexpected error occurred while processing a record: {e}")

    result = {
        'statusCode': 200,
        'headers': {
            'Content-Type': 'application/json'
        },
        'body': json.dumps({'message': 'Processing complete'})
    }
    return result

SNS 配置

通过消息通知服务(SNS),订阅和消费 MLP 产生的结构化消息(JSON 格式)

开通服务

当前 SNS 服务需要申请白名单权限,申请方式:

  1. 登录 火山引擎工单系统
  2. 提交工单说明需要开通 SNS 服务访问权限

创建主题

  1. 访问 SNS 控制台
  2. 在 "主题管理" 页面点击 "创建主题"
  3. 勾选 ml_platform

创建订阅

  1. 在 "订阅列表"中选择 "创建订阅"
  2. 配置项说明:
    • 订阅主题:选择上一步创建的主题
    • 推送类型:选择 veFaaS
    • 接收端地址:选择已创建的 veFaaS 函数(格式为 函数名称:函数ID)
    • 其他项:使用默认配置

创建云服务事件订阅

  1. 在 "云服务事件订阅" 页面点击 "创建事件订阅"
  2. 配置项说明:
    • 产品服务:选择 ml_platform
    • 事件类型:
      • 开发机负载事件:包含 dev 关键词
      • 自定义任务负载事件:包含 Customtask 关键词
    • 主题 TRN:选择创建的主题唯一标识

使用限制
  • 支持区域:华北2(cn-beijing)、华北3(cn-beijing2)、华东2(cn-shanghai)
  • 支持负载类型:开发机、自定义任务、在线推理服务
  • 飞书机器人限制:
    • 消息必须包含配置的关键词 【火山引擎 - 机器学习平台】
    • 机器人每分钟发送消息上限为 20 条

附:支持的通知事件类型

负载类型

通知事件

开发机

创建开发机

创建远程开发机

启动开发机

关闭开发机

低利用率即将关机

闲时即将关机

强制关机

重启开发机

删除开发机

删除远程开发机

远程开发机运行完成

机器故障

自定义任务

创建自定义任务

自定义任务等待中

自定义任务排队中

自定义任务部署中

自定义任务运行中

自定义任务失败

自定义任务完成

自定义任务失败并进入保留阶段

自定义任务完成并进入保留阶段

自定义任务停止

自定义任务取消

自定义任务重试

自定义任务重试结束

自定义任务优先级调整

自定义任务机器故障

自定义任务低利用率停止

在线服务

在线服务异常

在线服务停止

在线服务部署异常

在线服务部署停止

在线服务部署部署中

在线服务部署运行中

在线服务部署扩缩容已完成

在线服务实例异常

工作流

运行失败

工作流终止

工作流运行完成

工作流运行中

创建成功

工作流配置更新

Last updated: 2026.01.06 10:52:20
