Quickly create a dashboard using a preset template
Copy pageDownload PDFQuickly create a dashboard using a preset template
The dashboard is one of the visualization features provided by TLS, serving as a collection of charts for log data analysis and monitoring. You can view multiple query and analysis charts from the same project in the dashboard.
TLS supports creating dashboards such as JuiceFS, VPC, CDN, ALB, APIG, VKE , CLB, Nginx, Trace based on preset templates. This topic describes the steps to quickly create a dashboard using a preset template.
Notice
This example shows how to create a dashboard in dashboard list page. You can also save query and analysis results as a new dashboard after performing log query and analysis. For details, see Add charts to dashboard.
Prerequisites
- You have created a project and log topic, and successfully imported log data.
- The index has been configured. For details, see Configure index.
Notice
- Each project supports creating up to 50 dashboards.
- Each dashboard supports up to 50 statistical charts.
Create a dashboard using a preset template.
Preset dashboards require the log topic to have the corresponding fields, with Key-value index and statistical analysis enabled. Charts lacking these fields will not be displayed; for field details, see Log field description for preset dashboard.
- Log in to TLS console.
- Select the region where log service is located from the top navigation bar.
- In the left navigation bar, select Common functions > Dashboard.

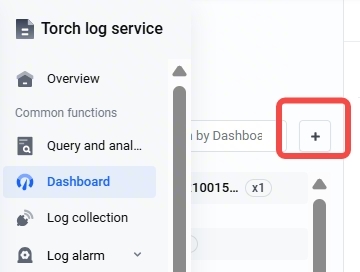

- In the dashboard list, click +.
-
- In Create from preset template, click the preset template name.
- Cloud servicesTemplate nameDescriptionTraceTrace call chain analysisThe OpenTelemetry Trace call chain analysis dashboard includes metrics such as user address, span type, span name, uploaded link name, span ID, Trace ID, and more.Notice
- This feature is in closed beta. If you have relevant business needs, you can contact your account manager to enable the allowlist.
- Only supported in East China 2 (Shanghai).
JuiceFSAccess log analysis overviewThe JuiceFS access log analysis overview displays metrics such as user ID, group ID, process ID, operation type, file inode number, data write length, searched file name, file handle, file permissions, and type information.Access log analysis detailsThe JuiceFS access log analysis details display metrics including user ID, group ID, process ID, operation type, file inode number, data write length, searched file name, file handle, file permissions, and type information.veadkveadk observabilityStatistical analysis builds observation data for AI applications using VolcanoEngine Intelligent Agent Development Framework (VeADK), including context, model, tool, memory, knowledge base analysis, and call chain analysis.WAFWAF overviewAnalyzes and displays WAF web attack log metrics, including attack type distribution, attack source distribution, request count trends, and other indicators.VPCVPC flow logsAnalyzes and displays Action details in VPC flow logs, including source address, destination address, IANA protocol number, number of transmitted packets, bytes transmitted, associated operations, log recording status, and other metrics.CLBCLB monitoring centerAnalyzes and displays real-time monitoring data for traditional load balancer CLB instances, including page views, request success rate, average latency, status distribution, traffic, P50 latency, P99 latency, top request hosts, and top failure rate hosts.CLB access overviewAnalyzes and displays the overall access status of traditional load balancer CLB instances, including PV and UV comparison with the previous day, PV and UV distribution, today's PV, seven-day PV, today's UV, seven-day UV, and top 10 visiting provinces.CLB second-level metric monitoringAnalyzes and displays monitoring metrics for traditional load balancing CLB instances, including QPS, access latency, upstream latency, success rate, request traffic, returned body traffic, error status codes, upstream error status codes, and other metrics.CDNCDN error analysisAnalyze and display CDN-related error metrics, including distributions of 4xx and 5xx errors by domain, URI, province, and ISP.ALBALB second-level metric monitoringAnalyzes and displays second-level monitoring metrics for ALB instances, including QPS, access latency, upstream latency, success rate, request traffic, returned body traffic, 2xx/3xx status codes, and error status codes.ALB access overviewAnalyze and display the overall access status of ALB instances, including PV compared with yesterday, PV compared with last week, UV compared with yesterday, UV compared with last week, PV distribution, UV distribution, today's visit PV, 7-day visit PV, top 10 provinces by visits, and proportion of mobile clients.ALB monitoring centerAnalyzes and presents ALB real-time monitoring data, including metrics such as access PV, request success rate, average latency, number of 4xx requests, status distribution, traffic, P50 latency, P90 latency, P99 latency, top request hosts, top latency hosts, and top failure rate hosts.APIGAPIG access logging monitoring centerAnalyzes and displays API Gateway access log metrics, including PV distribution, UV distribution, top latency, and top APIs.VKEPod event centerDisplays event information throughout the entire lifecycle of a Pod, allowing you to filter important Pod events by event level. View event details, such as event level, event source, and event type.NginxNginx access dashboardAnalyzes Nginx end user access behavior, including metrics such as PV, UV, and request location distribution.Nginx monitoring dashboardAnalyzes Nginx current operating status, including request success rate, status code distribution, and request latency.
- Configure dashboard information and then click Create dashboard.
- ConfigurationDescriptionDashboard nameSet the name of the dashboardDescriptionEnter a brief description for the dashboard.Log projectSelect the project for the dashboard.Log topicBind the log topic to the dashboard.Field validationThe index fields of target log topic are automatically matched based on the names of preset fields. If problems exist, for example, fields are missing, types are different, or statistics are not enabled in the target log topic, you need to replace the fields.
Next steps
