AgentPilot OpenAPI 使用指南

环境变量配置

配置 API_KEY 和 API_URL ：请正确配置 API_KEY 和 API_URL，确保 API 请求的正常发送与接收。

Workspace ID 获取与配置：当前版本暂时支持从环境变量配置 workspace id ，接口暂不支持每次调用单独指定。获取方式为在 PromptPilot 页面切换到某个个人或团队空间后，从顶部 URL 截取 "workspaceId=" 之后的内容，即为当前 workspace_id。后续预计会更新 SDK，支持通过参数传入 workspace id 。

export AGENTPILOT_API_URL=https://prompt-pilot.cn-beijing.volces.com​
export AGENTPILOT_API_KEY=<YOUR API KEY FROM PROMPTPILOT CONSOLE>​
export AGENTPILOT_WORKSPACE_ID=<YOUR WORKSPACE ID FROM PROMPTPILOT CONSOLE>​

Task 和 Prompt 管理

创建任务

创建任务后，可登录 PromptPilot Console 页面，在任务管理中查看最新创建的任务。

创建文本理解任务

所有 model_name 查看 ../../model/model-list.md ，成功后将看到创建后的任务信息和 Prompt 版本信息。

# Create a new task of text understanding​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=CreateTask" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_category": "DEFAULT",​
    "task_name": "test_text_task",​
    "messages": [​
        {​
            "role": "user",​
            "content": "这是一个文本理解任务的prompt，它有{{variable_1}}和{{variable_2}}"​
        }​
    ],​
    "model_name": "doubao-seed-1.6-250615",​
    "criteria": "这是一个文本理解任务的评分标准，5分制，1分表示完全错误，5分表示完全正确"​
}'​

如果成功，你将看到创建后的任务信息和Prompt版本信息

{"Result":{"success":true,"prompt_version":{"prompt_version_id":"prv-20250905104255-nafnT","task_id":"ta-20250905104255-r8u5s","version":"v1","messages":[{"content":[{"text":"这是一个文本理解任务的prompt，它有{{variable_1}}和{{variable_2}}","type":"text"}],"role":"user"}],"variables_name":["variable_1","variable_2"],"variables_types":null,"model_name":"doubao-seed-1.6-250615","temperature":1.0,"top_p":0.7,"eval_dimension":"这是一个文本理解任务的评分标准，5分制，1分表示完全错误，5分表示完全正确","created_at":"2025-08-28T14:58:56.938785","updated_at":"2025-08-28T14:58:56.938811"}},"Error":null}​

创建视觉理解任务

# Create a new task of visual understanding​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=CreateTask" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_category": "MULTIMODAL",​
    "task_name": "test_visual_task",​
    "messages": [​
        {​
            "role": "user",​
            "content": "根据文字 {{text_var}} 和配图 {{image_var}}，写一个小故事。"​
        }​
    ],​
    "variables_types": {​
        "text_var": "text",​
        "image_var": "image_url"​
    },​
    "model_name": "doubao-seed-1.6-250615",​
    "criteria": "这是一个视觉理解任务的评分标准，5分制，1分表示完全错误，5分表示完全正确"​
}'​

如果成功，你将看到创建后的任务信息和Prompt版本信息

{"Result":{"success":true,"prompt_version":{"prompt_version_id":"prv-20250905104357-mV3yD","task_id":"ta-20250905104357-uDfgL","version":"v1","messages":[{"role":"user","content":[{"type":"text","text":"根据文字 {{text_var}} 和配图 "},{"type":"image_url","image_url":{"url":"{{image_var}}"}},{"type":"text","text":"，写一个小故事。"}]}],"variables_name":["text_var","image_var"],"variables_types":{"text_var":"text","image_var":"image"},"model_name":"doubao-seed-1.6-250615","temperature":1.0,"top_p":0.7,"eval_dimension":"这是一个视觉理解任务的评分标准，5分制，1分表示完全错误，5分表示完全正确","created_at":"2025-08-28T15:01:32.633732","updated_at":"2025-08-28T15:01:32.633755"}},"Error":null}​

创建多轮对话任务

# Create a new task of dialog​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=CreateTask" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_category": "DIALOG",​
    "task_name": "test_dialog_task",​
    "messages": [​
        {​
            "role": "system",​
            "content": "你是一个MBTI人格分析大师，负责根据用户提供的个人信息分析用户的MBTI人格。"​
        }​
    ],​
    "model_name": "doubao-seed-1.6-250615",​
    "criteria": "这是一个多轮对话任务的评分标准，5分制，1分表示完全错误，5分表示完全正确"​
}'​

如果成功，你将看到创建后的任务信息和Prompt版本信息

{"Result":{"success":true,"prompt_version":{"prompt_version_id":"prv-20250905104417-bsqcQ","task_id":"ta-20250905104417-aaQfG","version":"v1","messages":[{"content":[{"text":"你是一个MBTI人格分析大师，负责根据用户提供的个人信息分析用户的MBTI人格。","type":"text"}],"role":"system"}],"variables_name":[],"variables_types":null,"model_name":"doubao-seed-1.6-250615","temperature":1.0,"top_p":0.7,"eval_dimension":"这是一个多轮对话任务的评分标准，5分制，1分表示完全错误，5分表示完全正确","created_at":"2025-08-28T15:01:28.277163","updated_at":"2025-08-28T15:01:28.277196"}},"Error":null}​

查看某一个 version 的信息

将示例代码中的 task_id 和 version 分别替换为实际的 task_id 和 version 后运行，成功后将看到该 task_id 下指定 version 的 Prompt 版本信息。

# Set task_id and version obtained from above commands or from PromptPilot Console UI​
export task_id="ta-20250905101023-qEeWK"​
export version="v1"​
​
# Get a prompt version​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=GetPromptTemplate" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_id": "'$task_id'",​
    "version": "'$version'"​
}'​

{"Result":{"success":true,"prompt_version":{"prompt_version_id":"prv-20250905104255-nafnT","task_id":"ta-20250905104255-r8u5s","version":"v1","messages":[{"content":[{"text":"这是一个文本理解任务的prompt，它有{{variable_1}}和{{variable_2}}","type":"text"}],"role":"user"}],"variables_name":["variable_1","variable_2"],"variables_types":null,"model_name":"doubao-seed-1.6-250615","temperature":1.0,"top_p":0.7,"eval_dimension":"这是一个文本理解任务的评分标准，5分制，1分表示完全错误，5分表示完全正确","created_at":"2025-09-05T10:42:55","updated_at":"2025-09-05T10:42:55"}},"Error":null}​

列出一个 task 下的所有版本信息

将示例代码中的 task_id 替换为实际的 task_id 后运行，成功后将看到该 task_id 下的所有 Prompt 版本信息。

# Set task_id obtained from above commands or from PromptPilot Console UI​
export task_id="ta-20250905101023-qEeWK"​
​
# List all prompt versions of a task​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=ListPromptTemplates" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_id": "'$task_id'"​
}'​

{"Result":{"success":true,"prompt_versions":[{"prompt_version_id":"prv-20250905104255-nafnT","task_id":"ta-20250905104255-r8u5s","version":"v1","messages":[{"content":[{"text":"这是一个文本理解任务的prompt，它有{{variable_1}}和{{variable_2}}","type":"text"}],"role":"user"}],"variables_name":["variable_1","variable_2"],"variables_types":null,"model_name":"doubao-seed-1.6-250615","temperature":1.0,"top_p":0.7,"eval_dimension":"这是一个文本理解任务的评分标准，5分制，1分表示完全错误，5分表示完全正确","created_at":"2025-08-28T15:01:25.470669","updated_at":"2025-08-28T15:01:25.470694"}]},"Error":null}​

更新某一个version的信息

将下面task_id和version分别替换为你的task_id和version后运行

# Set task_id and version obtained from above commands or from PromptPilot Console UI​
export task_id="ta-20251211195419-9GEJ3"​
export version="v1"​
​
# Update a prompt version​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=UpdatePromptTemplate" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_id": "'$task_id'",​
    "messages": [​
        {​
            "role": "user",​
            "content": "根据文字 {{text_var}} 和配图1 {{image_var}} 和配图2 {{image_var_2}}，写一个小故事。"​
        }​
    ],​
    "variables_types": {​
        "text_var": "text",​
        "image_var": "image_url",​
        "image_var_2": "image_url"​
    },​
    "model_name": "doubao-seed-1.6-251015",​
    "criteria": "这是一个更新后的视觉理解任务的评分标准，5分制，1分表示完全错误，5分表示完全正确"​
}'​

流式生成 Prompt

文本理解

# Test text understanding tasks​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=GeneratePromptStream" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_type": "DEFAULT",​
    "rule": "从提供的文档中提取总结要点，要点数量不超过10个。",​
    "model_name": "doubao-seed-1.6-250615",​
    "temperature": 1.0,​
    "top_p": 0.7​
}'​

如果成功，你将在Terminal看到流式生成的Prompt结果。

视觉理解

# Test visual understanding tasks​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=GeneratePromptStream" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_type": "MULTIMODAL",​
    "rule": "依据提供给的题目图片，对其中的题目展开解答。",​
    "model_name": "doubao-seed-1.6-250615",​
    "temperature": 1.0,​
    "top_p": 0.7​
}'​

如果成功，你将在Terminal看到流式生成的Prompt结果。

多轮对话

# Test dialog tasks​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=GeneratePromptStream" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_type": "DIALOG",​
    "rule": "你是一个MBTI人格分析大师，负责根据用户提供的个人信息分析用户的MBTI人格。",​
    "model_name": "doubao-seed-1.6-250615",​
    "temperature": 1.0,​
    "top_p": 0.7​
}'​

如果成功，你将在Terminal看到流式生成的Prompt结果。

回流数据和反馈

数据回流范围

可以将变量、图片、对话、模型回答、参照回答、评分及评分原因等各类事件回流到平台。在 PromptPilot Console 页面对应的 task_id 和 version 的批量评测页可查看回流的数据。

上传方式

通过完整 curl 命令上传：将示例代码中的 task_id 替换为实际的 task_id 后运行，成功后将看到返回后的状态，包括每条数据的上传状态。

# Assume you have already known a task_id and one of its version
export task_id="ta-20250904134351-AUtEk"
export version="v1"

# Upload a test dataset with 2 data records
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=TrackingEvent" \
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \
--header "Content-Type: application/json" \
--data '{
"request_id": "'$(uuidgen)'",
"workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",
"tracking_events": [
{
"run_id": "'$(uuidgen)'",
"run_type": "llm",
"event_name": "upload a record",
"task_id": "'$task_id'",
"prompt_version": "'$version'",
"variables": {
"variable_1": "value_1",
"variable_2": "value_2"
},
"output_message": {
"role": "assistant",
"content": "这是一个文本理解任务的model answer for value 1 and value 2"
},
"reference": {
"role": "assistant",
"content": "这是一个文本理解任务的reference answer for value 1 and value 2"
},
"feedback": {
"human_score": 5,
"human_analysis": "该条数据的人工评分原因",
"human_confidence": 1.0
}
},
{
"run_id": "'$(uuidgen)'",
"run_type": "llm",
"event_name": "upload a record",
"task_id": "'$task_id'",
"prompt_version": "'$version'",
"variables": {
"variable_1": "value_3",
"variable_2": "value_4"
},
"output_message": {
"role": "assistant",
"content": "这是一个文本理解任务的model answer for value 3 and value 4"
},
"reference": {
"role": "assistant",
"content": "这是一个文本理解任务的reference answer for value 3 and value 4"
},
"feedback": {
"human_score": 1,
"human_analysis": "该条数据的人工评分原因",
"human_confidence": 1.0
}
}
]
}'

{"Result":{"success":true,"tracking_events":{"E5C683EB-B0F7-4B2F-BAFC-7AF77AA90666":{"task_id":"ta-20250905104255-r8u5s","prompt_version":"v1","run_id":"E5C683EB-B0F7-4B2F-BAFC-7AF77AA90666","session_id":null,"status":{"success":true,"error":null}},"D005BE7E-7E15-46FF-85D9-DE35A6FB4F4F":{"task_id":"ta-20250905104255-r8u5s","prompt_version":"v1","run_id":"D005BE7E-7E15-46FF-85D9-DE35A6FB4F4F","session_id":null,"status":{"success":true,"error":null}}}},"Error":null}​

此时，登录PromptPilot Console页面的批量评测，你将看到回流的数据

更新数据内容可以参考

# Assume you have already known a task_id and one of its version and the data record's run id​
export task_id="ta-20250904134351-AUtEk"​
export version="v1"​
export run_id="D005BE7E-7E15-46FF-85D9-DE35A6FB4F4F"​
​
# Upload a test dataset with 2 data records​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=TrackingEvent" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "tracking_events": [​
        {​
            "run_id": "'$(uuidgen)'",​
            "run_type": "llm",​
            "event_name": "update a record",​
            "task_id": "'$task_id'",​
            "prompt_version": "'$version'",​
            "variables": {​
                "variable_1": "new_value_1",​
                "variable_2": "new_value_2"​
            },​
            "output_message": {​
                "role": "assistant",​
                "content": "这是一个文本理解任务新的model answer for value 1 and value 2"​
            },​
            "reference": {​
                "role": "assistant",​
                "content": "这是一个文本理解任务新的reference answer for value 1 and value 2"​
            },​
            "feedback": {​
                "human_score": 1,​
                "human_analysis": "该条数据新的人工评分原因",​
                "human_confidence": 1.0​
            }​
        }​
    ]​
}'​

如果成功，你将看到更新结果的状态

{"Result":{"success":true,"tracking_events":{"6D74CE50-BFC8-496A-AE12-A57D3499248A":{"task_id":"ta-20251126145347-b83XJ","prompt_version":"v1","run_id":"6D74CE50-BFC8-496A-AE12-A57D3499248A","session_id":null,"status":{"success":{"record_id":"dr-20251126162619-zKWXN","dataset_id":"ds-20251126145347-dHA8W","variables_values":"{\"variable_1\": \"new_value_1\", \"variable_2\": \"new_value_2\"}","variables_types":null,"ref_answer":"这是一个文本理解任务新的reference answer for value 1 and value 2","model_answer":"这是一个文本理解任务新的model answer for value 1 and value 2","thought":null,"user_score":1,"user_analysis":"该条数据新的人工评分原因","eval_model_score":null,"eval_model_analysis":null,"eval_model_confidence":null,"check_result":"","check_result_details":"","better_ref_answer":"","example_rule":"","data_state":1,"use_ai_evaluation":false,"create_time":"2025-11-26T16:26:20","update_time":"2025-11-26T16:31:32"},"error":null}}}},"Error":null}​

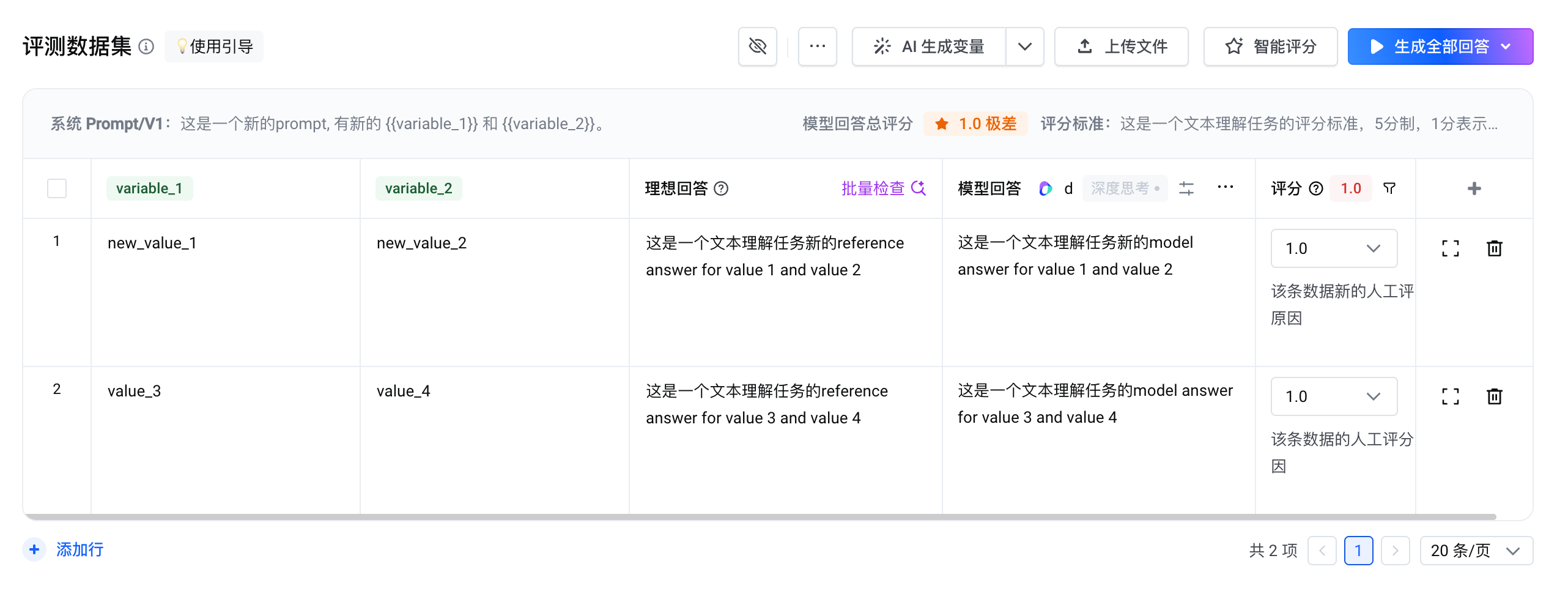

此时，登录PromptPilot Console页面的批量评测，你将看到更新后的数据

通过 JSON 文件上传数据集：

下载示例文件 AgentPilot Open API - 发布版到某一路径下。

在该文件所在路径运行指定命令，或修改为该文件所在绝对路径。注意需将示例 JSON 文件中的 task_id 替换为自己的 task_id。

# Alternatively, you can upload the test dataset in a JSON file.
# You need to set the related fields before submit a request, which may include request_id, task_id, version, run_id, etc.
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=TrackingEvent" \
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \
--header "Content-Type: application/json" \
--data '@./test_dataset.json'

Prompt优化和报告获取

提交优化任务

对某个task_id任务下的某个version提交优化job，将task_id和version分别替换为你的task_id和version

# Assume you have already known a task_id and one of its version​
export task_id="ta-20250904134351-AUtEk"​
export version="v1"​
​
# Submit an optimization job for the task_id of the version.​
curl --location "$AGENTPILOT_API_URL/agent-pilot-optimize?Version=2024-01-01&Action=OptimizeServiceStartOptimize" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_id": "'$task_id'",​
    "version": "'$version'"​
}'​

如果成功，你将得到optimize_job_id，通过该optimize_job_id，可以帮助你

查询优化任务的进展，

监控中间结果，

以及获取优化报告

{"Result":{"TaskId":"ta-20250905104255-r8u5s","Version":"v1","OptimizeJobId":"20250905105402_XGtu9_OptimizePrompt"},"Error":null}​

查看任务进展

将下面optimize_job_id替换为你的optimize_job_id后运行

export optimize_job_id="20250904152330_zUuSs_OptimizePrompt"​
​
# Check progress during the optimization (State=3) or after the optimization (State=3)​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=OptimizeServiceGetOptimizeProgress" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "optimize_job_id": "'$optimize_job_id'"​
}'​

State	解释
1	优化任务已创建
2	优化任务运行中
3	优化任务已完成且优化成功
4	优化任务已完成且优化失败

比如运行中 (State=2) 如下图

{"Result":{"JobInfo":{"JobId":"20250904211525_EvMYQ_OptimizePrompt","Version":"v1","State":2,"OptimizedVersion":null,"CreatedTime":"2025-09-05T13:15:25","UpdatedTime":"2025-09-05T13:15:35"},"Progress":{"ProgressPercent":0.0,"TotalCnt":2,"BetterCnt":0,"WorseCnt":0,"UnchangedCnt":2,"InitFullscoreCnt":1,"FullscoreCntList":[1],"InitAverageScore":3.0,"AverageScoreList":[3.0],"OptimizeTokenConsumption":0,"OptimalPrompt":"这是一个文本理解任务的prompt，它有{{variable_1}}和{{variable_2}}"}},"Error":null}​

比如优化成功 (State=3) 如下图

{"Result":{"JobInfo":{"JobId":"20250904211525_EvMYQ_OptimizePrompt","Version":"v1","State":3,"OptimizedVersion":"v2","CreatedTime":"2025-09-05T13:15:25","UpdatedTime":"2025-09-05T13:16:02"},"Progress":{"ProgressPercent":1.0,"TotalCnt":2,"BetterCnt":0,"WorseCnt":0,"UnchangedCnt":2,"InitFullscoreCnt":1,"FullscoreCntList":[1,1,1],"InitAverageScore":3.0,"AverageScoreList":[3.0,3.0,3.0],"OptimizeTokenConsumption":0,"OptimalPrompt":"这是一个文本理解任务的prompt，它有{{variable_1}}和{{variable_2}}"}},"Error":null}​

说明

你也可以登录PromptPilot Console页面查看实时进展监控曲线

获取优化报告

分别将task_id，base_version, ref_version替换为你的优化任务的task_id, base_version，ref_version，你将得到你刚才提交的从base_version优化到ref_version的优化报告。

# Set the base and ref versions when the optimization progress is done (State=3).​
# The base version is "Version", and the "OptimizedVersion".​
export base_version="v1" # Version in previous command​
export ref_version="v2" # OptimizedVersion in previous command​
​
# Then, you can get the report.​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=OptimizeServiceGetReport" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "task_id": "'$task_id'",​
    "base_version": "'$base_version'",​
    "ref_version": "'$ref_version'"​
}'​

如果运行成功，你将看到

{"Result":{"base":{"records":[{"record_id":"dr-20250904212324-ymasZ","variables":[{"name":"variable_1","value":"value_1","type":"text"},{"name":"variable_2","value":"value_2","type":"text"}],"model_answer":"这是一个文本理解任务的model answer for value 1 and value 2","ref_answer":"这是一个文本理解任务的reference answer for value 1 and value 2","score":5,"analysis":"该条数据的人工评分原因","confidence":null},{"record_id":"dr-20250904212326-LnpPS","variables":[{"name":"variable_1","value":"value_3","type":"text"},{"name":"variable_2","value":"value_4","type":"text"}],"model_answer":"这是一个文本理解任务的model answer for value 3 and value 4","ref_answer":"这是一个文本理解任务的reference answer for value 3 and value 4","score":1,"analysis":"该条数据的人工评分原因","confidence":null}],"prompt":"这是一个文本理解任务的prompt，它有{{variable_1}}和{{variable_2}}","metric":"","avg_score":3.0},"ref":{"records":[{"record_id":"dr-20250904212605-Stwkk","variables":[{"name":"variable_1","value":"value_1","type":"text"},{"name":"variable_2","value":"value_2","type":"text"}],"model_answer":"这是一个文本理解任务的model answer for value 1 and value 2","ref_answer":"这是一个文本理解任务的reference answer for value 1 and value 2","score":5,"analysis":"该条数据的人工评分原因","confidence":1.0},{"record_id":"dr-20250904212605-49zY5","variables":[{"name":"variable_1","value":"value_3","type":"text"},{"name":"variable_2","value":"value_4","type":"text"}],"model_answer":"这是一个文本理解任务的model answer for value 3 and value 4","ref_answer":"这是一个文本理解任务的reference answer for value 3 and value 4","score":1,"analysis":"该条数据的人工评分原因","confidence":1.0}],"prompt":"这是一个文本理解任务的prompt，它有{{variable_1}}和{{variable_2}}","metric":"- 若回答完全未能结合输入的{{variable_1}}和{{variable_2}}，或者存在重大错误、误导性信息，得1分。\n- 若回答有错误、遗漏了输入信息相关的重要内容或表达不清晰，得2分。\n- 若回答基本结合了输入信息，内容正确但不够全面，细节或深度有所欠缺，得3分。\n- 若回答正确且较为完整地结合了输入信息，表达清晰，但还有可提升的空间，得4分。\n- 若回答准确、全面地结合了输入信息，表达清晰流畅，完全满足甚至超出预期要求，得5分。","avg_score":3.0}},"Error":null}​

评估服务

提交一个评估请求

文本理解

curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=EvalServiceInputResponseEvaluate" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "eval_data_example": {​
        "example_id": "example_001",​
        "messages": [​
            {​
                "role": "user",​
                "content": "What is the capital of France?"​
            }​
        ],​
        "response": [​
            {​
                "role": "assistant",​
                "content": "The capital of France is Paris."​
            }​
        ],​
        "reference": [​
            {​
                "role": "assistant",​
                "content": "Paris is the capital city of France."​
            }​
        ],​
        "score": null,​
        "analysis": null,​
        "confidence": null​
    },​
    "metric_prompt": {​
        "criteria": "Check if the response correctly identifies Paris as the capital of France."​
    }​
}'​

如果成功，你将看到如下格式的输出

{"Result":{"success":true,"evaled_data_example":{"example_id":"example_001","messages":[{"role":"user","content":"What is the capital of France?"}],"response":[{"role":"assistant","content":"The capital of France is Paris."}],"reference":[{"role":"assistant","content":"Paris is the capital city of France."}],"score":5,"analysis":"模型回答明确指出法国的首都是巴黎，与理想回答意思一致，正确完成了评估规则的要求，因此给予5分。","confidence":1.0}},"Error":null}​

视觉理解

# Test the evaluation for a multimodal example​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=EvalServiceInputResponseEvaluate" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "eval_data_example": {​
        "example_id": "example_001",​
        "messages": [​
            {​
                "role": "user",​
                "content": [​
                    {"text": "How many people are in the image?", "type": "text"},​
                    {"image_url": {"url": "https://lf3-static.bytednsdoc.com/obj/eden-cn/lm_sth/ljhwZthlaukjlkulzlp/autope/examples/3.jpeg"}, "type": "image_url"}​
                ]​
            }​
        ],​
        "response": [​
            {​
                "role": "assistant",​
                "content": "There are 3 people in the image."​
            }​
        ],​
        "reference": [​
            {​
                "role": "assistant",​
                "content": "There are 5 people in the image."​
            }​
        ],​
        "score": null,​
        "analysis": null,​
        "confidence": null​
    },​
    "metric_prompt": {​
        "criteria": "Check if the response correctly counts the number of people in the image."​
    }​
}'​

如果成功，你将看到如下格式的输出

{"Result":{"success":true,"evaled_data_example":{"example_id":"example_001","messages":[{"role":"user","content":[{"type":"text","text":"How many people are in the image?"},{"type":"image_url","image_url":{"url":"https://lf3-static.bytednsdoc.com/obj/eden-cn/lm_sth/ljhwZthlaukjlkulzlp/autope/examples/3.jpeg"}}]}],"response":[{"role":"assistant","content":"There are 3 people in the image."}],"reference":[{"role":"assistant","content":"There are 5 people in the image."}],"score":1,"analysis":"根据评估规则，模型回答需要正确计算图片中的人数。理想回答是5人，而模型回答是3人，明显错误，未达到评估要求。","confidence":1.0}},"Error":null}​

生成一个评估标准

文本理解

# Test the criteria generation for a set of examples​
curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=EvalServiceCriteriaGeneration" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "eval_data_examples": [​
        {​
            "example_id": "example_001",​
            "messages": [​
                {​
                    "role": "user",​
                    "content": "What is the weather like today?"​
                }​
            ],​
            "response": [​
                {​
                    "role": "assistant",​
                    "content": "The weather is pleasant and warm."​
                }​
            ],​
            "reference": [​
                {​
                    "role": "assistant",​
                    "content": "It is sunny with a high of 75 degrees Fahrenheit."​
                }​
            ],​
            "score": 4,​
            "analysis": "The response accurately describes the weather but could be more detailed.",​
            "confidence": 0.85​
        },​
        {​
            "example_id": "example_002",​
            "messages": [​
                {​
                    "role": "user",​
                    "content": "Will it rain tomorrow?"​
                }​
            ],​
            "response": [​
                {​
                    "role": "assistant",​
                    "content": "There is a chance of rain tomorrow."​
                }​
            ],​
            "reference": [​
                {​
                    "role": "assistant",​
                    "content": "According to the forecast, there is a 60% chance of rain tomorrow with possible thunderstorms in the afternoon."​
                }​
            ],​
            "score": 2,​
            "analysis": "The response is too vague and lacks the specific details provided in the reference answer.",​
            "confidence": 0.9​
        }​
    ]​
}'​

如果成功，你将看到如下格式的输出

{"Result":{"success":true,"generated_criteria":"\n回答与问题无关或完全错误，评为 1 分\n回答过于模糊，缺乏关键细节，评为 2 分\n能准确回答问题，包含一定关键信息，评为 3 分\n回答准确，但详细程度有提升空间，评为 4 分\n回答准确且详细全面，提供丰富相关信息，评为 5 分\n"},"Error":null}​

视觉理解

curl --location "$AGENTPILOT_API_URL/agent-pilot?Version=2024-01-01&Action=EvalServiceCriteriaGeneration" \​
--header "Authorization: Bearer $AGENTPILOT_API_KEY" \​
--header "Content-Type: application/json" \​
--data '{​
    "request_id": "'$(uuidgen)'",​
    "workspace_id": "'$AGENTPILOT_WORKSPACE_ID'",​
    "eval_data_examples": [​
        {​
            "example_id": "example_001",​
            "messages": [​
                {​
                    "role": "user",​
                    "content": [​
                        {"text": "How many people are in the image?", "type": "text"},​
                        {"image_url": {"url": "https://lf3-static.bytednsdoc.com/obj/eden-cn/lm_sth/ljhwZthlaukjlkulzlp/autope/examples/3.jpeg"}, "type": "image_url"}​
                    ]​
                }​
            ],​
            "response": [​
                {​
                    "role": "assistant",​
                    "content": "There are 3 people in the image."​
                }​
            ],​
            "reference": [​
                {​
                    "role": "assistant",​
                    "content": "There are 5 people in the image."​
                }​
            ],​
            "score": 1,​
            "analysis": "The response incorrectly counts the number of people in the image.",​
            "confidence": 1.0​
        },​
        {​
            "example_id": "example_002",​
            "messages": [​
                {​
                    "role": "user",​
                    "content": [​
                        {"text": "How many people are in the image?", "type": "text"},​
                        {"image_url": {"url": "https://ark-auto-2100000825-cn-beijing-default.tos-cn-beijing.volces.com/experience_video_demo/experience_videofU0eQ1xX.png"}, "type": "image_url"}​
                    ]​
                }​
            ],​
            "response": [​
                {​
                    "role": "assistant",​
                    "content": "There are 1 people in the image."​
                }​
            ],​
            "reference": [​
                {​
                    "role": "assistant",​
                    "content": "There are 2 people in the image."​
                }​
            ],​
            "score": 1,​
            "analysis": "The response incorrectly counts the number of people in the image.",​
            "confidence": 1.0​
        }​
    ]​
}'​

如果成功，你将看到如下格式的输出

{"Result":{"success":true,"generated_criteria":"\n模型回答的人数与图片实际人数完全一致，得5分。\n模型回答的人数与图片实际人数相差1人，得3分。\n模型回答的人数与图片实际人数相差2人及以上，得1分。\n"},"Error":null}​

最近更新时间：2026.09.22 16:17:50

这个页面对您有帮助吗？

有用

无用
