GPU - Deploying DeepSeek-V4-Pro model

This topic describes how to deploy the DeepSeek-V4-Pro model on GPU instances by using two ecs.hpcpni3ln.45xlarge instances as an example.

Background

DeepSeek-V4-Pro is the flagship LLM in the DeepSeek-V4 preview series. Built on the Mixture-of-Experts (MoE) sparse architecture, the model has a total of 1.6 trillion parameters. Each forward inference dynamically activates approximately 49 billion parameters, significantly reducing the per-token inference cost while maintaining high performance. DeepSeek-V4-Pro-Max, the maximum inference intensity mode of this model, outperforms all previously released open-source models in evaluations in mathematics, STEM, and competitive programming. Delivering performance on par with leading closed-source cutting-edge models, DeepSeek-V4-Pro-Max is suitable for advanced tasks such as complex reasoning, in-depth long-document analysis, and multi-step agent orchestration tasks.

Software requirements

NVIDIA driver:

GPU driver: A program used to drive NVIDIA GPUs. In the example provided in this topic, version 535.161.08 is used.

Runtime environment:

SGLang framework: a high-performance service framework specifically built for Large Language Models (LLMs) and vision-language models. With the collaborative design of the frontend structured generation language and the backend runtime system, the SGLang framework supports efficient interaction with models and ensures controllability of the generation process.

Procedure

Step 1: Prepare the environment

Create a GPU Accelerated instance.

Follow the guidance of Purchasing an instance by following the wizard to create two instances that meet the following conditions:

Configuration item	Recommended configuration
Basic information
Instance type	ecs.hpcpni3ln.45xlarge tip The instance type ecs.hpcpni3ln.45xlarge is currently in Beta. If you need a trial, please submit a ticket or contact your account manager to apply.
Image	Ubuntu 22.04 with GPU Driver 535.161.08 and doca tip If you choose an image based on another distribution release, you need to install the GPU driver after creating the instance.
Number of instances	2 tip The two GPU instances created in this topic serve as the "Node 0" and "Node 1", respectively.
Storage	Specification: TSSD TL0 volume Capacity: no less than 2048 GiB tip The DeepSeek-V4-Pro model used in this topic has 1.6 trillion parameters. It is recommended to configure volume capacity of not less than 2048 GiB.
Network configuration
Virtual Private Cloud	The two instances must be in the same VPC.
EIP	Select "Assign Elastic IP (EIP)".

Install the required software and tools.

Execute the following commands separately on the two GPU instances to install and configure Docker.

sudo apt update
sudo apt install ca-certificates curl gnupg lsb-release
sudo mkdir -p /etc/apt/keyrings
curl -fsSL https://mirrors.ivolces.com/docker/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://mirrors.ivolces.com/docker/linux/ubuntu $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt update
sudo apt install docker-ce docker-ce-cli containerd.io docker-compose-plugin -y

Execute the following commands separately on the two GPU instances to install NVIDIA Container Toolkit.

curl -s https://mirrors.ivolces.com/nvidia_all/ubuntu2204/x86_64/3bf863cc.pub | sudo apt-key add -
cat <<EOF >/etc/apt/sources.list.d/nvidia.list
deb http://mirrors.ivolces.com/nvidia_all/ubuntu2204/x86_64/ /
EOF
apt update
apt install nvidia-container-toolkit -y

Execute the following commands separately on the two GPU instances to configure Docker. This allows the containers to use GPU resources of the instances.

sudo nvidia-ctk runtime configure --runtime=docker
sudo systemctl restart docker

(Optional) Initialize the local volume.

If the instance type you choose includes a local disk, we recommend that you execute the following commands to mount the local disk to the "/data00" directory where the model is stored. This can improve model loading speed.

mkfs -t ext4 /dev/nvme0n1
mount -t ext4 /dev/nvme0n1 /data00

tip

Replace /dev/nvme0n1 with the name of the actual local volume.

Replace ext4 with the file system you want to use.

Step 2: Deploy and run the model

Download the model file.

Execute the following commands separately on the two GPU instances to install and configure onion.

curl -fsSL https://mirrors.ivolces.com/extra-tools/ubuntu/GPG-KEY-system | sudo gpg --dearmor -o /etc/apt/trusted.gpg.d/volc-extra-tools.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/trusted.gpg.d/volc-extra-tools.gpg] http://mirrors.ivolces.com/extra-tools/ubuntu jammy main" > /etc/apt/sources.list.d/volctools.list && apt update && apt install -y onion-ai-data

Execute the following command separately on the two GPU instances to download the DeepSeek-V4-Pro model and save it to the target directory.

tip

Please replace /data00 with the actual directory where the model is saved.

You can also execute the oniond list model command to view the list of available models.

oniond download model DeepSeek-V4-Pro --dir /data00

Execute one of the following commands on the two GPU instances based on the region of the instance to download the Docker image.

China (Beijing)
China (Shanghai)

docker pull ai-containers-cn-beijing.cr.volces.com/deeplearning/sglang:deepseek-v4-community-enhancements

On the instance "Node 0", execute the following commands to view its primary network interface name and corresponding private IP address. This information will be used for subsequent configuration of distributed communication and network connectivity among multiple nodes.

tip

In the example provided in this topic, the primary network interface named eth0 and the corresponding private IP address 172.31.38.23 are used.

IFACE=$(ip route | awk '/^default/ {print $5; exit}') && \
echo "Primary NIC: $IFACE" && \
echo "Private IP: $(ip -4 addr show $IFACE | awk '/inet / {print $2}' | cut -d/ -f1)"

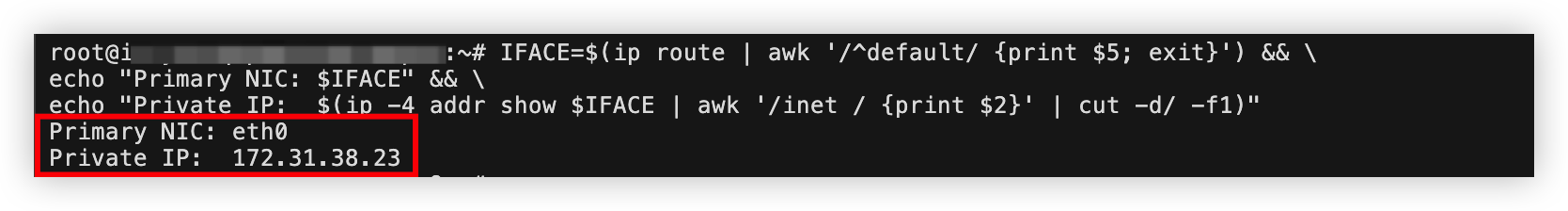

When the output is as shown below, it indicates that the primary network interface name of the instance "Node 0" is eth0 and the corresponding private IP address is 172.31.38.23.

Based on the instance region, execute the corresponding command on each of the two GPU instances to start the Docker container and the DeepSeek-V4-Pro model service.

tip

Please replace /data00 with the actual path where the model is saved.

Please replace eth0 with the actual primary network interface name of the “Node 0” instance.

Please replace 172.31.38.23 with the actual private IP address of the primary network interface of the instance "Node 0".

China (Beijing)
China (Shanghai)
Instance "Node 0"

docker run --gpus all -itd --net=host --shm-size=100g --ulimit memlock=-1 --ulimit stack=67108864 --privileged --ipc=host --security-opt seccomp=unconfined --cap-add=ALL -v /data00/:/data00/ -v /var/run/nvidia-topologyd/:/var/run/nvidia-topologyd/ -e SGLANG_ENABLE_THINKING=1 -e SGLANG_DSV4_FP4_EXPERTS=1 -e SGLANG_JIT_DEEPGEMM_PRECOMPILE=0 -e GLOO_SOCKET_IFNAME=eth0 -e NCCL_MIN_NCHANNELS=24 -e NCCL_IB_QPS_PER_CONNECTION=8 --entrypoint "" ai-containers-cn-beijing.cr.volces.com/deeplearning/sglang:deepseek-v4-community-enhancements sglang serve --trust-remote-code --model-path /data00/models/DeepSeek-V4-Pro --tp 16 --dp-size 2 --enable-dp-attention --cuda-graph-max-bs 8 --max-running-requests 16 --enable-metrics --host 0.0.0.0 --port 8080 --mem-fraction-static 0.9 --moe-runner-backend marlin --dist-init-addr 172.31.38.23:30300 --nnodes 2 --node-rank 0 --tool-call-parser deepseekv4 --reasoning-parser deepseek-v4 --chunked-prefill-size 4096

Instance "Node 1"

docker run --gpus all -itd --net=host --shm-size=100g --ulimit memlock=-1 --ulimit stack=67108864 --privileged --ipc=host --security-opt seccomp=unconfined --cap-add=ALL -v /data00/:/data00/ -v /var/run/nvidia-topologyd/:/var/run/nvidia-topologyd/ -e SGLANG_ENABLE_THINKING=1 -e SGLANG_DSV4_FP4_EXPERTS=1 -e SGLANG_JIT_DEEPGEMM_PRECOMPILE=0 -e GLOO_SOCKET_IFNAME=eth0 -e NCCL_MIN_NCHANNELS=24 -e NCCL_IB_QPS_PER_CONNECTION=8 --entrypoint "" ai-containers-cn-beijing.cr.volces.com/deeplearning/sglang:deepseek-v4-community-enhancements sglang serve --trust-remote-code --model-path /data00/models/DeepSeek-V4-Pro --tp 16 --dp-size 2 --enable-dp-attention --cuda-graph-max-bs 8 --max-running-requests 16 --enable-metrics --host 0.0.0.0 --port 8080 --mem-fraction-static 0.9 --moe-runner-backend marlin --dist-init-addr 172.31.38.23:30300 --nnodes 2 --node-rank 1 --tool-call-parser deepseekv4 --reasoning-parser deepseek-v4 --chunked-prefill-size 4096
Instance "Node 0"

docker run --gpus all -itd --net=host --shm-size=100g --ulimit memlock=-1 --ulimit stack=67108864 --privileged --ipc=host --security-opt seccomp=unconfined --cap-add=ALL -v /data00/:/data00/ -v /var/run/nvidia-topologyd/:/var/run/nvidia-topologyd/ -e SGLANG_ENABLE_THINKING=1 -e SGLANG_DSV4_FP4_EXPERTS=1 -e SGLANG_JIT_DEEPGEMM_PRECOMPILE=0 -e GLOO_SOCKET_IFNAME=eth0 -e NCCL_MIN_NCHANNELS=24 -e NCCL_IB_QPS_PER_CONNECTION=8 --entrypoint "" ai-containers-cn-shanghai.cr.volces.com/deeplearning/sglang:deepseek-v4-community-enhancements sglang serve --trust-remote-code --model-path /data00/models/DeepSeek-V4-Pro --tp 16 --dp-size 2 --enable-dp-attention --cuda-graph-max-bs 8 --max-running-requests 16 --enable-metrics --host 0.0.0.0 --port 8080 --mem-fraction-static 0.9 --moe-runner-backend marlin --dist-init-addr 172.31.38.23:30300 --nnodes 2 --node-rank 0 --tool-call-parser deepseekv4 --reasoning-parser deepseek-v4 --chunked-prefill-size 4096

Instance "Node 1"

docker run --gpus all -itd --net=host --shm-size=100g --ulimit memlock=-1 --ulimit stack=67108864 --privileged --ipc=host --security-opt seccomp=unconfined --cap-add=ALL -v /data00/:/data00/ -v /var/run/nvidia-topologyd/:/var/run/nvidia-topologyd/ -e SGLANG_ENABLE_THINKING=1 -e SGLANG_DSV4_FP4_EXPERTS=1 -e SGLANG_JIT_DEEPGEMM_PRECOMPILE=0 -e GLOO_SOCKET_IFNAME=eth0 -e NCCL_MIN_NCHANNELS=24 -e NCCL_IB_QPS_PER_CONNECTION=8 --entrypoint "" ai-containers-cn-shanghai.cr.volces.com/deeplearning/sglang:deepseek-v4-community-enhancements sglang serve --trust-remote-code --model-path /data00/models/DeepSeek-V4-Pro --tp 16 --dp-size 2 --enable-dp-attention --cuda-graph-max-bs 8 --max-running-requests 16 --enable-metrics --host 0.0.0.0 --port 8080 --mem-fraction-static 0.9 --moe-runner-backend marlin --dist-init-addr 172.31.38.23:30300 --nnodes 2 --node-rank 1 --tool-call-parser deepseekv4 --reasoning-parser deepseek-v4 --chunked-prefill-size 4096

Parameter descriptions:

In the example from the previous steps, the commands are used to start and deploy the DeepSeek-V4-Pro model. To deploy and start other models, replace the relevant environment variables and parameter values in the commands according to the parameter descriptions in the following table.

Parameter	Description	Sample value
--trust-remote-code	Allows loading custom code from model repository.	-
--nnodes	Specifies the total number of nodes in the distributed cluster, which is the number of servers involved in the service.	2
--node-rank	Specifies the sequence number of the current node in the cluster. The numbering starts from 0.	0
--dist-init-addr	Specify the private IP address and port number of the instance "Node 0" for multi-node distributed usage. Format: IP address: port number. IP address: We recommend that you use the private IP address of the Rank 0 node. Port number: the port number for communication between nodes.	172.31.38.23:30300
--dp-size	Specifies data parallelism.	16
--tp	Specifies the tensor parallelism.	16
--mem-fraction-static	Specifies the upper limit of GPU memory usage. The value ranges from 0 to 1. A value that is too high may cause OOM or memory fragmentation, while a value that is too low may reduce throughput.	0.95
--max-running-requests	Specifies the maximum number of concurrent request sequences in the engine.	16

Execute the following commands separately in the two instances. Then, confirm whether the container and model have started through Docker logs.

View the container ID.

docker ps

View the running log of the corresponding container.

docker logs -f <CONTAINER_ID>

tip

Replace <CONTAINER_ID> with the actual container ID.

Step 3: Call the model

Execute the following command to call the model and verify that the deployed model can perform inference properly.

curl -X POST http://localhost:8080/v1/chat/completions -H "Content-Type: application/json" -d '{
"model": "deepseek-v4-fp8",
"messages": [
{
"role": "user",
"content": "Prepare a Beijing travel guide."
}
],
"max_tokens": 500,
"temperature": 0.7
}'

Parameter descriptions:

This topic only describes the parameters used for verification.

Parameter	Description	Sample value
model	Indicates the actual model used.	deepseek-v4-fp8
messages	The list of messages in the conversation. role: the role that initiates the message. content: the content of the message.	-
max_tokens	Specifies the maximum number of tokens in the completion generated by the model for a single request. Valid values: An integer between 1 and 8192. The default value is 4096.	100
temperature	Sampling temperature: The higher the temperature (for example 1), the more random the output is. Therefore, a lower temperature value (for example 0.2) makes the output more focused and deterministic. Value: between 0 and 2.	0.7
