Interface description #

This interface is used to create clusters, which can be created based on rules or uploaded files.

• When creating a cluster based on rules, you can directly call this interface.
• If you need to create clusters based on uploaded files, you need to upload the files first to get file file_key, see Upload the File which is Used to Create the Cohorts.

Request description #

Path:/openapi/v1/{app_id}/cohorts
Method: POST
Content-type: application/json

Request parameters #

Path-parameters : refer to public parameters
Body:

{
    "cohort_name": "cohort name",
    "cohort_type": 4,
    "description": "cohort description",
    "dsl_content": {},
    "refresh_rule": 1
}

Field meaning description

return parameters #

Response:

{
    "code": 200,
    "message": "success",
    "data": {
        "cohort_id": 6
    }
}

Field meaning description

Request example #

Bc is the RangersClient created. For its initialization, please refer to the "OpenAPI SDK Instructions". SDKs in various languages provide similar interfaces
Call (Python):

# for example, app_id= 164314

dsl = {
    "cohort_name": "openapi-creation",
    "cohort_type": 4, #4 Represents rule creation
    "description": "",
    "dsl_content": {
        "periods": [],
        "app_ids": [
            164314
        ],
        "content": {
            "profile_filters": [],
            "profile_groups": [],
            "queries": [
                [
                    {
                        "show_label": "event--A--A",
                        "event_name": "any_event",
                        "event_type": "origin",
                        "next_query_label": null,
                        "sequence_first": true,
                        "logic": true,
                        "condition": {
                            "property_operation": ">",
                            "property_values": [
                                0
                            ],
                            "period": {
                                "granularity": "day",
                                "last": {
                                    "amount": 7,
                                    "unit": "day"
                                },
                                "type": "last",
                                "timezone": "Asia/Shanghai"
                            }
                        },
                        "filters": [
                            {
                                "expression": {
                                    "logic": "and",
                                    "conditions": []
                                }
                            }
                        ],
                        "event_indicator": "events"
                    }
                ]
            ],
            "query_type": "$cohort"
        },
        "version": 3
    },
    "refresh_rule": 1 #1 means manual refresh, 2 means daily refresh
}
resp = bc.data_finder("/openapi/v1/164314/cohorts"， body=dsl)
cohort_id = resp.json()["data"]["cohort_id"]

Return result:

{
    "code": 200,
    "message": "success",
    "data": {
        "cohort_id": 6
    }
}

Back to example #

Return result:

{
    "code": 200,
    "message": "success",
    "data": {
        "cohort_id": 6
    }
}

7.3 Configure and obtain the clustered DSL from the frontend (recommended) #

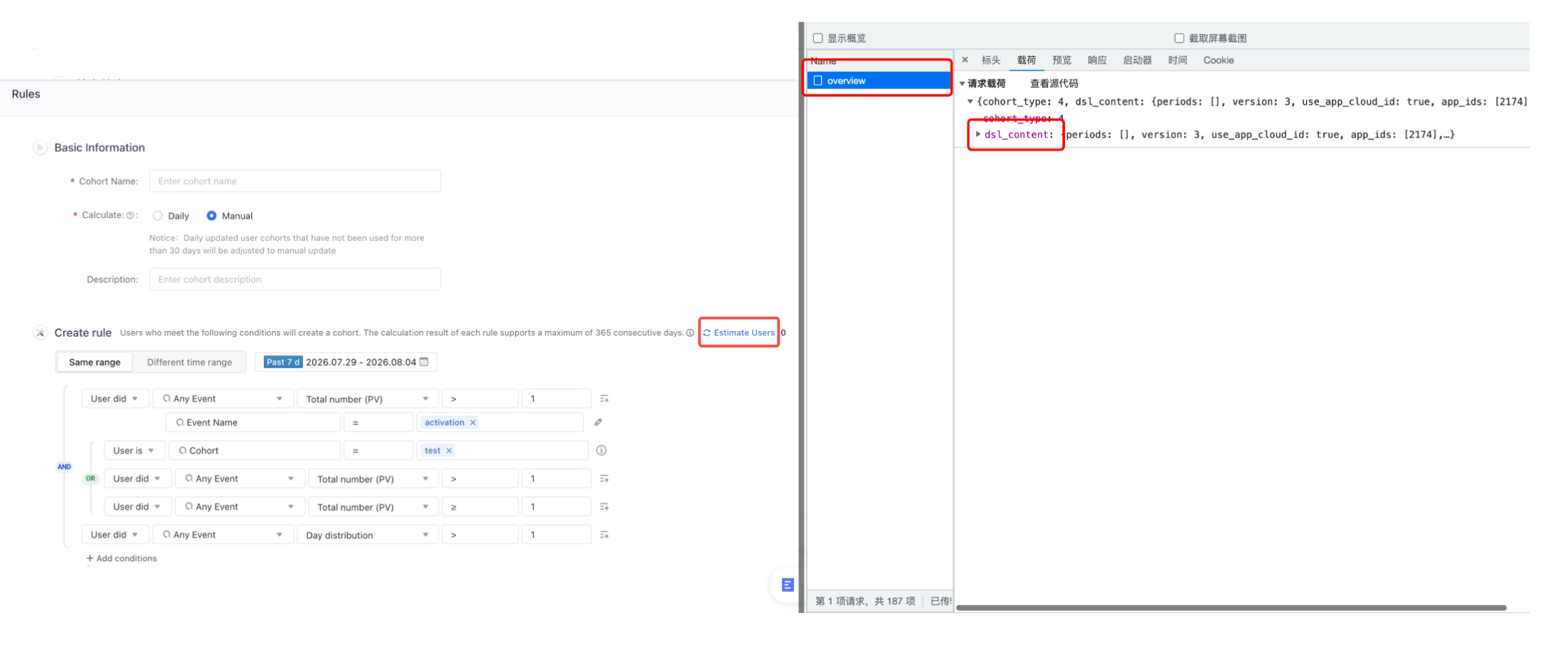

Configure the rules in the cluster configuration page, then open the browser console, and then click "Estimated number of people" to view the dsl_content field of the overview interface. (Note: When using dsl_content, it is best to delete the show_option node as a whole.)
