Usually when conducting user behavior data analytics, there may be a variety of identification IDs we use to identify users, such as mobile phone number, application account number, user device ID, etc. DataFinder presets the commonly used user identification ID types for you, and also supports you to add more ID types. It also provides you with ID-MAPPING computing capabilities, MAPPING calculations for multiple types of IDs, and uses ssid to restore a real natural person as much as possible to improve the accuracy and reliability of the data. This article shows you how to use the multi-ID type feature.

See more about the functional logic of multi-ID types Multi-Application/ Multi-Agent/ Multi-ID Type Overview.

Preparation: Research and planning #

You need to research and plan the business scenarios for analysis first, plan how many business applications there are, how many ID types there may be, and the binding relationship between them, etc., output the corresponding ID design scheme, and then report and analyze the data according to the ID design scheme.
The following is an example of a bank app reporting a multi-user ID caliber to provide you with an example of the summary process and key points of research and planning.
Sort out the current status of ID data. Conduct research according to business system requirements, collect user ID types that need to be reported, such as customer numbers and mobile phone numbers, and design ID schemes according to business scenarios (ID types, priority relationships between IDs, and which IDs to report in different application scenarios).

Add multiple ID types #

After enabling the multi-ID type function, you need to contact the DataFinder technical support staff to add the required ID type in the background configuration according to the ID design plan.

Take the banking app as an example, add two user id types: cust_num and phone.

Data reporting #

Report caliber ID and ID type #

After enabling the multi-ID type function, when reporting the ID value of the user ID, you need to mark clearly which ID type the reported ID data is.

Each end of the DataFinder supports the ID type of the ID data when reporting multi-ID caliber data. Take the bank app reporting the user ID as the customer number as an example. The user ID configuration code examples of each end are shown below. For other code descriptions of events, please refer to the data access documentation of each end.

Web

window.collectEvent('config', {
 user_unique_id: '12345656788888' // The actual value of the business id
 user_unique_id_type: 'cust_num' // user id type. Same id design scheme
})

See the Data Access SDK for more information Web/JavaScript SDK Integration.

MPS (Mini Program)

$$Rangers.config({
  user_unique_id: '12345656788888',// The actual value of the business id
  user_unique_id_type: 'cust_num',// user id type. Same id design scheme
});

See the Data Access SDK for more information Mini Program SDK Integration.

Android

@param uniqueID user id, unless there are special requirements, please do not pass empty strings or strings containing only spaces
@param type  user id type
AppLog.setUserUniqueID(String uuid, String uuidType)

Configuration example:

//The second parameter cust_num is enumeration value of the id type, the same as the id design scheme
AppLog.setUserUniqueID("12345656788888" ,"cust_num");

See the Data Access SDK for more information Android SDK Integration.

iOS

*! @abstract configure when UserUniqueID changes
 @discussion If there is a value, set it as the ID value; Please call [BDAutoTrack clearUserUniqueID] or pass nil when logging out
 @discussion SDK will be saved, hence configure it only when changes.
 @param uniqueID user id, unless there are special requirements, please do not pass empty strings or strings containing only spaces
 @param type  user id type
 @return whether configure successfully or logout successfully.
  */
- (BOOL)setCurrentUserUniqueID:(nullable NSString *)uniqueID withType:(nullable NSString *)type;

Configuration example:

//The second parameter cust_num is enumeration value of the id type, the same as the id design scheme
 [[BDAutoTrack sharedTrack] setCurrentUserUniqueID:@"12345656788888" withType:@"cust_num"];

See the Data Access SDK for more information iOS SDK Integration.

Server level

In the user section of the event report, report the ID type by adding user_unique_id_type fields.
Configuration example:

{
    "user": {
        "user_unique_id": "12345656788888",
        "user_unique_id_type": "cust_num"
    },
    "header": {
        //omit
    },
    "events": [
       //omit
    ]
}

See the Data Access SDK for more information Java SDK.

Report ID caliber correlation: id binding #

The basic aperture switching is achieved in the above way, but in some scenarios, we can obtain other ID types associated with the subject. To ensure the accuracy of the association, we recommend setting the id bind to report the relationship between the caliber and the caliber in real time.
The timing of id binding: It is recommended that the ID relationship be bound as much as possible before reporting the event, such as binding the ID relationship through the data in the business system through the Http API. If it is reported by the end side, and the user login status can be obtained before the user needs to bind the ID relationship, it can be bound first, and the login status (user_uniqe_id) setting is performed in the successfully bound callback function ( refer to Android example ).
Taking the ID binding of a bank app as an example, the configuration points and examples of each end are as follows:

Web

Js SDK 5.2.0 version later support, specific reference to SDK access documentation, the core part of the code example is as follows.

window.collectEvent('bindToken', {
   phone: '1230000000' //key is an enumeration value of type id, the same as the id design scheme
   cust_num: '12345656788888' //key is an enumeration value of type id, the same as the id design scheme
}, (result) => {
  //Operation follow-up processing according to status
})

See the Data Access SDK for more information Web/JavaScript SDK Integration.

MPS (Mini Program)

$$Rangers.bind({
    phone: '1230000000',//key is an enumeration value of type id, the same as the id design scheme
    cust_num: '12345656788888'//key is an enumeration value of type id, the same as the id design scheme
}).then((status) => {
    //Business operation follow-up processing according to status
});

See the Data Access SDK for more information Mini Program SDK Integration.

iOS

Client side currently supports android/ios versions after 6.14.1.

@interface BDAutoTrack (OneID)

- (void)bind:(NSDictionary<NSString *,NSString *> *)idmappings
  completion:(void (^)(BOOL success,NSError *error))completion;

@end

Example:

NSDicitionary *idMappings = @{
    @"phone":@"1230000000", //The first parameter phone is an enumeration value of type id, the same as the id design scheme
    @"cust_num":@"12345656788888" //The first parameter cust_num the enumeration value of the id type, the same as the id design scheme
}

[BDAutoTrack.sharedTrack bind:idMappings completion:^(BOOL success,
                      NSError *error) {
    if (success) {
        //
    }

}];

See the Data Access SDK for more information iOS SDK Integration.

Android

Client side currently supports android/ios versions after 6.14.1.

// Bind API
interface IDBindCallback {
    void onSuccess(IDBindResult result);
    void onFail(int code);
}

class IDBindResult {
    String newSsid；
    String failedIdList；
}

// AppLog
void bind(Map<String, String> identities, IDBindCallback callback);

Example:

Map<String, String> ids = new HashMap<String, String>
ids.put("phone", "1230000000"); //The first parameter cust_num the enumeration value of the id type, the same as the id design scheme
ids.put("cust_num", "12345656788888"); //The first parameter cust_num the enumeration value of the id type, the same as the id design scheme
AppLog.bind(ids, new IDBindCallback() {
    void onSuccess(IDBindResult result) {
        // Request successful and set login status
        AppLog.setUserUniqueID("12345656788888" ,"cust_num");
    }
    void onFail(int code) {
        // binding request failed
    }
});

See the Data Access SDK for more information Android SDK Integration.

Server level

Server level ID binding is done by reporting special events:

• Event name: "__id_bind" fixed value
• user_unique_id fixed to __rangers.
• Add the id that needs to be bound in params, the key is id_code, and the value is the value of id

Example:

{
    "user": {
        "user_unique_id": "__rangers" // fixed format and value
    },
    "header": {
        "app_id": "1000****" //required
    },
    "events": [
        {
            "event": "__id_bind", // fixed format and value
            "local_time_ms": 1668755974348, //timestamp of current time
            "params": {
                "phone": "1230000000",// key is an enumeration value of type id, the same as the id design scheme
                "cust_num": "12345656788888", // key is an enumeration value of type id, the same as the id design scheme
            }
        }
    ]
}

See the Data Access SDK for more information Java SDK.

Data analysis #

After enabling the function of configuring multiple ID types, when you conduct event analysis in the future, the different types of ID data reported by the same natural person will be related to the same ssid through the ID-MAPPING calculation of DataFinder, and a natural person will be identified through the ssid as accurately and truly as possible to improve the accuracy and reliability of the data.

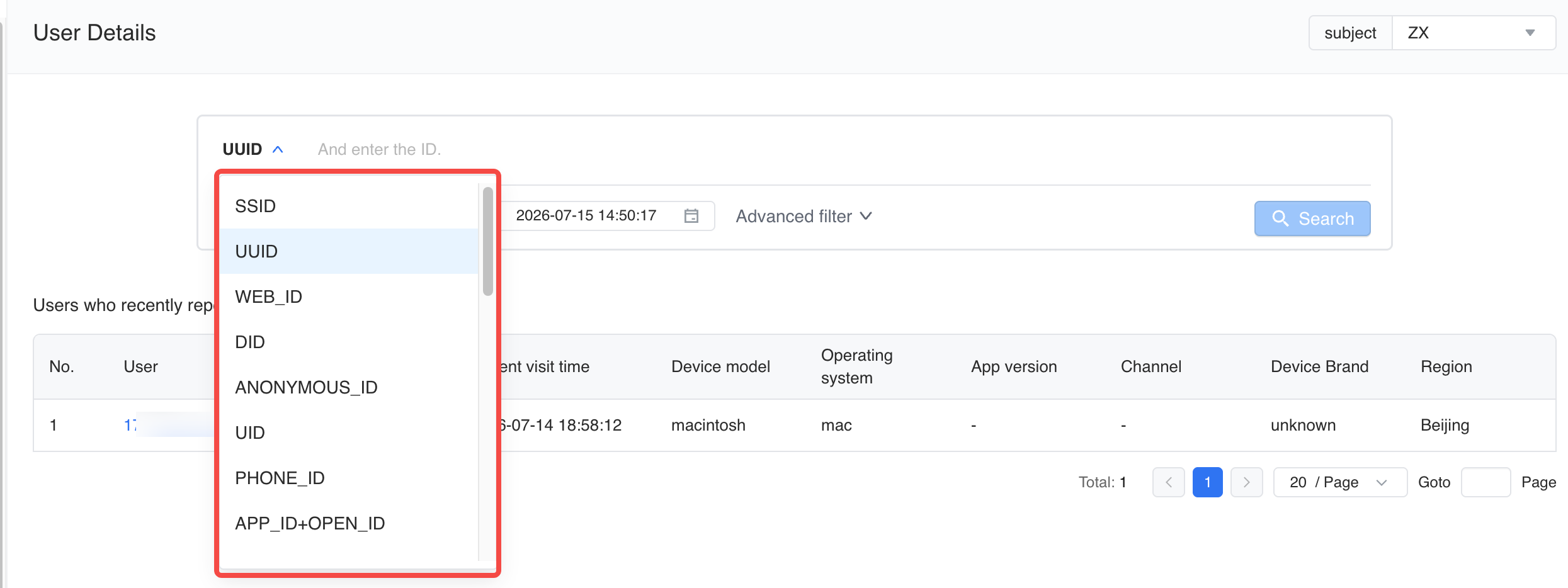

In the User Detail section, you can either perform cross-ID event queries for the same user through the generated ssid, or you can switch the ID type (you can select the ID type configured by the ID scheme), and query only the event tracking events reported by this ID through the reported business ID.
