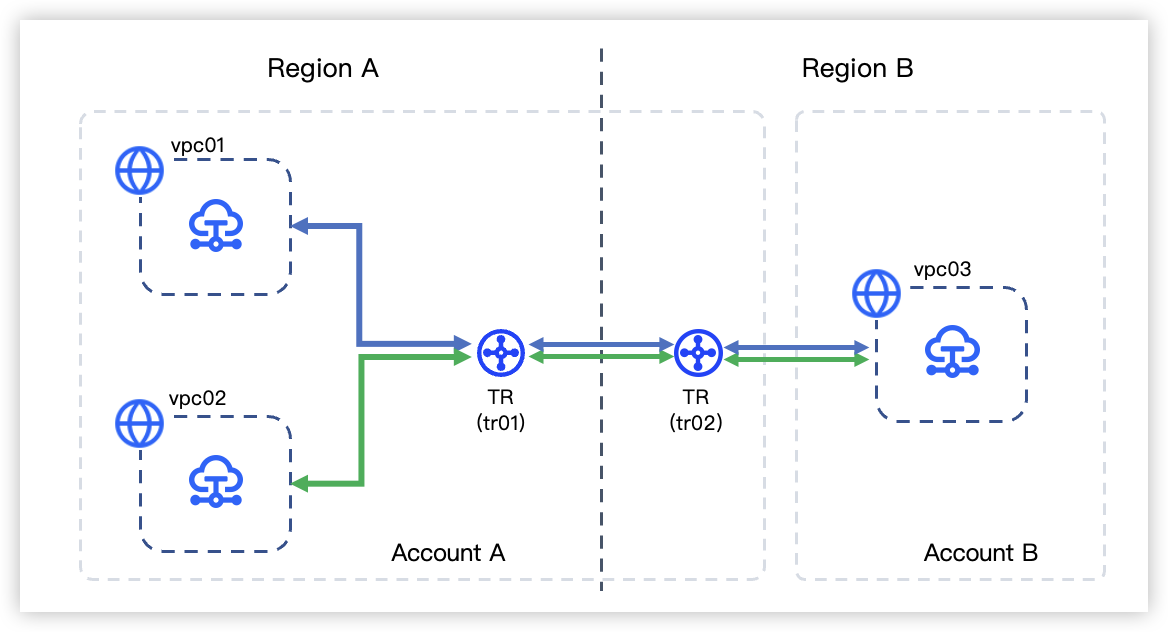

Implementing private interconnectivity and isolation between different VPCs (cross-account, cross-region)

This section describes how to use Transit Routers (TRs) to implement interconnectivity between two VPCs (vpc01 and vpc02) and another VPC (vpc03) in different accounts and regions. After connecting, both vpc01 and vpc02 can communicate with vpc03 via the TR, but vpc01 and vpc02 cannot mutually communicate, as shown below.

Prerequisites

You have created three Virtual Private Clouds (VPCs) and their subnets. For procedure, see Building an IPv4 VPC.

tip

Ensure that neither VPC contains conflicting subnets. That is, no duplicate or overlapping CIDR blocks exist.

You have created Elastic Compute Service (ECS) instances in the three VPCs. For procedure, see Buying ECS instances.

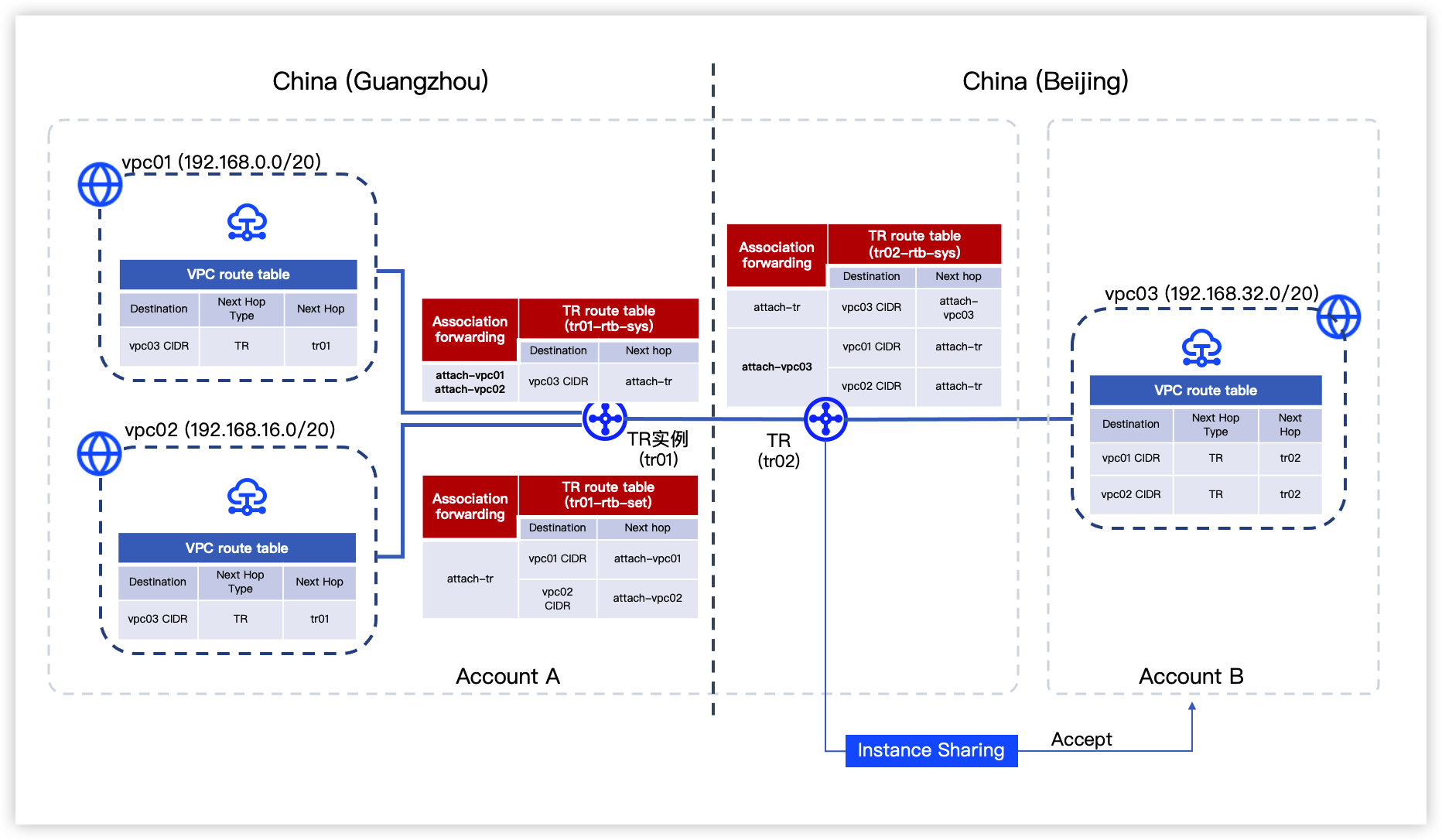

Routing planning

In a single TR instance, multiple network instances with the identical access destination can use the same TR route table to forward traffic.

Within China (Guangzhou): Since both vpc01 and vpc02 only need to access vpc03, their traffic can share a single TR route table. However, the inter-region attachment requires access to distinct destinations (both vpc01 and vpc02). Therefore, a separate TR route table is required to handle this traffic.

Within China (Beijing): vpc03 and the inter-region attachment require access to the same destinations (both vpc01 and vpc02). So only one TR route table is required.

In summary, at least three TR route tables are required to enable connectivity and isolation between different VPCs. The following figure illustrates the specific route planning.

tip

Routes in the VPC route tables illustrated above can be manually configured or automatically published. This example uses auto publishing. To manually configure VPC routes, see Achieving interconnectivity and isolation between VPCs.

Configuration procedures

Configure a TR instance in China (Guangzhou) (Account A): Use Account A to create a TR instance in China (Guangzhou), and create network instance attachments that connect to vpc01 and vpc02 respectively.

Create a TR instance: Create a TR instance in China (Guangzhou).

Create a TR custom route table: Create a custom route table for the TR instance to receive and forward network traffic along with the TR system route table.

Create a network instance attachment and configure routing: Create two network instance attachments on the TR instance to connect the two VPCs in this region. On the TR side, configure association forwarding and route learning to control the traffic flow to and from these VPCs. On the VPC side, configure auto publishing to control flow direction.

View TR and VPC routes: Check that the routes of the TR instance and two VPCs in the same region meet expectations.

Configure a TR instance in China (Beijing) (Account A): Use Account A to create a TR instance in China (Beijing) and share it with Account B.

Create a TR instance: Create a TR instance in China (Beijing).

Create instance sharing: Create a sharing unit for the TR instance in China (Beijing) and share it with Account B.

Accept the sharing invitation (Account B): Use Account B to accept the TR instance shared by Account A.

Create a network instance attachment and configuring routing (Account B): Use Account B to create a network instance attachment on the shared TR instance, connecting the shared TR instance to vpc03 under my account. On the TR side, configure association forwarding and route learning to control the traffic flow to and from these VPCs. On the VPC side, configure auto publishing to control flow direction.

Configure cross-region bandwidth (Account A): Create an inter-region attachment to connect TR instances between regions.

Create a bandwidth package: Create a bandwidth package to provide bandwidth resources for the inter-region attachment.

Create an inter-region attachment and configure routing: Create an inter-region attachment to connect the TR instances in the two regions above. Allocate bandwidth for the attachment. Configure association forwarding and route learning to implement route propagation between the two TR instances.

View TR and VPC routes: Check that the routes of two TR instances in different regions and two VPCs under Account A meet expectations.

View VPC routes (Account B): Use Account B to check that the route entries in the route table of vpc03 meet expectations.

Verification: Run ping to verify the connectivity between ECS instances in different VPCs to ensure that the VPCs are connected and isolated as expected.

Configuration procedures

Step 1: Configure a TR instance in China (Guangzhou) (Account A)

I. Create a TR instance

Use Account A to log in to the Transit Router console.

In the top menu bar, select the target project and region.

Click Create TR and configure related parameters based on the table below.

Parameter	Description	Example
Region	Select a region closer to your service for shorter network delays and faster access. Cloud resources in different regions are isolated by default on private networks.	China (Guangzhou)
Name	Type in the name for the TR instance to be created.	tr01
ASN	Specify a BGP ASN (Autonomous System Number) for the TR instance. Valid range: 64512-65534 or 4200000000-4294967294. Assign different ASNs for TR instances in different regions. The TR automatically prepends its ASN to the AsPath attribute of routes published to other network instances.	64512
Multicast	Specify whether to enable multicast for the TR. Learn more	Disabled
Affiliated Project	Select the project to which the TR instance belongs.	default
Agreement	Follow the console guidance to review and accept the legal terms.	Check

Click Create to complete the creation of the TR instance.

tip

When you create a TR instance, the system automatically creates a system route table for it. Record the name of this system route table: tr01-rtb-sys. The following uses tr01-rtb-sys as an example.

Ⅱ. Create a TR custom route table

Click the name of the created TR instance.

In the zone below Basic information, select the Route Table tab.

Click Create Route Table to the right of the Route Table List, and type in tr01-rtb-set as the route table's name.

Click Create to complete the creation of the TR route table.

Ⅲ. Create a network instance attachment and configure routing

Create two network instance attachments to connect to vpc01 and vpc02 separately by the following steps.

In the section below Basic information, select the Intra-region attachments tab.

Click Create attachment, and complete the basic configuration for the network instance attachment based on the table below.

Parameter	Description	Example value (Attach vpc01)	Example value (Attach vpc02)
Basic information
TR	Defaults to the selected TR instance, requiring no manual configuration.	tr01	tr01
Region	Defaults to the same region as the TR instance. No manual configuration required.	China (Guangzhou)	China (Guangzhou)
Name	The name of the network instance attachment to be created.	attach-vpc01	attach-vpc02
Instance
Attachment type	Select the type for the network instance attachment to be created.	VPC	VPC
VPC	Select the VPC instance to be connected.	vpc01	vpc02
Attachment point configuration
Availability Zone and Subnet	Select the entry point where TR connects to the VPC. Select the availability zone and then the subnet, and set the selected availability zone as the default availability zone.	Availability Zone A, subnet01	Availability Zone A, subnet02

Complete the route configuration for the network instance attachment based on the table below.

Parameter	Description	Example value (Attach vpc01)	Example value (Attach vpc02)
Association forwarding	The TR will forward traffic from the related network instance based on the route table associated with this network instance attachment. tip Take attach-vpc01 as an example. The TR forwards traffic from vpc01 based on tr01-rtb-sys.	Enabled, tr01-rtb-sys	Enabled, tr01-rtb-sys
Route learning	The selected TR route table automatically learns the routes of the network instance and generates routes whose next hop is the corresponding network instance attachment. tip Take attach-vpc01 as an example. After enabling route learning, the TR route table (tr01-rtb-set) automatically generates routes whose destinations are vpc01 subnets and the next hop is attach-vpc01.	Enabled, tr01-rtb-set	Enabled, tr01-rtb-set
Auto Publish Route	Enabling auto publishing will automatically synchronize routes from the TR route table associated with this network instance attachment to all route tables within the VPC. These synchronized routes are marked as system routes. tip Take attach-vpc01 as an example. After enabling auto publishing, the system automatically synchronizes the routes from tr01-rtb-sys to all route tables within vpc01. These synchronized routes are system routes.	Enabled	Enabled

Click Buy now to complete the action.

IV. View TR and VPC routes

View routes of TR route tables (tr01-rtb-sys and tr01-rtb-set) in sequence.

Currently, no routes exist in tr01-rtb-sys.

The routes in tr01-rtb-set are listed in the following table.

Destination CIDR	Next Hop	Status	Route type	Attachment type	Instance
192.168.16.0/24	attach-vpc02	Available	Route learning	VPC	vpc02
192.168.0.0/24	attach-vpc01	Available	Route learning	VPC	vpc01

View routes of the vpc01 and vpc02 route tables in sequence to confirm no changes.

Since the routes in tr01-rtb-sys are automatically published to the vpc01 and vpc02 route tables, routes in the vpc01 and vpc02 route tables are unchanged.

Step 2: Configure a TR instance in China (Beijing) (Account A)

I. Create a TR instance

Back to the TR Instances page, and select the target project and region in the top menu bar.

Click Create TR and configure related parameters based on the table below.

Parameter	Description	Example
Region	Select a region closer to your service for shorter network delays and faster access. Cloud resources in different regions are isolated by default on private networks.	China (Beijing)
Name	Type the name for the TR instance to be created.	tr02
ASN	Specify a BGP ASN for the TR instance. Valid range: 64512-65534 or 4200000000-4294967294. Assign different ASNs for TR instances in different regions. The TR automatically prepends its ASN to the AsPath attribute of routes published to other network instances.	64513
Multicast	Specify whether to enable multicast for the TR. Learn more	Disable
Affiliated Project	Select the project to which the TR instance belongs.	default
Agreement	Follow the console guidance to review and accept the legal terms.	Checke

Click Create to complete the creation of the TR instance.

tip

When you create a TR instance, the system automatically creates a system route table for it. Record the name of this system route table: tr02-rtb-sys. The following uses tr02-rtb-sys as an example.

II. Create instance sharing

Click the account avatar in the upper right corner.

Select Tools > Resource.

In the left-side navigation pane, select Resource sharing > Shared by me.

In the top menu bar, select your target region.

On the Shared unit tab, click Create shared unit and configure the parameters based on the table below.

Parameter	Description	Example
Unit name	Type a name for the shared unit that is easy to identify.	Share TR
Region	Region defaults to the region selected in the top menu bar. To modify, reselect the region in the top menu bar.	China (Beijing)
product	Select the Transit Router - TR instance.	Transit Router - TR instance.
Resource ID	Type in the ID of the TR to be shared, then search and check it.	Select the Transit Router (tr01)

Click Next to associate sharing permissions.

TR sharing permissions are system-defined and cannot be modified. For default supported actions, see Instructions.

Click Next to associate shared users.

Parameter	Description	Example
Resource user	Choose a method for resource sharing. Allow sharing with any account: Share the TR with any VolcanoEngine root account. Only allow sharing with enterprises and organizations: Share the TR only with VolcanoEngine root accounts in the same enterprise organization.	Allow sharing with any account
User type	Select the root account.	Account
User ID	Type the ID of Account B.	2100****25

Click Next to confirm that the resources, associated permissions, and shared users are correct.

Click Confirm to complete the action.

Step 3: Accept sharing invitation (Account B)

Use Account B to log in to the Resource management console.

In the top menu bar, select the region to which the shared TR belongs.

Click Accept to the right of the shared unit to complete the action.

Click Accept to the right of the shared TR instance to confirm the sharing information.

Click Accept to complete the action.

Upon acceptance, the status of this shared TR instance updates from Pending acceptance to Accepted.

Step 4: Create a network instance attachment and configure routing (Account B)

On the TR instance list page, click the name of the created TR instance.

In the section below Basic information, select the Intra-region attachment tab.

Click Create attachment, and complete the basic configuration for the network instance attachment based on the table below.

Parameter	Description	Example value (Attach vpc03)
Basic information
TR	Defaults to the selected TR instance, requiring no manual configuration.	tr02
Region	Defaults to the same region as the TR instance. No manual configuration required.	China (Beijing)
Fee payer	Defaults to the same fee payer as the TR instance. No manual configuration required.	Network instance account
Name	The name of the network instance attachment to be created.	attach-vpc03
Instance
Attachment type	Select the type for the network instance attachment to be created.	VPC
VPC	Select the VPC instance to be connected.	vpc03
Attachment point configuration
Availability Zone and Subnet	Select the entry point where TR connects to the VPC. Select the availability zone and then the subnet, and set the selected availability zone as the default availability zone.	Availability Zone A, subnet03

Complete the route configuration for the network instance attachment based on the table below.

Parameter	Description	Example value (Attach vpc03)
Association forwarding	The TR forwards traffic from vpc03 based on the route table (tr02-rtb-sys) associated with this network instance attachment. At this point, the TR route table contains no routes and only specifies sources for traffic forwarding. To actually enable traffic forwarding, configure destinations for the TR route table via route learning or static routes.	Enabled, tr02-rtb-sys
Route learning	The selected TR route table (tr02-rtb-sys) automatically learns the routes of vpc03, and generates entries with the destination as vpc03 subnets and the next hop as attach-vpc03.	Enabled, tr02-rtb-sys
Auto Publish Route	After enabling auto publishing, the system automatically synchronizes the routes from tr02-rtb-sys to all route tables within vpc03. These synchronized routes are system routes.	Enable

Click Buy now to complete the action.

View the routes in tr02-rtb-sys, as shown in the table below.

Destination CIDR
Next Hop
Status
Route type
Attachment type
Instance
192.168.32.0/24
attach-vpc03
Available
Route learning
VPC
vpc03

View routes in the vpc03 route table to confirm no changes.

Since the routes in tr02-rtb-sys are automatically published to the vpc03 route table. This TR route table contains no routes whose Next Hop is not vpc03, so routes in the vpc03 route table are unchanged.

Step 5: Configure inter-region bandwidth (Account A)

I. Create a bandwidth package

Use Account A to log in to the Transit Router console.

In the left-side navigation pane, select Bandwidth Package.

Click Create bandwidth package, and configure the bandwidth package based on the table below.

Parameter	Description	Example
Basic information
Billing method	The billing method for the bandwidth package to be created. Default: Subscription.	Subscription
Name	Type the name for the bandwidth package to be created.	trbp01
Bandwidth configuration
Interoperability area	The bandwidth package requires interoperable local and peer areas.	China Mainland - China Mainland
bandwidth	Specify a bandwidth cap for the bandwidth package. Valid range: 2 to 10000. Unit: Mbps.	2Mbps
Purchase time	Select the purchase duration for the bandwidth package.	1 month
Automatic renewal	Specify whether to enable automatic renewal. By default, it is disabled.	Unchecked
More information
Project	Specify the project to which the bandwidth package belongs.	default

In the right-side Configuration details box, follow the console guidance to review and accept the legal terms.

Click Submit order to complete the action.

Ⅱ. Create an inter-region attachment and configure routing

In the top menu bar, select the target project and region. The following example is a default project in China (Guangzhou).

In the left-side navigation pane, select Transit Router and click the name of the target TR instance.

In the section below Basic information, select the Inter-region attachment tab.

Click Create inter-region attachment and configure basic information based on the table below.

Parameter	Description	Example
Basic information
TR	Defaults to the selected TR instance, requiring no manual configuration.	tr01
Region	Defaults to the same region as the TR instance. No manual configuration required.	China (Guangzhou)
Name	The name for the inter-region attachment to be created.	attach-Inter-region
Instance
Attachment type	Inter-region attachments only support TR instances.	TR
Peer region	Regions that require connectivity across regions.	China (Beijing)
Instance	Select the TR instance in the peer region based on the project.	tr02
Bandwidth Package	Specify whether to allocate bandwidth for the inter-region attachment. If Add to bandwidth package is checked, select the bandwidth package based on the project and set the bandwidth.	Checked, trbp01, 2 Mbps

Configure route information for the inter-region attachment based on the table below.

Parameter	Description	Example
Local TR association forwarding	The TR forwards traffic from this inter-region attachment based on the associated route table (tr01-rtb-sys). Next, you need to configure the destination for this TR route table.	Enabled, tr01-rtb-set
Peer TR association forwarding	The TR forwards traffic from this inter-region attachment based on the associated route table (tr02-rtb-sys). Next, you need to configure the destination for this TR route table.	Enabled, tr02-rtb-sys
Local TR route learning	Enabling Local TR route learning means the specified Local TR route table will automatically learn the routes of Remote TR, and generate entries with the next hop setting as the inter-region attachment.	Enabled, tr01-rtb-sys
Peer TR route learning	Enabling Remote TR route learning means the specified Remote TR route table will automatically learn the routes of Local TR, and generate entries with the next hop setting as the inter-region attachment.	Enabled, tr02-rtb-sys

Click Create to complete the action.

Ⅲ. View TR and VPC routes

View routes in TR route tables (tr01-rtb-sys and tr02-rtb-sys) in sequence, as shown in the table below.

Route table name	Destination CIDR	Next Hop	Status	Route type	Attachment type	Instance
tr01-rtb-sys	192.168.32.0/24	attach-Inter-region	Available	Route learning	TR	tr02
tr02-rtb-sys	192.168.32.0/24	attach-vpc03	Available	Route learning	VPC	vpc03
		192.168.0.0/24	attach-Inter-region	Available	Route learning	TR	tr01
		192.168.16.0/24	attach-Inter-region	Available	Route learning	TR	tr01

View the routes in the vpc01 and vpc02 route tables in sequence, as shown in the table below.

VPC route table	Destination CIDR	Status	Next Hop type	Next Hop
vpc01	192.168.32.0/24	Available	TR	tr01
		192.168.0.0/24	Available	InnerSubnet	System default
		100.64.0.0/10	Available	System	System default
vpc02	192.168.32.0/24	Available	TR	tr01
		192.168.16.0/24	Available	InnerSubnet	System default
		100.64.0.0/10	Available	System	System default

Step 6: View VPC routes (Account B)

View the routes in the vpc03 route table, as shown in the table below.

Destination CIDR	Status	Next Hop type	Next Hop
192.168.0.0/20	Available	TR	tr02
192.168.16.0/20	Available	Transit Router (TR)	tr02
192.168.32.0/24	Available	InnerSubnet	System default
100.64.0.0/10	Available	System	System default

Verification

The following verification steps take a Linux-based ECS as an example:

Remotely log in to the ECS instance in vpc01. For procedure, see Logging on to a Linux instance.

Execute the ping command to connect the private IP addresses of respective ECS instances in vpc02 and vpc03, verifying network connectivity.

The ECS instances in vpc01 and vpc02 are mutually isolated and cannot ping each other.

The ECS instances in vpc01 and vpc03 can mutually communicate and ping successfully.

Similarly, remotely log in to the ECS instances in vpc02 and vpc03 to verify connectivity between vpc02, vpc03, and another VPC.

Last updated: 2026.09.01 11:37:10
