Implementing private interconnectivity and isolation between different VPCs (cross-account, same region)

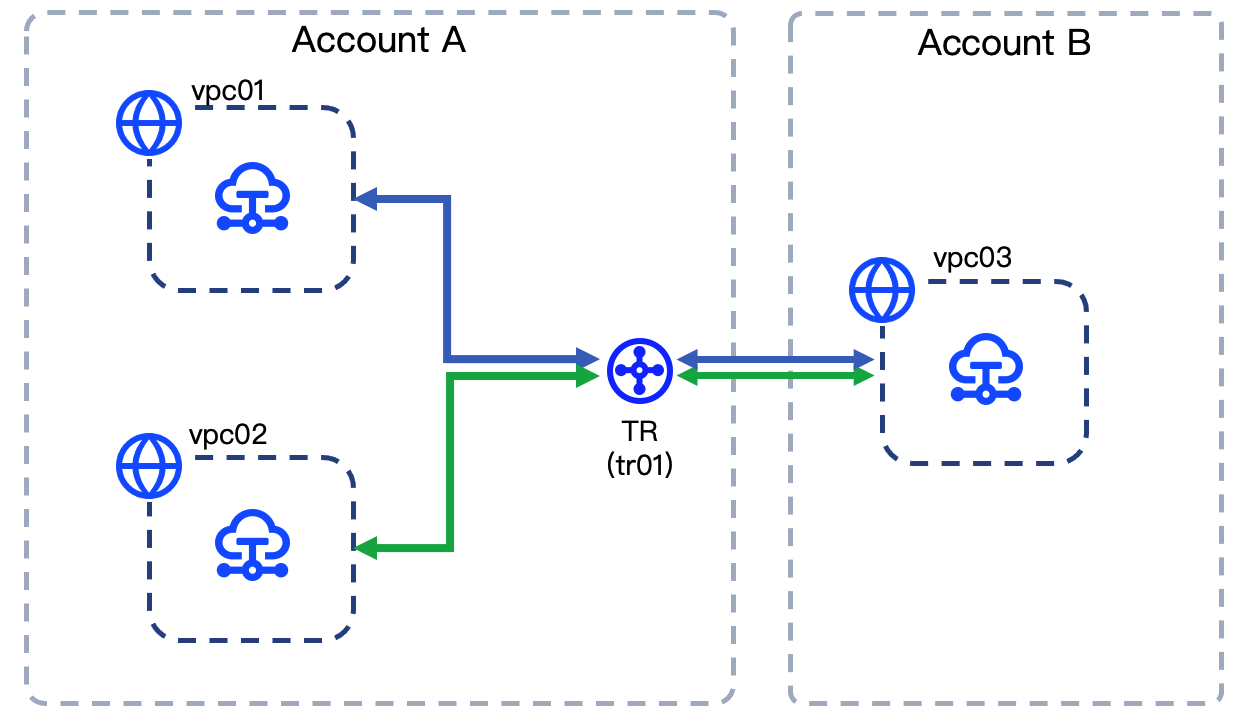

This topic describes how to use Transit Routers (TRs) to implement interconnectivity between two VPCs (vpc01 and vpc02) under Account A and another VPC (vpc03) under Account B in the same region. After connecting, both vpc01 and vpc02 can communicate with vpc03 via TR, but vpc01 and vpc02 cannot mutually communicate, as shown below.

Prerequisites

You have created three Virtual Private Clouds (VPCs) and their subnets. For procedure, see Building an IPv4 VPC.

tip

Ensure that neither VPC contains conflicting subnets. That is, no duplicate or overlapping CIDR blocks exist.

You have created Elastic Compute Service (ECS) instances in the three VPCs. For procedure, see Buying ECS instances.

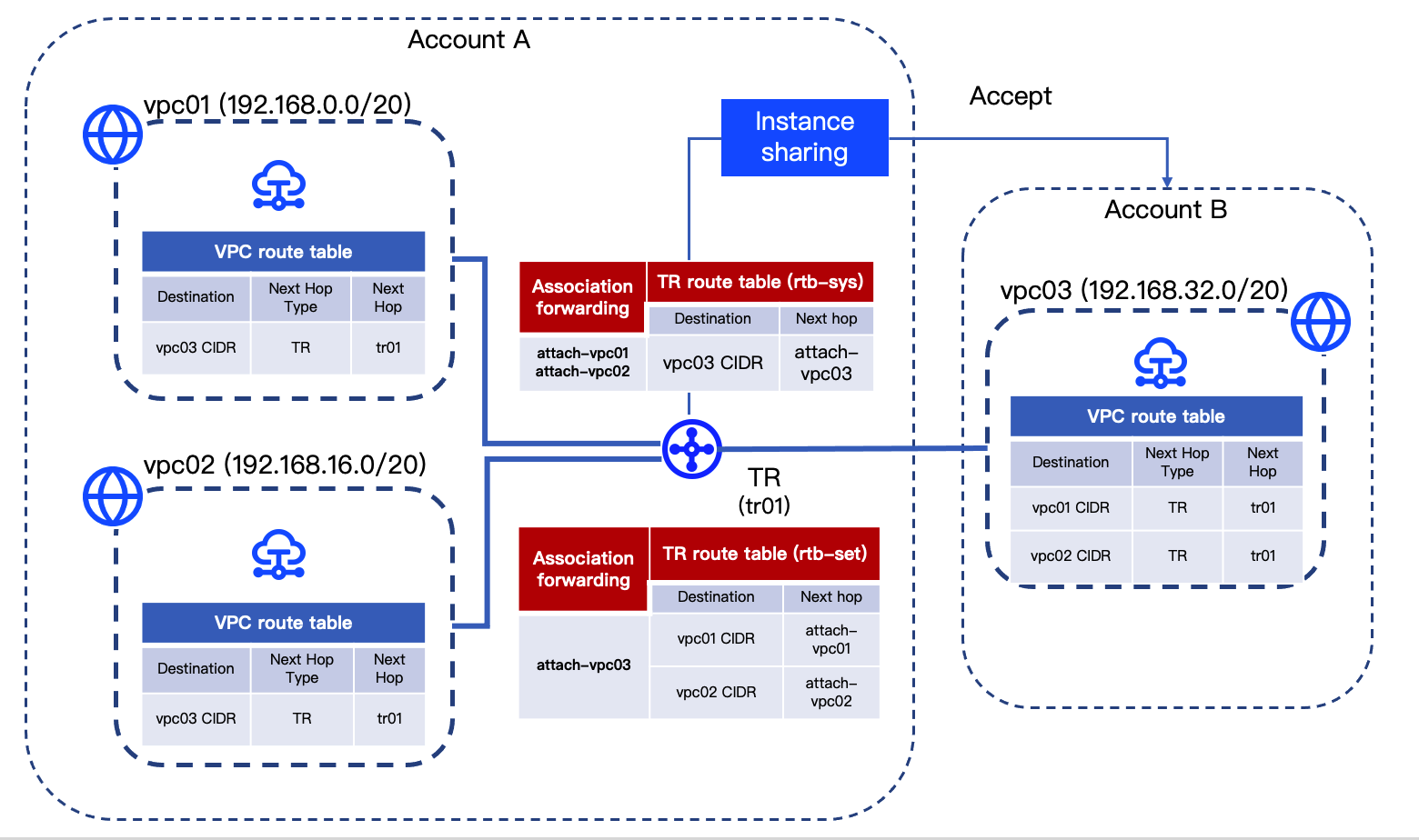

Routing planning

A single TR instance can use the same route table to forward traffic from multiple network instances that share a common destination. Thus, in this example, the TR uses one route table for forwarding from vpc01/vpc02 to vpc03, and a separate route table for the return path from vpc03 to vpc01/vpc02. This design necessitates at least two route tables, as illustrated in the following diagram.

tip

Routes in the VPC route tables illustrated above can be manually configured or automatically synchronized. This example uses auto publishing. To manually configure VPC routes, see Achieving interconnectivity and isolation between VPCs.

Configuration procedures

Step 1: Configure a TR instance (Account A): Use Account A to complete the following TR configuration.

Create a TR instance: Create a TR instance to host the TR service.

Create a TR custom route table: Create a custom route table to receive and forward network traffic along with the TR system route table.

Create a network instance attachment and configure routing: Create two network instance attachments to connect the two VPCs under the same account. Configure association forwarding and route learning for those attachments.

View TR and VPC routes: Check that the routes of the TR instance and two VPCs meet expectations.

Create instance sharing (Account A): Use Account A to create a sharing unit and share the TR instance with Account B.

Accept sharing invitation (Account B): Use Account B to accept the TR instance shared by Account A.

Create a network instance attachment and configure routing (Account B): Use Account B to create a network instance attachment on the shared TR instance, connecting the shared TR instance to vpc03 under this account. Configure association forwarding and route learning for it to automatically generate routes to vpc03 in the TR system route table.

Configure association forwarding for the TR custom route table (Account A): Use Account A to configure association forwarding for the cross-account network instance attachment, enabling traffic from vpc03 to be forwarded via the TR custom route table.

Verification: Run ping to verify the connectivity between ECS instances in different VPCs to ensure that the VPCs are connected and isolated as expected.

Configuration procedures

Step 1: Configure a TR instance (Account A)

Ⅰ. Create a TR instance

Use Account A to log in to the Transit Router console.

In the top menu bar, select the target project and region.

Click Create TR and configure related parameters based on the table below.

Parameter	Description	Example
Region	Select a region closer to your service for shorter network delays and faster access. Cloud resources in different regions are isolated by default on private networks.	China (Guangzhou)
Name	Type in a name for the TR instance.	tr01
ASN	Specify a BGP ASN (Autonomous System Number) for the TR instance. Valid range: 64512-65534 or 4200000000-4294967294. Assign different ASNs for TR instances in different regions. The TR automatically prepends its ASN to the AsPath attribute of routes published to other network instances.	64512
Multicast	Specify whether to enable multicast for the TR. Learn more	Unchecked
Affiliated Project	Select the project to which the to-be-created TR instance belongs.	default
Agreement	Follow the console guidance to review and accept Legal.	Checked

Click Create to complete the action.

tip

When you create a TR instance, the system automatically creates a system route table for it. Record the name of this system route table: rtb-sys. The following uses rtb-sys as an example.

Ⅱ. Create a TR custom route table

Click the name of the target TR instance.

In the section below Basic information, select the Route Table tab.

Click Create Route Table to the right of Route Table List, and type in rtb-set as the route table name.

Click Create to complete the action.

Ⅲ. Create a network instance attachment and configure routing

Create two network instance attachments using the following steps. These will connect the TR instance to vpc01 and vpc02 under Account A separately.The configurations for these attachments are specified in the configuration table's Example value (Attach vpc01) and Example value (Attach vpc02) columns.

In the section below Basic information, select the Intra-region attachment tab.

Click Create attachment, and complete the basic configuration for the network instance attachment based on the table below.

Parameter	Description	Example value (Attach vpc01)	Example value (Attach vpc02)
Basic information
TR	Defaults to the selected TR instance, requiring no manual configuration.	tr01	tr01
Region	Default to the same region as the TR instance. No manual configuration required.	China (Guangzhou)	China (Guangzhou)
Name	The name of the network instance attachment to be created.	attach-vpc01	attach-vpc02
Instance
Attachment type	Select the type for the network instance attachment to be created.	VPC	VPC
VPC	Select the VPC instance to be connected.	vpc01	vpc02
Attachment point configuration
Availability Zone and Subnet	Select the entry point where TR connects to the VPC. Select the availability zone and then the subnet, and set the selected availability zone as the default availability zone.	China (Guangzhou) A, subnet01	Availability zone A, subnet02

Complete the route configuration for the network instance attachment based on the table below.

Parameter	Description	Example value (Attach vpc01)	Example value (Attach vpc02)
Association forwarding	The TR will forward traffic from the related network instance based on the route table associated with this network instance attachment. tip Take attach-vpc01 as an example. After enabling association forwarding, the TR forwards traffic from vpc01 based on rtb-sys.	Enabled, rtb-sys	Enabled, rtb-sys
Route learning	After enabling route learning, the TR route table will automatically learn routes of the network instance, and generate entries with the destination as VPC subnets and the next hop as this network instance attachment. tip Take attach-vpc01 as an example. After enabling route learning, the TR route table (rtb-set) automatically generates routes whose destinations are vpc01 subnets and the next hop is attach-vpc01.	Enabled, rtb-set	Enabled, rtb-set
Auto Publish Route	Enabling auto publishing will automatically synchronize routes from the associated TR route table to all route tables within the selected VPC. These synchronized routes are marked as VPC system routes. tip Take attach-vpc01 as an example. After enabling auto publishing, the system automatically synchronizes the routes from rtb-sys to all route tables within vpc01. These synchronized routes are system routes.	Enabled	Enabled

Click Buy now to complete the action.

Ⅳ. View TR and VPC routes

View routes of TR route tables (rtb-sys and rtb-set) in sequence.

Currently, no routes exist in rtb-sys.

The routes in rtb-set are listed in the following table.

Destination CIDR	Next Hop	Status	Route type	Attachment type	Instance
192.168.0.0/24	attach-vpc01	Available	Automatic learning	VPC	vpc01
192.168.16.0/24	attach-vpc02	Available	Automatic learning	VPC	vpc02

View routes of the vpc01 and vpc02 route tables in sequence to confirm no changes.

Since the routes in rtb-sys are automatically published to the vpc01 and vpc02 route tables, routes in the vpc01 and vpc02 route tables are unchanged.

Step 2: Create instance sharing (Account A)

Click the account avatar in the upper right corner.

Select Tools > Resource.

In the left-side navigation pane, select Resource sharing > Shared by me.

In the top menu bar, select your target region.

On the Shared unit tab, click Create shared unit and configure the parameters based on the table below.

Parameter	Description	Example
Unit name	Type a name for the shared unit that is easy to identify.	Share TR
Region	Region defaults to the region selected in the top menu bar. To modify, reselect the region in the top menu bar.	China (Guangzhou)
product	Select the Transit Router - TR instance.	Transit Router - TR instance.
Resource ID	Type in the ID of the TR to be shared, then search and check it.	Select the Transit Router (tr01)

Click Next to associate sharing permissions.

TR sharing permissions are system-defined and cannot be modified. For default supported actions, see Instructions.

Click Next to associate shared users.

Parameter	Description	Example
Resource user	Choose a method for resource sharing. Allow sharing with any account: Share the TR with any VolcanoEngine root account. Only allow sharing with enterprises and organizations: Share the TR only with VolcanoEngine root accounts in the same enterprise organization.	Allow sharing with any account
User type	Select the root account.	main account
User ID	Type the ID of Account B.	2100****25

Click Next to confirm that the resources, associated permissions, and shared users are correct.

Click Confirm to complete the action.

Step 3: Accept sharing invitation (Account B)

Use Account B to log in to the Resource management console.

In the top menu bar, select the region to which the shared TR belongs.

Click Accept to the right of the shared unit to complete the action.

Click Accept to the right of the shared TR instance to confirm the sharing information.

Click Accept to complete the action.

Upon acceptance, the status of this shared TR instance updates from Pending acceptance to Accepted.

Step 4: Create a network instance attachment and configure routing (Account B)

On the TR instance list page, click the name of the shared TR instance.

In the section below Basic information, select the Intra-region attachment tab.

Click Create attachment, and complete the basic configuration based on the table below.

Parameter	Description	Example
Basic information
TR	Defaults to the selected TR instance, requiring no manual configuration.	tr01
Region	Defaults to the same region as the TR instance. No manual configuration required.	China (Guangzhou)
Fee payer	Defaults to the same fee payer as the TR instance. No manual configuration required.	Network instance account
Name	The name for the network instance attachment to be created.	attach-vpc03
Instance
Attachment type	Select the type for the network instance attachment to be created.	VPC
VPC	Select the VPC instance to be connected.	vpc03
Attachment point configuration
Availability Zone and Subnet	Select the entry point where TR connects to the VPC. Select the availability zone and then the subnet, and set the selected availability zone as the default availability zone.	Availability zone A, subnet03

Complete the route configuration based on the table below.

Parameter	Description	Example
Association forwarding	If association forwarding is enabled, the TR forwards traffic from the network instance based on its system route table by default. You cannot specify other TR route tables. In this example, traffic from vpc03 is forwarded based on the TR custom route table (rtb-set), so the association forwarding is disabled. Next, you need to use Account A to configure association forwarding for this network instance attachment in the TR custom route table (rtb-set).	Disabled
Route learning	After you enable route learning, the TR system route table (rtb-sys) automatically learns the routes of vpc03 and generates entries with the destination as vpc03 subnets and the next hop as attach-vpc03.	Enabled, rtb-sys
Auto Publish Route	When you enable auto publishing, the system automatically synchronizes routes from the associated TR route table to all route tables within vpc03. These synchronized routes are marked as VPC system routes. tip In this example, no routes are propagated to the vpc03 route table because the association forwarding is not enabled. Once you use Account A to configure a TR route table for attach-vpc03 for association forwarding, the routes in this TR route table will be automatically propagated to the vpc03 route table.	Enabled

Click Buy now to complete the action.

View routes of TR route tables (rtb-sys and rtb-set) in sequence.

The routes in rtb-set remain unchanged.

The routes in rtb-set are listed in the following table.

Destination CIDR
Next Hop
Status
Route type
Attachment type
Instance
192.168.32.0/24
attach-vpc03
Available
Automatic learning
VPC
vpc03

View routes in the vpc01, vpc02 and vpc03 route tables in sequence, as shown in the table below.

Since the network instance attachment does not enable association forwarding, no routes exist in the vpc03 route table.

Because vpc01 and vpc02 route tables automatically learn routes from rtb-sys, the routes in vpc01 and vpc02 route tables are shown in the table below.

VPC route table	Destination CIDR	Status	Next Hop type	Next Hop
vpc01	192.168.32.0/24	Available	TR	tr01
		192.168.0.0/24	Available	InnerSubnet	System default
		100.64.0.0/10	Available	System	System default
vpc02	192.168.32.0/24	Available	TR	tr01
		192.168.16.0/24	Available	InnerSubnet	System default
		100.64.0.0/10	Available	System	System default

Step 5: Configure association forwarding for the TR custom route table (Account A)

Use Account A to log in to the Transit Router console.

Click the name of the target TR instance.

In the section below Basic information, select the Route Table tab.

Click the name of the TR custom route table (rtb-set) and select the Association forwarding tab.

Click Create association forwarding and select the network instance attachment (vpc03).

Click Create to complete the action.

View routes of TR route tables (rtb-sys and rtb-set) in sequence to confirm no changes.

View the route entries of vpc03, as shown in the table below.

Destination CIDR	Status	Next Hop type	Next Hop
192.168.0.0/24	Available	TR	tr01
192.168.16.0/24	Available	TR	tr01
192.168.32.0/24	Available	InnerSubnet	System default
100.64.0.0/10	Available	System	System default

Result validation

The following verification steps take a Linux-based ECS as an example:

Remotely log in to the ECS instance in vpc01. For procedure, see Logging on to a Linux instance.

Execute the ping command to connect the private IP addresses of respective ECS instances in vpc02 and vpc03, verifying network connectivity.

The ECS instances in vpc01 and vpc02 are mutually isolated and cannot ping each other.

The ECS instances in vpc01 and vpc03 can mutually communicate and can ping successfully.

Similarly, remotely log in to the ECS instances in vpc02 and vpc03 to verify connectivity between vpc02, vpc03, and another VPC.
