ESSD PL0 volumes

ESSD PL0 volumes

EBS offers ESSD PL0 volumes. This topic provides the use cases and performance details about these volumes.

Billing notes

ESSD PL0 volumes are billed based on their capacity. Billing begins when you create an ESSD PL0 volume. For more information, see Volume billing.

Volume performance

ESSD PL0 volumes provide only baseline performance and do not support additional performance. Specifically:

Performance metrics	Value
Maximum IOPS per volume	10,000
Formula to calculate IOPS per volume	IOPS = min{1,800 + 12 × Capacity (GiB), 10,000}
Maximum throughput per volume (MB/s)	180
Formula to calculate throughput per volume	Throughput = min{100 + 0.25 × Capacity (GiB), 180}
Average latency of single-path random writes (block size = 4K)	0.3–0.5 ms
Maximum capacity per volume (GiB)	System volume: 20–2,048 Data volume: 10–65,536
Data reliability	99.9999999% (9 nines)
API name	ESSD_PL0

Creating an ESSD PL0 volume

EBS lets you create an ESSD PL0 volume as either a system or data volume. Steps:

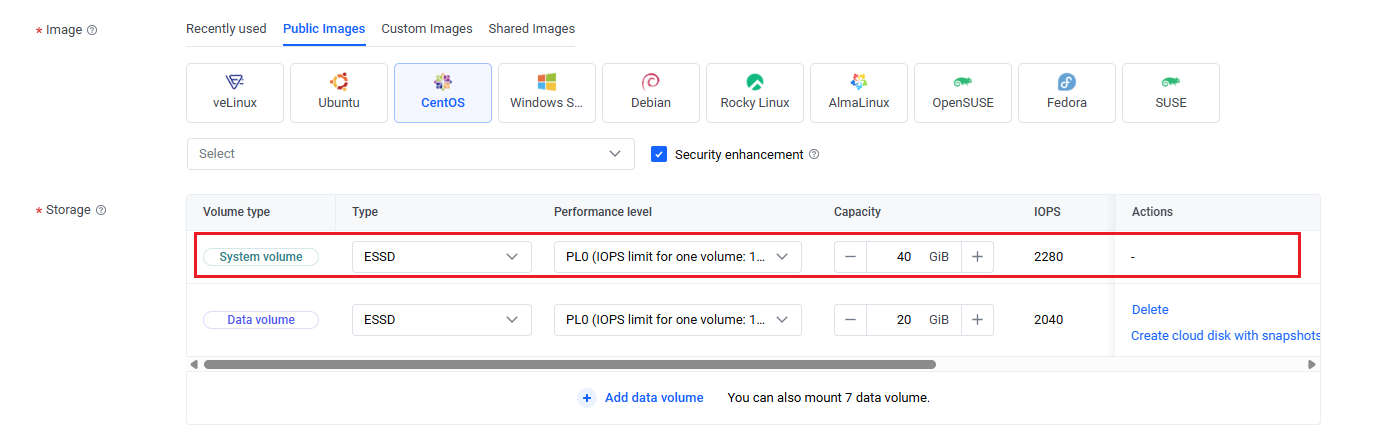

Creating an ESSD PL0 system volume

When creating an instance, set the system volume type to ESSD PL0. For more information, see Purchasing an instance by following the wizard.

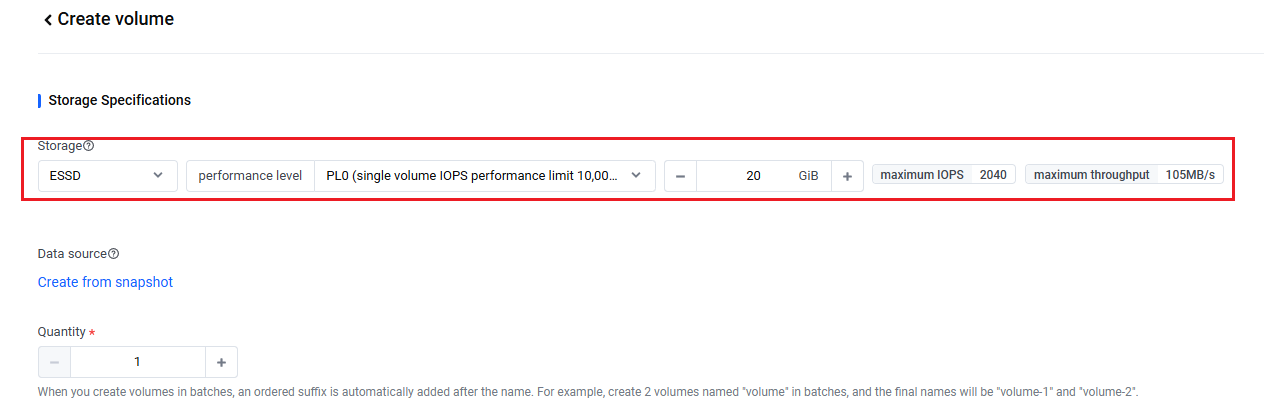

Creating an ESSD PL0 data volume

When creating a volume, set the data volume type to ESSD PL0. For more information, see Creating a volume. Alternatively, set the data volume type to ESSD PL0 when creating an instance. For more information, see Purchasing an instance by following the wizard.
