Import dashboard
TLS supports importing dashboards across regions and projects by adding a JSON script or configuring a form. The new dashboard retains all configuration information from the original dashboard. This topic describes usage limits and basic operations for importing dashboards.​
Prerequisites​
  • When importing via JSON, you need to obtain the JSON file from the source dashboard first. The JSON format must comply with TLS specifications. For details, see Dashboard JSON Model description.​
Notice​
To view the dashboard JSON script or download it as a file, you can go to the existing dashboard page and click the Settings icon and click JSON Model tab. ​
Limits​
  • When importing via JSON, the JSON file size can not exceed 5MB.​
  • Only dashboards from Volcanoengine TLS can be imported.​
Steps​
Import via JSON method​
  1. Log in to TLS console.​
  1. Select the region where log service is located from the top navigation bar.​
  1. In the left navigation bar, select Common functions > Dashboard.​

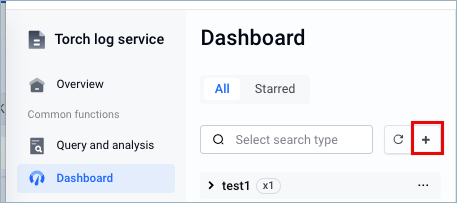

  1. In the dashboard list, click +.​
  • ​​​
  1. Click Import dashboard from JSON file and then configure dashboard information.​
  1. Set the basic configuration.​
  • ​
    Parameters​
    Description​
    Dashboard name​
    Set the name of the dashboard​
    Target project​
    Select the project for the new dashboard.​
    Description​
    Enter the dashboard description.​
    ​
  1. Configure the data source.​
  • TLS supports importing JSON scripts in the following two ways.​
  • Click Fill in the data source and enter the JSON script.​
  • Click Upload data source and upload the JSON file.​
  1. Replace the log topic.​

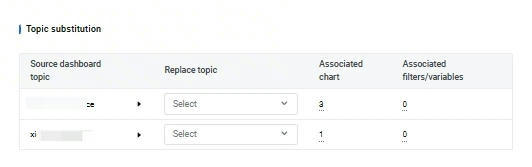

  • The Topic substitution section displays all source log topics linked to the dashboard, along with the associated charts, filters, and variables for each topic. If you click the specific value, you can view the corresponding chart name, filter name, and variable name.​
  • If you need to replace the log topic for a chart in the new dashboard, go to the Replace topic column and select a log topic from the current project.​
  • ​​​
  1. Click Create dashboard.​
Import via form.​
  1. Log in to TLS console.​
  1. Select the region where log service is located from the top navigation bar.​
  1. In the left navigation bar, select Common functions > Dashboard.​
  1. In the Dashboard list, click +.​
  • ​​​
  1. Click Import existing dashboard and configure dashboard details.​
  1. Set the basic configuration.​
  • ​
    Parameters​
    Description​
    Source region​
    Select the region of the source dashboard​
    Source project​
    Select the source project of the dashboard.​
    Source dashboard​
    Select the source dashboard.​
    Target project​
    Select the project for the new dashboard.​
    New dashboard name​
    Set the name of the new dashboard.​
    ​
  1. Replace the log topic.​
  • The Topic substitution section displays all source log topics linked to the dashboard, along with the associated charts, filters, and variables for each topic. If you click the specific value, you can view the corresponding chart name, filter name, and variable name.​
  • If you need to replace the log topic for a chart in the new dashboard, go to the Replace topic column and select a log topic from the current project.​
  • ​​​
  1. Click Create dashboard.​
