Description

This API uploads visible watermark templates.

Notes

The maximum size of a single rule body is 20KB, and up to 100 custom templates are allowed.

When used by a sub-account, the current bucket must have PutDataProcessTemplate permission granted.

Request syntax

Text watermark

PUT /?process_template&tag=Watermark HTTP/1.1​
Host: {BucketName}.tos-cn-beijing.volces.com​
Date: Fri, 30 Jul 2021 08:05:36 +0000​
Content-Type: application/json​
Content-Length: <length>​
Authorization: authorization string​
​
{​
  "Tag": "Watermark", // fixed identifier​
  "Name": "my-test-watermark", // user-defined name​
  "WatermarkConfig": {​
    "Type": "Text", // text watermark parameters;​
    "Pos": "TopRight", // reference position​
    "LocMode": "Relative", // offset mode​
    "Dx": 10, // horizontal offset​
    "Dy": 10, // vertical offset​
    "StartTime": 0, // text watermark start time in milliseconds, default 0​
    "EndTime": 10000, // text watermark end time in milliseconds, default 0 means video end time​
    "Text": { // text watermark settings, effective when Type is Text​
      "FontSize": 100, // font size​
      "FontType": "fangzhengheiti", // font type​
      "FontColor": "#FF0000", // font color​
      "Transparency": 20, // opacity, unit %​
      "Text": "hello world" // watermark content​
    }​
  }​
}​

Image watermark

Request parameters and headers

Name		Type	Required	Example value	Description
process_template	Query	String	Yes	-	Watermark template identifier, fixed as process_template, no value needed.
tag	Query	String	Yes	Watermark	Template type, the value is Watermark only in transparent watermark scenarios.

Request body elements

Name	Type	Required	Example value	Description
Tag	String	Yes	Watermark	Fixed identifier. The watermark template value can only be Watermark, and it must match the Query parameter tag.
Name	String	Yes	my-test-watermark	User-defined template name: Supports only a-z, A-Z, 0-9, _, -, and ., with a maximum length of 64 characters; must start and end with a-z, A-Z, or 0-9. No duplicate rules allowed.
WatermarkConfig	Container	Yes	-	Watermark template detail information.
Type	String	Yes	Text	Watermark type: Text: text watermark. Image: image watermark. Parent node: Watermark.
Pos	String	Yes	TopRight	Reference position (see watermark position description in the image below): TopRight. TopLeft. BottomRight. BottomLeft. Left. Right. Top. Bottom. Center. Parent node: Watermark.
LocMode	String	Yes	Relative	watermark offset mode, options are: Relativity: proportional. Absolute: fixed position. parent node: Watermark .
Dx	Integer	Yes	10	Horizontal offset. For image watermarks, if Background is true, when locMode is Relativity, the value is a percentage within [-300 0]; when locMode is Absolute, the value is in pixels within [-4096 0]. For image watermarks, if Background is false, when locMode is Relativity, the value is a percentage within [0 100]; when locMode is Absolute, the value is in pixels within [0 4096]. For text watermarks, when locMode is Relativity, the value is a percentage within [0 100]; when locMode is Absolute, the value is in pixels within [0 4096]. This parameter is invalid when Pos is Top, Bottom, or Center. Parent node: Watermark.
Dy	Integer	Yes	10	Vertical offset. For image watermarks, if Background is true and locMode is Relativity, the value is a percentage ranging from [-300 0]; if locMode is Absolute, the value is in pixels ranging from [-4096 0]. For image watermarks, if Background is false and locMode is Relativity, the value is a percentage ranging from [0 100]; if locMode is Absolute, the value is in pixels ranging from [0 4096]. For text watermarks, when locMode is Relativity, the value is a percentage ranging from [0 100]; when locMode is Absolute, the value is in pixels ranging from [0 4096]. When Pos is Left, Right, or Center, this parameter is invalid. Parent node: Watermark.
StartTime	Integer	No	0	Watermark start time in milliseconds, default is 0. Parent node: Watermark.
EndTime	Integer	No	10000	Watermark end time in milliseconds. Default is 0 (indicating it follows the video end time). Must be ≥ StartTime. Parent node: Watermark.
Text	Container	No	-	Text watermark details. Required when Type is Text. Parent node: Watermark.
FontSize	Integer	Yes	100	Font size in px, value range [5, 100]. Parent node: Text.
FontType	String	Yes	fangzhengheiti	Font types, supporting the following fonts: wqy-zenhei: WenQuanYi Zen Hei. wqy-microhei: WenQuanYi Micro Hei. fangzhengshusong: Fangzheng Shusong. fangzhengkaiti: Fangzheng KaitI. fangzhengheiti: Fangzheng HeiTi. fangzhengfangsong: Fangzheng Fangsong. droidsansfallback：DroidSansFallback. Parent node: Text.
FontColor	String	Yes	#FF0000	Font color, hexadecimal RGB. Parent node: Text.
Transparency	Integer	Yes	20	watermark opacity, unit %, range [1, 100]. parent node: Text.
Text	String	Yes	hello world	Watermark text content, no more than 64 characters, supports Chinese, English, numbers, underscore (_), hyphen (-), and asterisk (*). Parent node: Text.
Image	Container	No	-	Image watermark details information. Type is required when Image . Parent node: Watermark .
Url	String	Yes	http://myhost.com/my-watermark-img	The watermark image URL cannot be empty. Parent node: Image.
Mode	String	Yes	Fixed	Size mode: Original: original size. Proportion: scale proportionally. Fixed: fixed size. Parent node: Image.
Width	Integer	No	3200	Watermark image width: When Mode is Original, setting watermark image width is not supported. When Mode is Proportion, unit is %, background image range: [100 300]; foreground image range: [1 100], relative to video width, max not exceeding 4096 px. When Mode is Fixed, unit is px, value range: [8, 4096]. If only Width is set, then Height is calculated based on the watermark image ratio. Parent node: Image.
Height	Integer	No	800	Watermark image height: When Mode is Original, setting the watermark image height is not supported. When Mode is Proportion, the unit is %, background image value range: [100 300]; foreground image value range: [1 100], relative to video height, max not exceeding 4096 px. When Mode is Fixed, the unit is px, value range: [8, 4096]. If only Height is set, Width is calculated according to the watermark image ratio.
Transparency	Integer	Yes	20	Watermark opacity, in %, value range [1, 100]. Parent node: Image.
Background	Bool	No	false	Whether it is a background image, the values are as follows: true. false . Parent node: Image.

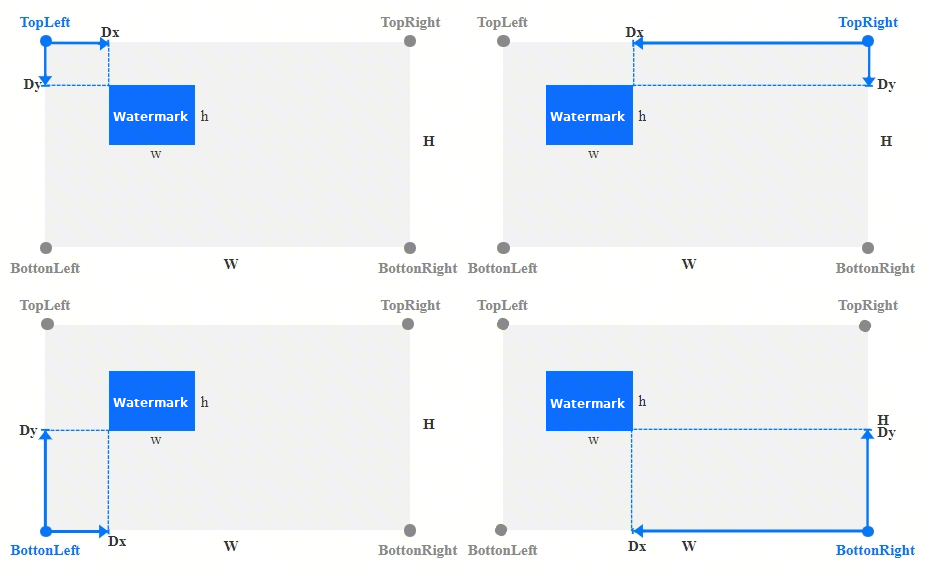

Watermark location description

Response headers

The response contains common headers. For more information, see Common Parameters.

Response body elements

Name	Type	Example value	Description
template_id	String	393161343761366633396119012ee2450b08	Unique ID for creating audio transcoding templates.

Sample request

Text watermark

Image watermark

Sample response
