Torch Object StorageBest PracticesChecking data integrityVerifying the integrity of uploaded objects
Copy page
Download PDFChecking data integrity
Verifying the integrity of uploaded objects
Copy pageDownload PDFVerifying the integrity of uploaded objects
You can verify the integrity of uploaded objects using Content-MD5, Content-SHA256, or CRC-64. This topic introduces validation flowcharts, sample codes, and comparisons of different methods.
Using Content-MD5
For simple uploads or multipart uploads via TOS APIs, the client calculates the MD5 checksum of the data to be uploaded and passes this value to TOS via request headers or form fields to ensure data integrity.

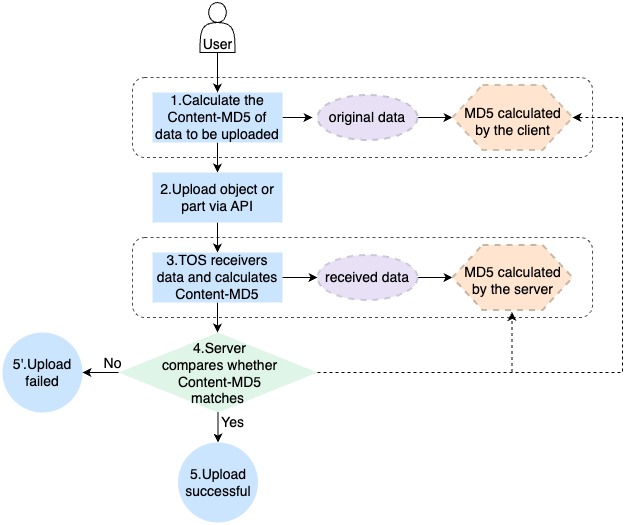

Flowchart
Code examples
Golang
Java
Python
package main
import (
"bytes"
"context"
"crypto/md5"
"encoding/base64"
"github.com/volcengine/ve-tos-golang-sdk/v2/tos"
)
func main() {
var (
accessKey = "your access key"
secretKey = "your secret key"
endpoint = "your endpoint"
region = "your region"
bucket = "bucketname"
key = "objectname"
)
client, err := tos.NewClientV2(endpoint, tos.WithRegion(region), tos.WithCredentials(tos.NewStaticCredentials(accessKey, secretKey)))
if err != nil {
panic(err)
}
data := []byte("hello world")
// Calculate the MD5 checksum
hash := md5.New()
hash.Write(data)
contentMD5 := base64.StdEncoding.EncodeToString(hash.Sum(nil))
// Upload object with the specified Content-MD5 header
input := &tos.PutObjectV2Input{}
input.Bucket = bucket
input.Key = key
input.Content = bytes.NewReader(data)
input.ContentMD5 = contentMD5
_, err = client.PutObjectV2(context.Background(), input)
if err != nil {
panic(err)
}
}
package com.volcengine.tos;
import com.volcengine.tos.auth.Credentials;
import com.volcengine.tos.auth.SignV4;
import com.volcengine.tos.auth.StaticCredentials;
import java.io.ByteArrayInputStream;
import java.io.InputStream;
import java.security.MessageDigest;
import java.util.Base64;
public class Main {
public static void main(String[] args) {
String endpoint = "your endpoint";
String accessKey = "your access key";
String secretKey = "your secret key";
String region = "your region";
String bucket = "bucketname";
String key = "objectname";
TOSClient client = new TOSClient(endpoint);
Credentials c = new StaticCredentials(accessKey, secretKey);
client.setCredentials(c);
client.setSigner(new SignV4(c, region));
String data = "hello world";
try {
// Calculate the MD5 checksum
MessageDigest md5 = MessageDigest.getInstance("MD5");
md5.update(data.getBytes());
String contentMD5 = Base64.getEncoder().encodeToString(md5.digest());
InputStream stream = new ByteArrayInputStream(data.getBytes());
client.putObject(bucket, key, stream, RequestOptions.withContentMD5(contentMD5));
} catch (Exception e) {
e.printStackTrace();
}
}
}
import base64
import hashlib
import tos
endpoint = 'your endpoint'
access_key = 'your access key'
secret_key = 'your secret key'
region = 'your region'
bucket = 'bucketname'
key = 'objectname'
data = 'hello world'
# Calculate the MD5 checksum
hash = hashlib.md5()
hash.update(data.encode())
content_md5 = base64.b64encode(hash.digest()).decode()
client = tos.TosClientV2(access_key, secret_key, endpoint, region)
try:
resp = client.put_object(bucket, key, content=data, content_md5=content_md5)
print(resp.status_code)
except Exception as e:
print(e)
Using Content-SHA256
This process for Content-SHA256 is the same as Content-MD5.

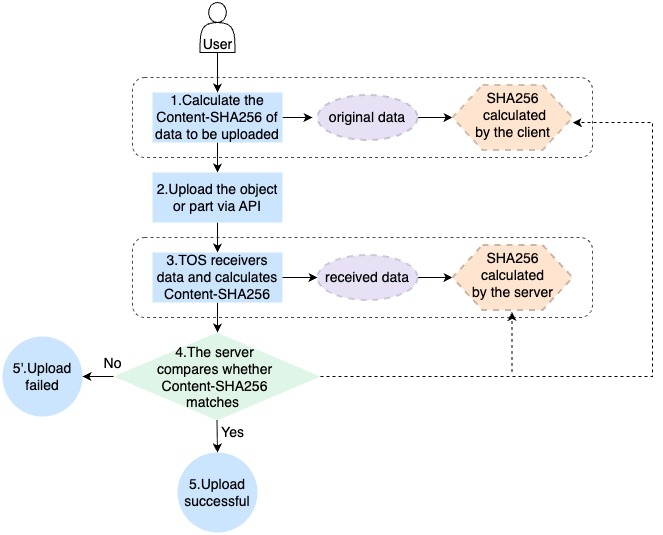

Flowchart
Code examples
Golang
Java
Python
package main
import (
"bytes"
"context"
"crypto/sha256"
"encoding/hex"
"github.com/volcengine/ve-tos-golang-sdk/v2/tos"
)
func main() {
var (
accessKey = "your access key"
secretKey = "your secret key"
endpoint = "your endpoint"
region = "your region"
bucket = "bucketname"
key = "objectname"
)
client, err := tos.NewClientV2(endpoint, tos.WithRegion(region), tos.WithCredentials(tos.NewStaticCredentials(accessKey, secretKey)))
if err != nil {
panic(err)
}
data := []byte("hello world")
// Calculate the SHA-256 checksum
hash := sha256.New()
hash.Write(data)
contentSHA256 := hex.EncodeToString(hash.Sum(nil))
// Upload object with the specified Content-SHA256 header
input := &tos.PutObjectV2Input{}
input.Bucket = bucket
input.Key = key
input.Content = bytes.NewReader(data)
input.ContentSHA256 = contentSHA256
_, err = client.PutObjectV2(context.Background(), input)
if err != nil {
panic(err)
}
}
package com.volcengine.tos;
import com.volcengine.tos.auth.Credentials;
import com.volcengine.tos.auth.SignV4;
import com.volcengine.tos.auth.StaticCredentials;
import com.volcengine.tos.model.object.GetObjectOutput;
import org.apache.commons.codec.binary.Hex;
import java.io.ByteArrayInputStream;
import java.io.InputStream;
import java.security.MessageDigest;
public class Main {
public static void main(String[] args) {
String endpoint = "your endpoint";
String accessKey = "your access key";
String secretKey = "your secret key";
String region = "your region";
String bucket = "bucketname";
String key = "objectname";
TOSClient client = new TOSClient(endpoint);
Credentials c = new StaticCredentials(accessKey, secretKey);
client.setCredentials(c);
client.setSigner(new SignV4(c, region));
String data = "hello world";
try {
MessageDigest sha256 = MessageDigest.getInstance("SHA-256");
sha256.update(data.getBytes());
String contentSHA256 = Hex.encodeHexString(sha256.digest());
InputStream stream = new ByteArrayInputStream(data.getBytes());
client.putObject(bucket, key, stream, RequestOptions.withContentSHA256(contentSHA256));
GetObjectOutput output = client.getObject(bucket, key);
output.getContent();
} catch (Exception e) {
e.printStackTrace();
}
}
}
import hashlib
import tos
endpoint = 'your endpoint'
access_key = 'your access key'
secret_key = 'your secret key'
region = 'your region'
bucket = 'bucketname'
key = 'objectname'
data = 'hello world'
# Calculate the SHA-256 checksum
hash = hashlib.sha256()
hash.update(data.encode())
content_sha256 = hash.digest().hex()
client = tos.TosClientV2(access_key, secret_key, endpoint, region)
try:
resp = client.put_object(bucket, key, content=data, content_sha256=content_sha256)
print(resp.status_code)
except Exception as e:
print(e)
Using CRC-64
For simple or multipart uploads via the TOS APIs, the client first calculates a CRC-64 checksum of the original data. Then, TOS calculates a CRC-64 checksum of the received data. Then, the server compares the two values to ensure the integrity of the uploaded data.
For multipart uploads, in addition to the aforementioned check, a composite checksum is calculated based on the individual checksums of each part. This value is then compared to the checksum of the entire object that the server returns to ensure the integrity of the final stored object.

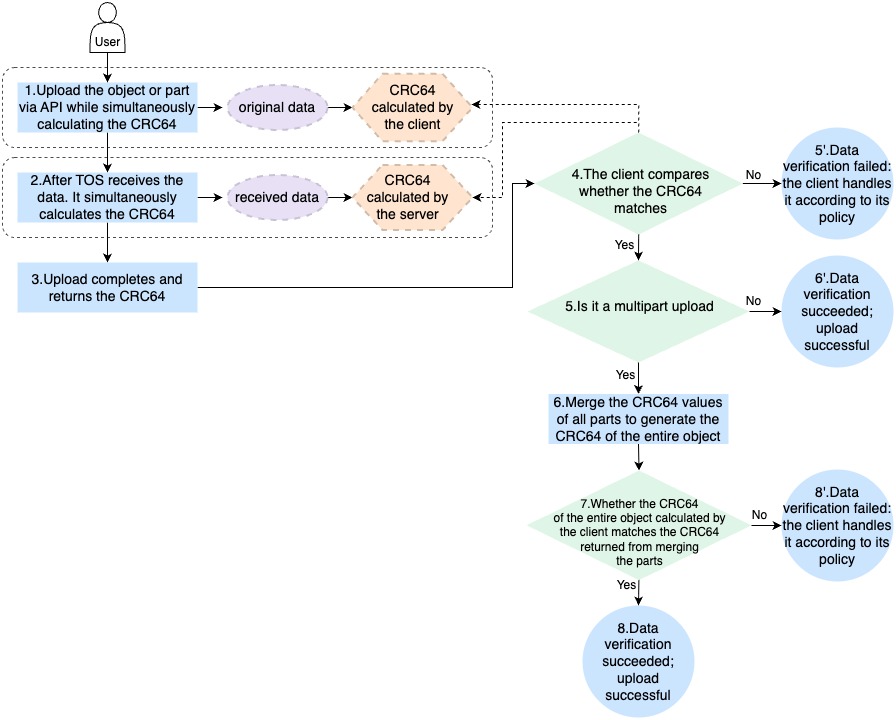

Flowchart
Code examples
Golang
Python
package main
import (
"bytes"
"context"
"hash"
"io"
"github.com/volcengine/ve-tos-golang-sdk/v2/tos"
)
type crc64Reader struct {
r io.Reader
h hash.Hash64
}
func (cr *crc64Reader) Read(p []byte) (n int, err error) {
n, err = cr.r.Read(p)
cr.h.Write(p[:n])
return n, err
}
func main() {
var (
accessKey = "your access key"
secretKey = "your secret key"
endpoint = "your endpoint"
region = "your region"
bucket = "bucketname"
key = "objectname"
)
client, err := tos.NewClientV2(endpoint, tos.WithRegion(region), tos.WithCredentials(tos.NewStaticCredentials(accessKey, secretKey)))
if err != nil {
panic(err)
}
resp, err := client.CreateMultipartUploadV2(context.Background(), &tos.CreateMultipartUploadV2Input{
Bucket: bucket,
Key: key,
})
if err != nil {
panic(err)
}
uploadID := resp.UploadID
parts := make([]tos.UploadedPartV2, 0, 3)
var crc64Final uint64
data := make([]byte, 1024*1024*5)
for i := 1; i <= 2; i++ {
input := &tos.UploadPartV2Input{}
input.Bucket = bucket
input.Key = key
input.UploadID = uploadID
input.PartNumber = i
crc64Hash := tos.NewCRC(tos.DefaultCrcTable(), 0)
input.Content = &crc64Reader{
r: bytes.NewReader(data),
h: crc64Hash,
}
output, err := client.UploadPartV2(context.Background(), input)
if err != nil {
panic(err)
}
crc64Once := crc64Hash.Sum64()
if output.HashCrc64ecma != crc64Once {
panic("crc64 not match")
}
crc64Final = tos.CRC64Combine(crc64Final, crc64Once, uint64(len(data)))
parts = append(parts, tos.UploadedPartV2{
PartNumber: input.PartNumber,
ETag: output.ETag,
})
}
output, err := client.CompleteMultipartUploadV2(context.Background(), &tos.CompleteMultipartUploadV2Input{
Bucket: bucket,
Key: key,
UploadID: uploadID,
Parts: parts,
})
if err != nil {
panic(err)
}
if output.HashCrc64ecma != crc64Final {
panic("crc64 not match")
}
}
from io import BytesIO
import os
import tos
endpoint = 'your endpoint'
access_key = 'your access key'
secret_key = 'your secret key'
region = 'your region'
bucket_name = 'bucketname'
key = 'objectname'
class Crc64IO(object):
def __init__(self, data):
self.data = data
self.crc64 = tos.utils.Crc64()
def __iter__(self):
return self
def __next__(self):
return self.next()
def next(self):
content = self.data.read(8 * 1024)
if content:
self.crc64.update(content)
return content
raise StopIteration
# Local file full path, e.g., usr/local/testfile.txt
file_name = 'usr/local/testfile.txt'
client = tos.TosClientV2(access_key, secret_key, endpoint, region, enable_crc=False)
try:
total_size = os.path.getsize(file_name)
part_size = 1024 * 1024 * 5
resp = client.create_multipart_upload(bucket_name, key)
upload_id = resp.upload_id
parts = []
crc64 = tos.utils.Crc64()
crc64_final = 0
# Multipart upload
with open(file_name, 'rb') as f:
part_number = 1
offset = 0
while offset < total_size:
num_to_upload = min(part_size, total_size - offset)
crc64_io = Crc64IO(SizeAdapter(f, num_to_upload, init_offset=offset))
part = client.upload_part(bucket_name, key, upload_id, part_number,
content=crc64_io)
if crc64_io.crc64.crc != part.hash_crc64_ecma:
raise Exception('crc64 not match')
crc64_final = crc64.combine(crc64_final, crc64_io.crc64.crc, num_to_upload)
parts.append(part)
offset += num_to_upload
part_number += 1
resp = client.complete_multipart_upload(bucket_name, key, upload_id, parts)
if crc64_final != resp.hash_crc64_ecma:
raise Exception('crc64 not match')
except tos.exceptions.TosClientError as e:
# The operation failed and a client exception was caught. This is usually due to invalid request parameters or a network exception.
print('fail with client error, message:{}, cause: {}'.format(e.message, e.cause))
except tos.exceptions.TosServerError as e:
# The operation failed and a server exception occurred. See the response for the error details.
print('fail with server error, code: {}'.format(e.code))
# Use the request ID for troubleshooting purposes. We strongly recommend including the request ID in the logs.
print('error with request id: {}'.format(e.request_id))
print('error with message: {}'.format(e.message))
print('error with http code: {}'.format(e.status_code))
print('error with ec: {}'.format(e.ec))
print('error with request url: {}'.format(e.request_url))
except Exception as e:
print('fail with unknown error: {}'.format(e))
Comparison of the different validation methods
Validation method | Content-MD5 | Content-SHA256 | CRC64 |
Validation method | Content-MD5 | Content-SHA256 | CRC64 |
Use cases |
|
|
|
Disadvantages |
|
| Data validation is performed on the client side, and the object has been saved to TOS. If validation fails, additional cleanup actions are required, such as overwriting or deleting the object. |
Supported APIs |
| ||
Recommendations |
| | |
Last updated: 2026.10.10 17:55:21
All rights reserved © Beijing Volcano Engine Technology Co., Ltd2024
