Quickly deploying quantized DeepSeek-R1 with TensorRT-LLM

This topic describes how to use Volcengine Kubernetes Engine (VKE) to quickly deploy an inference service for the quantized DeepSeek-R1 model based on TensorRT-LLM.

Solution introduction

This solution allows you to quickly deploy a large language model (LLM) of DeepSeek-R1 in a Kubernetes cluster.

DeepSeek-R1 model: Released by the Chinese AI startup DeepSeek, DeepSeek-R1 is an inference model trained on DeepSeek-V3-Base. It excels at mathematics, coding, and natural language reasoning, and has attracted widespread attention for its open-source availability, algorithmic innovation, and cost-effectiveness.

TensorRT-LLM: This is a high-performance deep learning inference optimization library launched by NVIDIA. It is focused on enhancing the inference speed and efficiency of LLMs on NVIDIA GPUs.

Deployment information

Model: DeepSeek-R1-W4AFP8

Inference engine: TensorRT-LLM

Instance specification: ecs.hpcpni3ln.45xlarge * 1

Support capabilities

Parallel strategy: TP and EP

Quantization technology: W4A8

Precision: FP8

Access: API Gateway (APIG)

Notes

In this example, many add-ons are used, which are dependent on each other and have complex configurations. To achieve the expected results, you must perform operations according to the guidance in this article.

To achieve the expected results and stay within the usage limits of VKE, follow the procedure in this article or use the recommended resources described here. If you need to use a different solution, contact your Volcano Engine account manager.

Do not use mGPU on GPU resources.

The complete deployment workflow depends on certain beta features from Volcano Engine. Contact your Volcengine account manager to request trial access to the following features:

Beta feature/resource	Product involved	Description
hpcpni3ln HPC-optimized instance	GPU Elastic Compute Service	The HPC instance, providing computing power. Because the DeepSeek model has a large number of parameters, it requires a GPU instance with a large amount of graphics memory, e.g., ecs.hpcpni3ln.45xlarge.
Capability of mounting nodes to local disks	Volcengine Kubernetes Engine	You can configure the local disk mounting in the VKE cluster.

Prerequisites

Creating an HPC cluster

The high-performance compute cluster is used to achieve logical isolation of HPC GPU instances (compute nodes). Instances in the same cluster are interconnected by Remote Direct Memory Access (RDMA) networks. For details, see Creating HPC clusters.

tip

The region and availability zone where the high-performance compute cluster is located needs to be consistent with the region and availability zone of the VKE nodes.

Creating a VKE cluster

The following parameters need to be configured as described in the table when creating a cluster by using the VKE. For details on other parameters, see Creating clusters.

Configuration item	Description
Cluster configuration
Kubernetes version	Select version v1.28 or later.
Network model	Select VPC-CNI.
Node pool configuration
Managed node pool	Enable Managed node pool.
Availability zone	Same availability zone as the High-Performance Compute Cluster.
Instance type	Select ecs.hpcpni3ln, the GPU Accelerated specification. Ensure you already obtained permission for trial of the beta version.
High Performance Computing Cluster	Select the HPC cluster you created.
Number of nodes	1 node.
Data volume	Configure the following two data volumes: ESSD: set capacity to 1024 GiB and the performance level to the default PL0. Local SSD: Specify /data01 as the mount directory. Warning The data01 directory has subsequent dependencies. Therefore, the directory cannot be modified or specified. If the physical host fails or the local disk is damaged, data loss may occur. Do not store data that must be retained long-term on the local disk, and make sure backups are in place.
Addon configuration
nvidia-device-plugin	(Required) The NVIDIA device driver. It allows the use of management add-ons for GPUs in containers.
rdma-device-plugin	(Required) The add-on manages RDMA network interface cards (NICs) and enables pod containers to use RDMA devices.
apig-controller	(Required) API Gateway controller provides the AI Gateway capability of cloud-native, which can complete the intelligent load balancing of the inference traffic according to different policies.
csi-ebs	(Required) It enables VKE clusters to use the standard CSI implementation for Elastic Block Storage (EBS)..
prometheus-agent	(Required) Volcengine Managed Service for Prometheus (VMP) monitoring add-on collects metrics data from the Kubernetes cluster to VMP.
apmplus-opentelemetry-collector	(Not supported yet) Collect OpenTelemetry data and Prometheus metrics, and send them to APMPlus.
apmplus-server-agent	(Not supported yet) It collects and sends monitoring data of services and hosts to APMPlus.
cr-credential-controller	(Recommended) It can pull Container Registry (CR) images without passwords, which simplifies deployment operations.
keda	(Recommended) An event-driven autoscaler for Kubernetes that enables autoscaling of inference services based on complex metrics.
vci-virtual-kubelet	(Recommended) It can deploy CPU-consuming workloads such as system add-ons by using Volcengine Container Instance (VCI), which eliminates the need for operation and maintenance (O&M) and does not occupy the computing resources of GPU nodes.

Procedure

Step 1: Deploy deepseek-r1-w4afp8-tensorrt-llm

This solution provides a w4a8-quantized DeepSeek-R1 model application based on the TensorRT-LLM framework. You can quickly deploy it by using a VKE application template.

In the left navigation bar, click Application center > Application template. Scroll to the bottom of the page, click More application templates.

Find deepseek-r1-w4afp8-tensorrt-llm, and click Deploy.

On the Deploy application page, configure the service parameters of deepseek-r1-w4afp8-tensorrt-llm.

Configuration item	Descriptions
Orchestration template
Application template	Select the Chart version of deepseek-r1-w4afp8-tensorrt-llm. We recommend that you select the latest version.
Parameter configuration	The configuration methods for deepseek-r1-w4afp8-tensorrt-llm. Click the Edit icon to view the configuration description of various parameters in the values.yaml file or edit the YAML file.
Name	Customize the application name according to the naming requirements prompted by the interface.
Deployment environment
Cluster	Select the VKE cluster created in Prerequisites.
Namespace	Select a namespace under the target cluster.
Protocol	Read and understand the agreement before selecting the agreement.

Click Confirm to start deployment.

The applications that are already deployed can be found on the Helm page. Select target project, cluster, and namespaces, find the applications already deployed based on the template deepseek-r1-w4afp8-tensorrt-llm, and click application name. Enter details page to view the basic information of the application, workloads, services, and other resources.

tip

The service named in the format <application name>-deepseek-r1-w4afp8-tensorrt-llm-httpsvc is the Service exposed by the application. You will need to reference this Service in later steps, such as route configuration and model verification.

On the StatefulSet page in the VKE cluster, view the load status of the application deepseek-r1-w4afp8-tensorrt-llm.

On the left navigation bar of the VKE console, select Cluster, and find the target cluster and click the cluster name.

On the management page of the target cluster, click Workload > StatefulSet. Then, search for the name of the application deepseek-r1-w4afp8-tensorrt-llm to view the load status.

Step 2: Configure routing

Configure model routing through APIG Ingress. APIG Ingress can function as a managed cloud-native gateway based on the Volcano Engine APIG, realizing high availability and scalability in Ingress traffic management that are required in cloud-native applications.

On the left navigation bar on the cluster management page, select Services and Ingresses > Ingress, and click Create Ingress. Use API Gateway to expose the model service externally in the cluster. The parameters mentioned below need to be configured as described. Other parameters can be configured by referring to Creating APIG Ingress through the console.

Configuration item	Description
Basic configuration
Namespace	Select and deploy the namespace of the application template deepseek-r1-w4afp8-tensorrt-llm, which is used to associate the application services that are exposed externally.
Ingress configuration
Ingress type	Select Cloud-native API gateway.
APIG specification settings
Gateway specifications	You can select Automatically create, or select Use existing APIG instances. tip When you are using the API Gateway to expose the model service in the clusters, we recommend that you configure the following parameters or features (Some parameters can only be configured in the APIG console, and cannot be configured in the VKE console): Instance specification: We recommend that you select 4c8g and two availability zones to achieve high availability by default. Bandwidth limit: This option is used to set the maximum bandwidth of the Classic Load Balancer (CLB) instance working with the APIG instance. If more bandwidth is required, you can specify a custom CLB instance on the APIG console. For details, see Adding access entrance. Circuit breaking: When some GPU instances malfunction, the common method is to take the faulty instances offline to eliminate failures. At the same time, it is necessary to retain the faulty instances for troubleshooting later. You can isolate the faulty instances by configuring a circuit breaking rule for the APIG instance. Request timeout: Timeout is not applied to API Gateway by default. We recommend that you keep the default settings. If timeout is needed, you can configure it on the API Gateway console. For details, refer to Advanced routing policy. Observability: Monitoring alert and log features are not turned on by default for the API Gateway instances created in the VKE console. If needed, we recommend you to turn on the log and monitoring alarm capabilities of the instances in the APIG console. Instance monitoring: This can help you to detect the unexpected anomalies in the whole system chain from the gateway entry level. For example: Unhealthy back end and back-end crashes will cause the APIG to return 503 error code and specific errors. Instance logs: You can view the request errors, request time consumption, and the allocation of requests in various Pods in the back end from the access logs.
Backend upstream	We recommend setting the Load Balancing Algorithm parameter to Round Robin. It is more applicable to the scenarios of upgrading back-ends if the back-end loads are approximately balanced.
Listener configuration
Protocol	Select a protocol as needed. If HTTPS is selected, you need to configure the certificate as described in the document APIG Ingress.
Forwarding configuration
Domain name	Fill in the Ingress domain name to be exposed. The A (Address) record of this domain name needs to be configured later with the public or private IP address generated when the Ingress is successfully created.
Service	Select a service with the format name of <application name>-deepseek-r1-w4afp8-tensorrt-llm-httpsvc that is created when you deploy the deepseek-r1-w4afp8-tensorrt-llm application template and set the port number to 80.

(Optional) Configure API Gateway authentication and authorization.

Create consumer: Select Consumer management on the left navigation bar and click Create consumer.

Generate an API-KEY: In the consumer list, click the name of the target consumer to go to the consumer details page. In the API Key information area, click Generate API Key.

In the pop-up dialog box, select Automatically create.

Click Confirm to generate API Key credential information.

Enable Key Auth add-on: In the left navigation bar, click Plugin Center. On the page that appears, select Key Auth and then click Create Plugin.

Effective level: Select Routing level: and configure the instance, service, and route to which the add-on belongs.

Authentication configuration: Select header and enter the text "Authorization" in the textbox on the right side to indicate that API Key will be included in the Authorization header of requests.

Consumer: select the consumer created in step 1.

Other options can remain as default.

Obtain Ingress address.

VIP: includes both public and private IP addresses.

Backend service: includes the backend service name and access domain name.

Configure domain name resolution.

To test the DNS in the local environment, you can implement a domain-to-IP resolution.

In the production environment, configure the access domain name of Ingress among the domain name providers, and ensure the A record of the Ingress access domain name has configured the public IP address or private IP address of Ingress.

Model verification

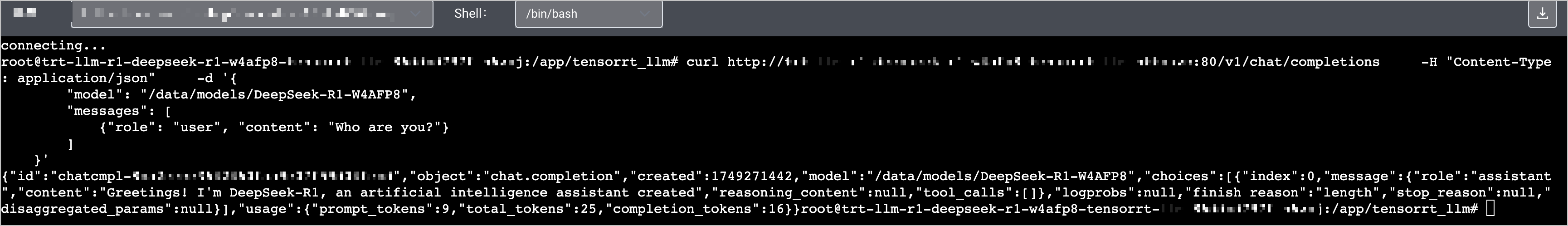

Method 1: Access through Service

After deploying the application template deepseek-r1-w4afp8-tensorrt-llm, associate the service created with <application name>-deepseek-r1-w4afp8-tensorrt-llm-httpsvc. The service provides an HTTP API endpoint (port 80). The endpoint can be called as you do with OpenAI APIs.

tip

Replace ****** in http://****** with the service endpoint associated and created when you are deploying the deepseek-r1-w4afp8-tensorrt-llm application.

The parameter content is what you want to type to chat with LLMs.

You can click the name of the Deployment in the Deployment area on the Helm application details page of the application, and redirect to the Deployment page, and click the console in the upper-right corner. Log in to the Pod of the application to implement API calls.

Method 2: Access through the APIG method

When enabling the authentication feature of the APIG, you need to add an authentication token in the request.

The following example is provided for reference.

tip

Replace example.com in the http://example.com with the Ingress backend service access domain name obtained in Step Two: Configure routing.

Replace eyJhbGciOiJSUzI****** with the API Key generated in Step 2: Configure routing.

The parameter content is what you want to type to chat with LLMs.
