csi-nas

The csi-nas add-on is a FileNAS driver implemented based on the CSI specification. This topic describes how to install and upgrade the csi-nas add-on and provides relevant considerations.

Add-on overview

csi-nas is a storage add-on provided by VKE for mounting FileNAS to Pods in clusters. It enables multiple Pods to simultaneously read and write the same shared filesystem.

As a ‌non-managed add-on, it runs on your cluster nodes and consumes a small amount of node-level compute resources. After the add-on is installed, the following Kubernetes resources will be automatically created in the kube-system namespace.

Resource name	Resource type	Resource description
csi-nas-controller	Deployment	The Pod for the FileNAS management controller. It is responsible for monitoring storage requirements (PVCs/PVs) within the cluster and interacting with FileNAS/EFS.
csi-nas-node	DaemonSet	The Pod for the FileNAS mount controller. It runs on each worker node in the cluster and is responsible for mounting FileNAS/EFS to the specified node directory.

tip

The preceding table only lists the main resources of the add-on, as well as resources that may be used when the add-on or the corresponding feature is configured. This helps you understand the main components of this add-on. Other resources, such as ConfigMap and Secret, related to the add-on are not described here. You should refer to the actual resources in the cluster.

Add-on versions

For information about the historical release records of the add-on, as well as new features and optimization descriptions for each version, see Add-on release records.

Install the add-on

In the left navigation pane, click Cluster. Click the name of the target cluster to go to the management page of this cluster.

In the left navigation pane, select Addons and click the Storage tab.

Move the pointer over the add-on card, click Deploy, and configure the add-on parameters.

Parameter	Description
Deployment method	This parameter is displayed only for clusters for which the vci-virtual-kubelet add-on is installed. The deployment method of the add-on. This parameter is fixed and cannot be modified.
Deployment mode	This parameter is displayed only for clusters for which the vci-virtual-kubelet add-on is installed. Specify the type of nodes on which the add-on is deployed. Valid values: Elastic Compute Service deployment: deploys the add-on on ECS nodes in the cluster. Volcengine Container Instance deployment: Deploys the add-on on a VCI with 2 vCPUs and 4 GiB specifications. This will incur extra fees. For a detailed description of fees, see VCI service billing.
Node health check port	Node health check port. The default is 9908. We recommend using a port number lower than 12000.
Node Label Selector	This parameter can be specified only when the Deployment form parameter is set to Elastic Compute Service deployment. After you enable this feature, you can specify node labels, and the core workloads of the add-on will be scheduled onto nodes with the specified labels.
Pod scheduling based on taints and tolerations	This parameter can be specified only when the Deployment form parameter is set to Elastic Compute Service deployment. After it is enabled, you can configure taint tolerations, allowing the core workloads of the add-on to be scheduled to nodes with the specified taints.
Controller Resource configuration	Specify the CPU and memory requests and limits for the controller resources of the add-on.
Node Resource configuration	Specify the CPU and memory requests and limits for the node resources of the add-on.

Click Confirm to finish configuration.

Upgrading add-ons

Known issues

For csi-nas update history, see csi-nas. If you use an earlier version of the add-on, the following issues may occur.

Issue description	Cause	Impacted version	Fixed in version
When the add-on is deployed on VCI, the permissions of the dynamic volume subdirectory are not 777.	In case of VCI-based add-on deployment, a subdirectory for the dynamic volumes is still created on the node. Because the default umask of the node is 0022, the permissions of the created directory are set to 0755.	< v1.2.7	v1.2.7
The directory is not a mount point, which causes the unmount operation to fail and the pod to enter Terminating state.	The mount-utils library from the Kubernetes community. If the directory in the umount command is not the mount point, an error is returned.	v1.2.3 v1.2.4	v1.2.5
The mount point is not available.	Force Umount causes other local mount points that mount the same remote NAS to become unavailable.	< v1.2.3	v1.2.3
The NFS version resolution fails.	None.	< v1.0.3	v1.0.3

Upgrade risks

The upgrade of add-ons, whether successful or unsuccessful, will not affect existing applications. But the ongoing tasks will be disrupted during the add-on upgrade because the related workloads will be recreated, causing the resource status to become not ready. After the add-on is upgraded, unfinished operations are automatically retried. You only need to wait until the resource status becomes Ready, and no manual intervention is required.

The following list contains actions that may be impacted during the add-on upgrade process:

Create PersistentVolumeClaims (dynamic volumes). Failed volume creation causes the PersistentVolumeClaim to remain unbound.

Delete PersistentVolumeClaims (dynamic volumes). Failed PersistentVolume deletion causes the PersistentVolumeClaim to be stuck in the Terminating state.

Create workloads. A failed volume mount operation causes the workload to enter the ContainerCreating state.

Delete workloads. A failed volume unmount operation causes the workload to enter the Terminating state.

tip

If your business application requires fast PersistentVolumeClaim binding and workload start, further evaluate the risks and upgrade the add-on during off-peak hours.

Procedure

Go to the add-on management page of the target cluster, and in the upper-right corner of the add-on card, click ... > Upgrade to upgrade to the latest version. For details, see Upgrading add-ons.

warning

In case of an upgrade failure, follow the error messages to fix it and try to upgrade the add-on again.

If you encounter issues during the upgrade process or want to upgrade to a specific version, contact presales support or submit a ticket to obtain technical support.

Check add-on status

After the add-on installation/upgrade is complete, confirm whether the add-on is working normally by using the console or the command-line tool kubectl.

Use the console

Use the kubectl CLI

In the left navigation bar, click Cluster. Click the name of the target cluster to go to the cluster management page.

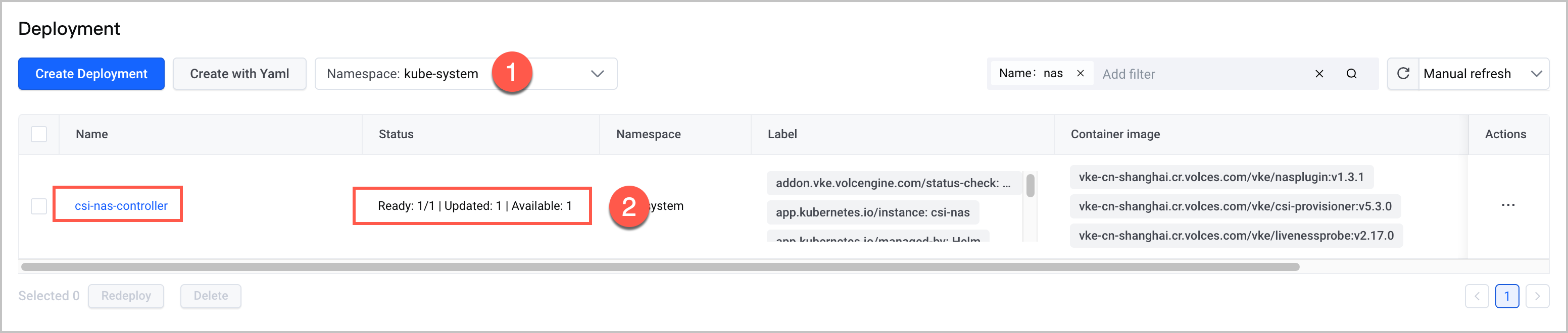

In the left navigation pane, click Workload > Deployment. On the Deployment page, check whether the Deployment csi-nas-controller in the kube-system namespace is in the Ready state. If all the Pods are ready, the upgrade is successful.

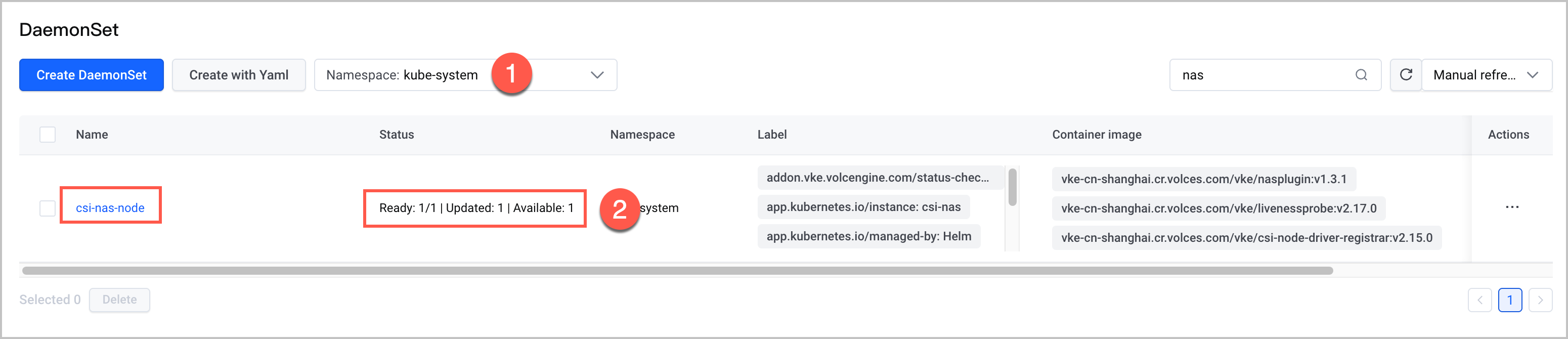

In the left navigation pane, click Workload > DaemonSet. Check whether the DaemonSet csi-nas-node in the kube-system namespace is in the Ready state. If all the Pods are ready, the upgrade is successful.

Monitoring and alerting

Add-on observability

The stability and performance of the csi-nas add-on directly affect its functionality and effectiveness. We recommend enabling add-on observability in your cluster to monitor add-on health in real time. For details, see CSI Storage observability.

After you enable add-on observability, you can view the preset observability dashboard for the add-on in the console. This dashboard primarily displays the running status of the csi-nas add-on and the NAS volume operation workflow. It includes Controller Pod availability, Node Pod availability, control plane operation backlog, control plane RPC call failures, node RPC call failures, node RPC latency, and NAS operation status. You can specify a custom time range for querying information and set the information refresh mode to manual refresh or automatic refresh.

In the left navigation pane of the cluster management page, click Monitoring center > Dashboard.

In the left dashboard list, select Storage service monitoring > NAS monitoring to view the monitoring dashboard.

Configuring alerts

VKE provides comprehensive cluster monitoring and alerting capabilities based on VMP. You can quickly create alert rule groups by using preset templates or configure custom alert rules by using PromQL statements based on your business requirements. You can also export preset templates in YAML format, adjust the rules, and save them as custom alert templates for reuse across multiple clusters. For details, see the following topics:

Configuring alerts through preset templates

Configuring alerts based on custom templates

Custom alert rules
